Fluke 789 [15/44] Battery life
![Fluke 789 [15/44] Battery life](/views2/1436000/page15/bgf.png)
ProcessMeter™
Basic Maintenance
11
F1
F2
anw037.eps

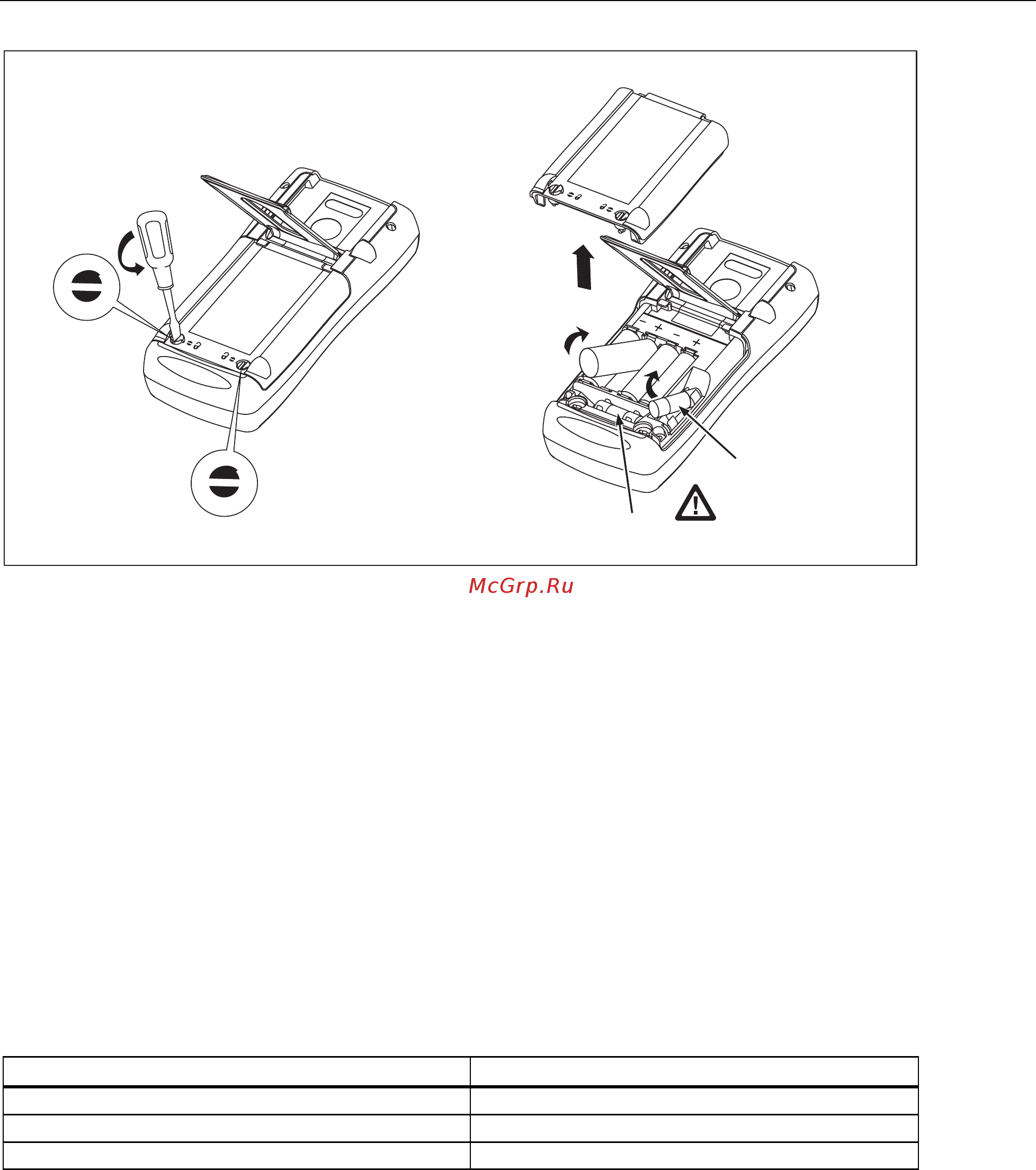

Figure 1. Replacing the Batteries and Fuses
Battery Life
Warning
To prevent possible electrical shock, fire, or personal injury, replace
the batteries when the low battery indicator shows.
The ProcessMeter is powered by four AA alkaline batteries.
Table 3 shows typical alkaline battery life. To preserve battery life:
• Use current simulation instead of sourcing when possible.
• Avoid using the backlight.
• Do not disable the automatic power-off feature.
• Turn the ProcessMeter off when not in use.
Table 3. Typical Alkaline Battery Life
ProcessMeter Operation Hours
Measuring any parameter 140
Simulating Current 140
Sourcing 12 mA into 500 Ω 10
