71X Series

Calibration Manual

• To avoid overpressure damage, do not apply pressure

that exceeds limits listed in the Users Manual for the

specific product.

• 717, 718, and 719 only: To avoid corrosion in the

pressure sensor, use the calibrator only with media

compatible with glass, ceramic, silicon, RTV, nitrile,

(Buna -N) type 303 stainless steel, and nickel.

• 718, 719 and 718Ex only: To avoid damage to the pump,

use with dry air and non-corrosive gases only. Use of

the optional Fluke 700-ILF In-Line Filter may help isolate

the pump from contaminates.

Hold in

fixed

position

kf01f.eps

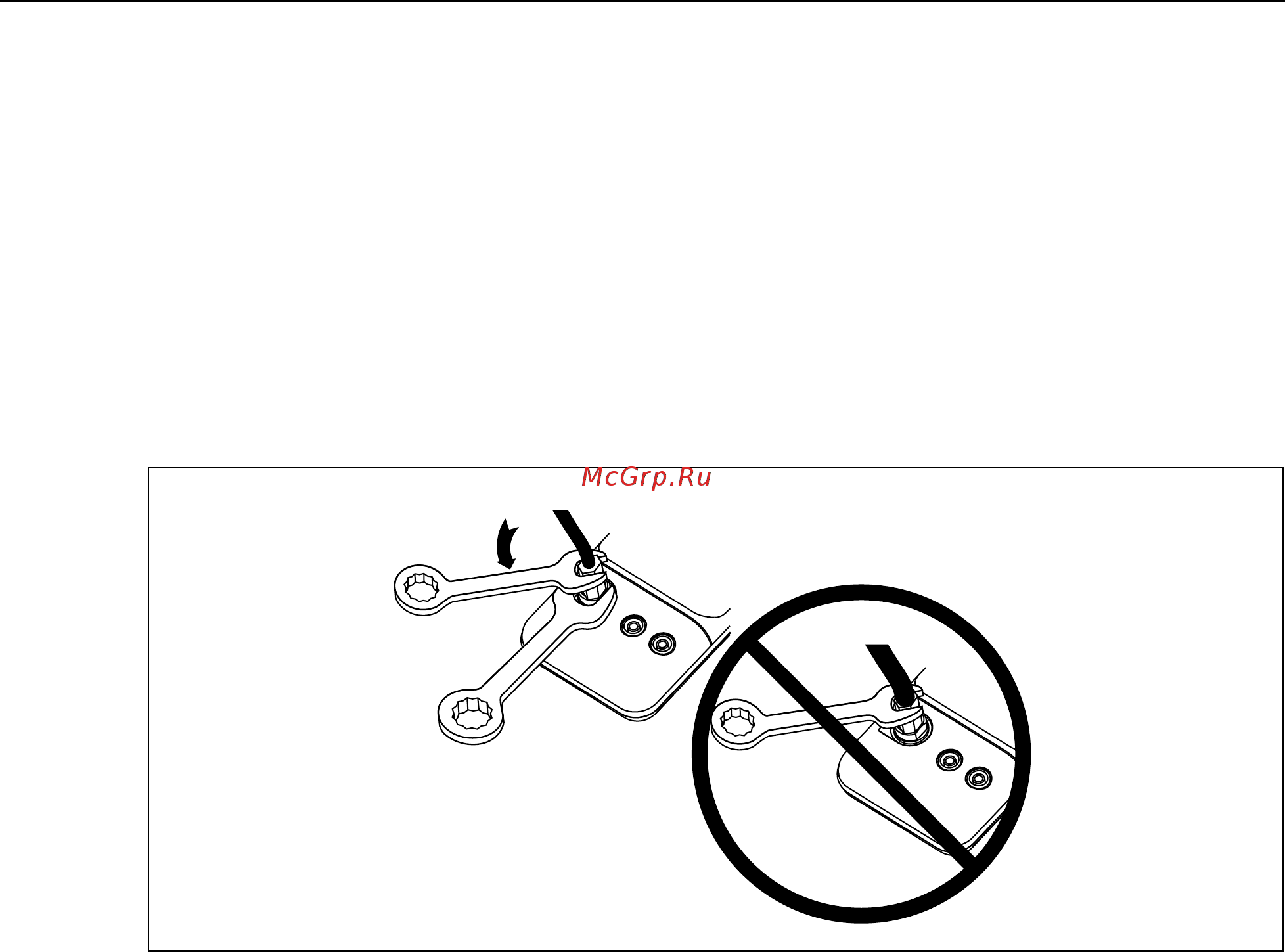

Figure 1. Proper Use of Tools (717, 718, and 718Ex Models)
