mA Calibrator
User-Replaceable Parts
5
Replacing the Battery
XW Warning
To avoid false readings, which could lead to
electric shock or injury, replace the battery
as soon as M (low battery indicator)
appears on the display.
Do not remove or install the battery within
the Ex-hazardous area.
Use only a single 9 V alkaline battery,
properly installed, to power the
mA Calibrator. See Table 2.
To replace the battery (refer to Figure 1 and Table 2):
1. Remove the test probes from the input signal.
2. Press D to turn the mA Calibrator OFF.
3. Remove the test leads from the input terminals.
4. Remove the red holster.
5. Lift off the battery door on the back of the mA
Calibrator as shown.
6. Remove the battery.
7. Insert the replacement battery and re-install the
battery door. Make sure it is securely in place.
8. Return the mA Calibrator to its red holster.
aqv07f.eps

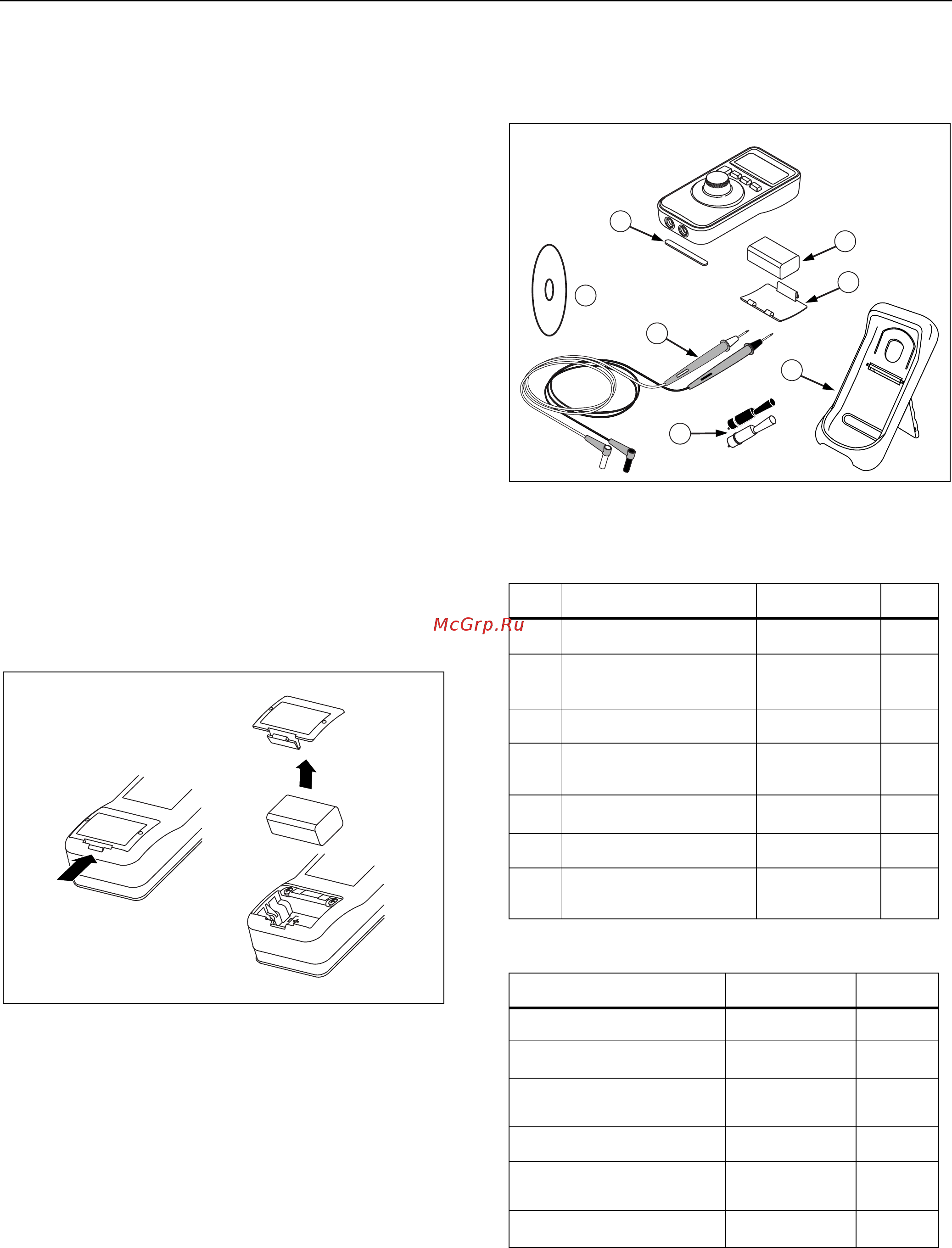

Figure 1. Replacing the Battery
User-Replaceable Parts
User-replaceable parts and accessories are shown in
Figure 2 and Table 1.
1
2
3
6
5
4
7
aqv10f.eps
Figure 2. User-Replaceable Parts
Table 1. User-Replaceable Parts
Item Part Description Fluke Part No. Qty.
A Non-skid foot 885884 1
B
Battery, 9 volt,
Alkaline
822270 or
see Table 2
1
C Battery door 665106 1
D Red holster, with bail 2040228 1
E Alligator clips AC72 1
F Test lead set TL75 1
G Users Manual on CD 2053979 1
Table 2. Approved Batteries
Battery Description Manufacturer Type
Alkaline, 9 volt Duracell 6LR61
Alkaline Ultra, 9 volt Duracell 6LR61
Professional Alkaline
Battery Procell, 9 volt
Duracell 6LR61
Alkaline Energizer, 9 volt Eveready 6LR61
Alkaline Power Line
Industrial Battery, 9 volt
Panasonic 6LR61
Alkaline, 9 volt Daimon 6LR61
