D-Link DHS-3226 [100/160] Q vlans

DGS-3224TGR Gigabit Ethernet Switch User’s Guide

802.1Q VLANs

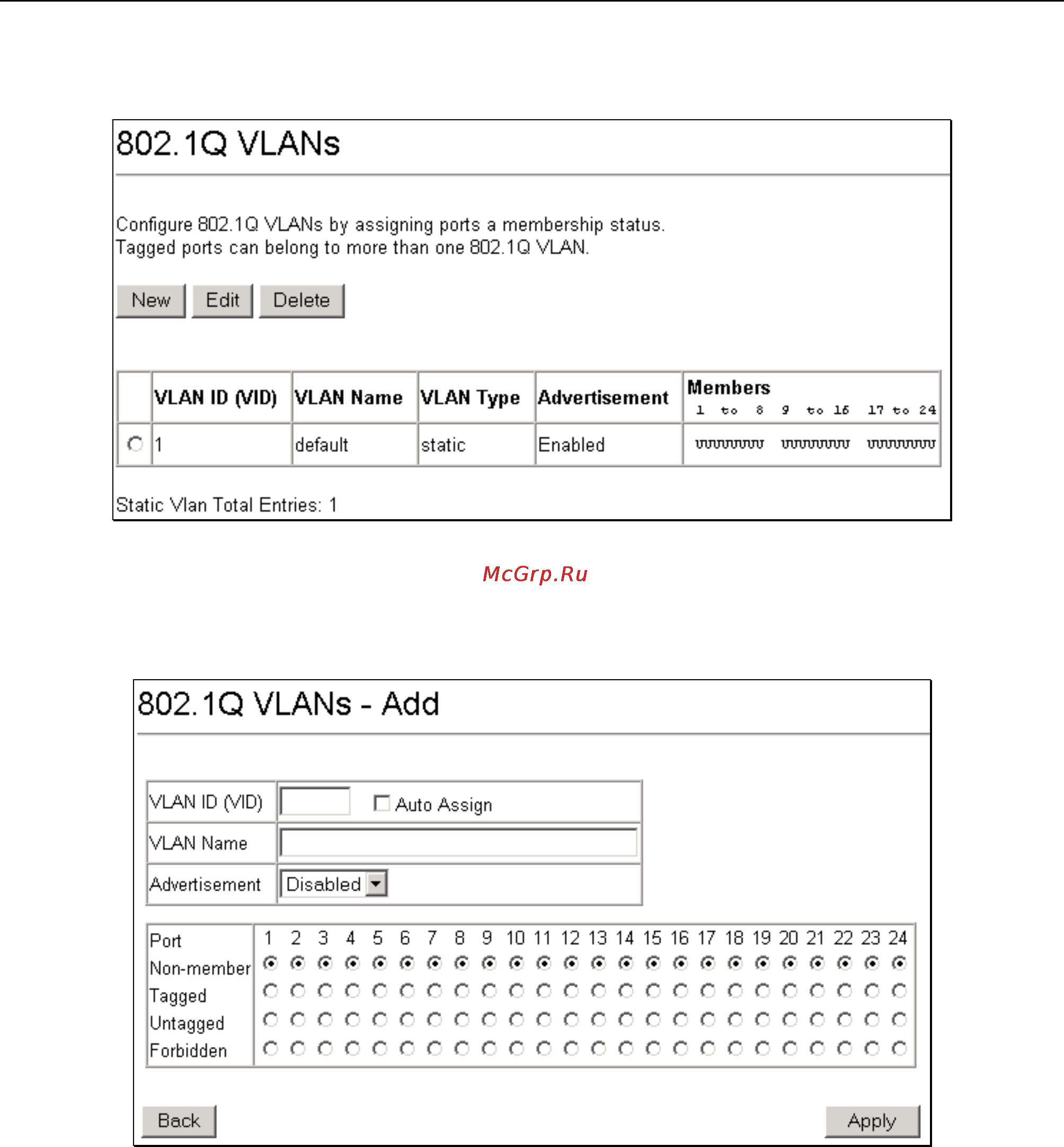

Figure 6- 75. 802.1Q VLANs window

To delete an existing 802.1Q VLAN, click the corresponding click-box to the left of the VLAN you want to delete from the

switch and then click the Delete button.

To create a new 802.1Q VLAN, click the New button:

Figure 6- 76. 802.1Q VLANs – Add window
