D-Link DHS-3226 [50/160] Traffic segmentation table

DGS-3224TGR Gigabit Ethernet Switch User’s Guide

Traffic Segmentation Table

The Traffic Segmentation feature prevents the traffic of a specific port on the switch from being transferred to other ports

on the switch. When an incoming packet from a specific port is received, it is only forwarded to the ports that have been

user-defined, even if it is a unicast packet.

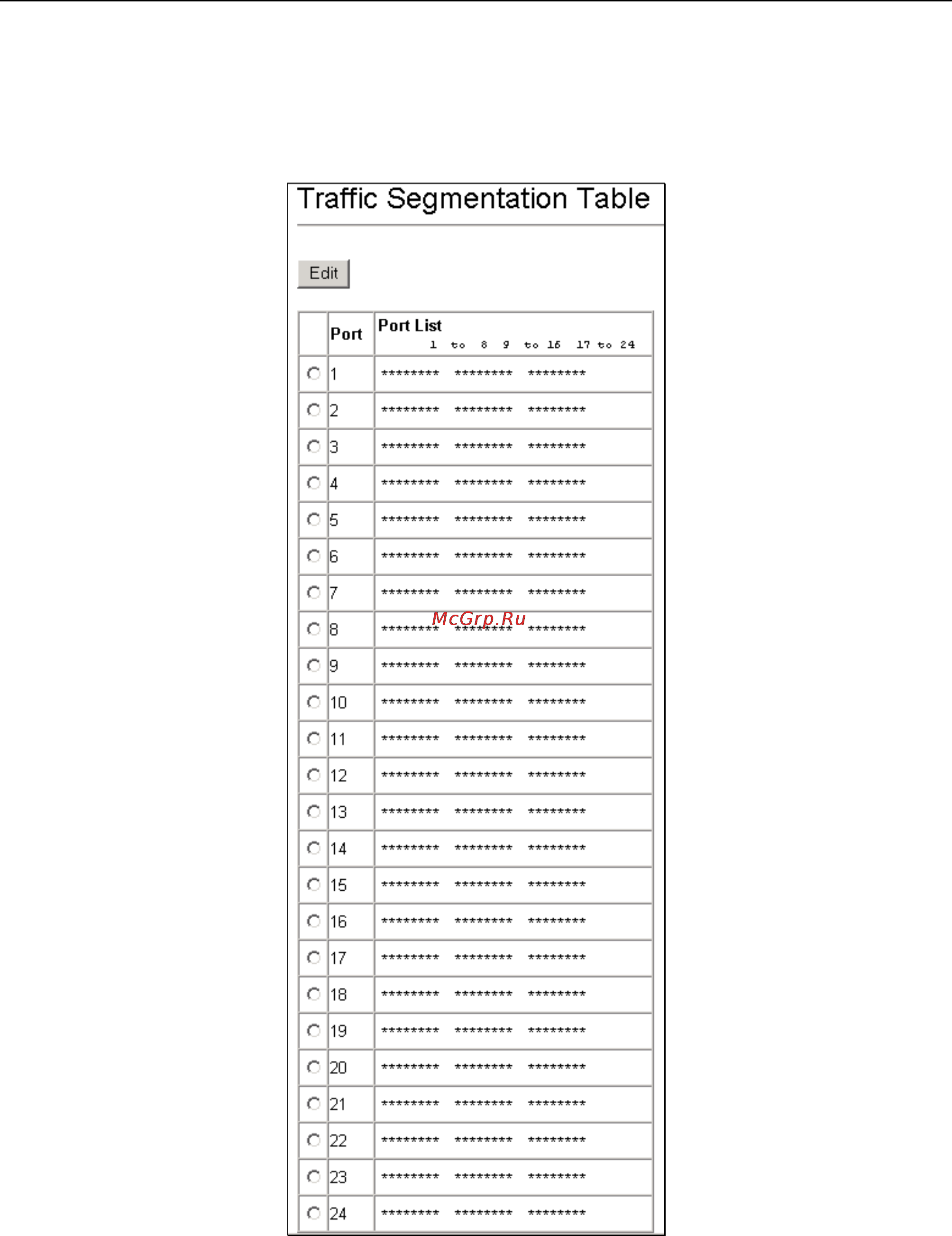

Figure 6- 7. Traffic Segmentation Table window
