D-Link DHS-3226 [47/160] Port configurations

DGS-3224TGR Gigabit Ethernet Switch User’s Guide

Port Configurations

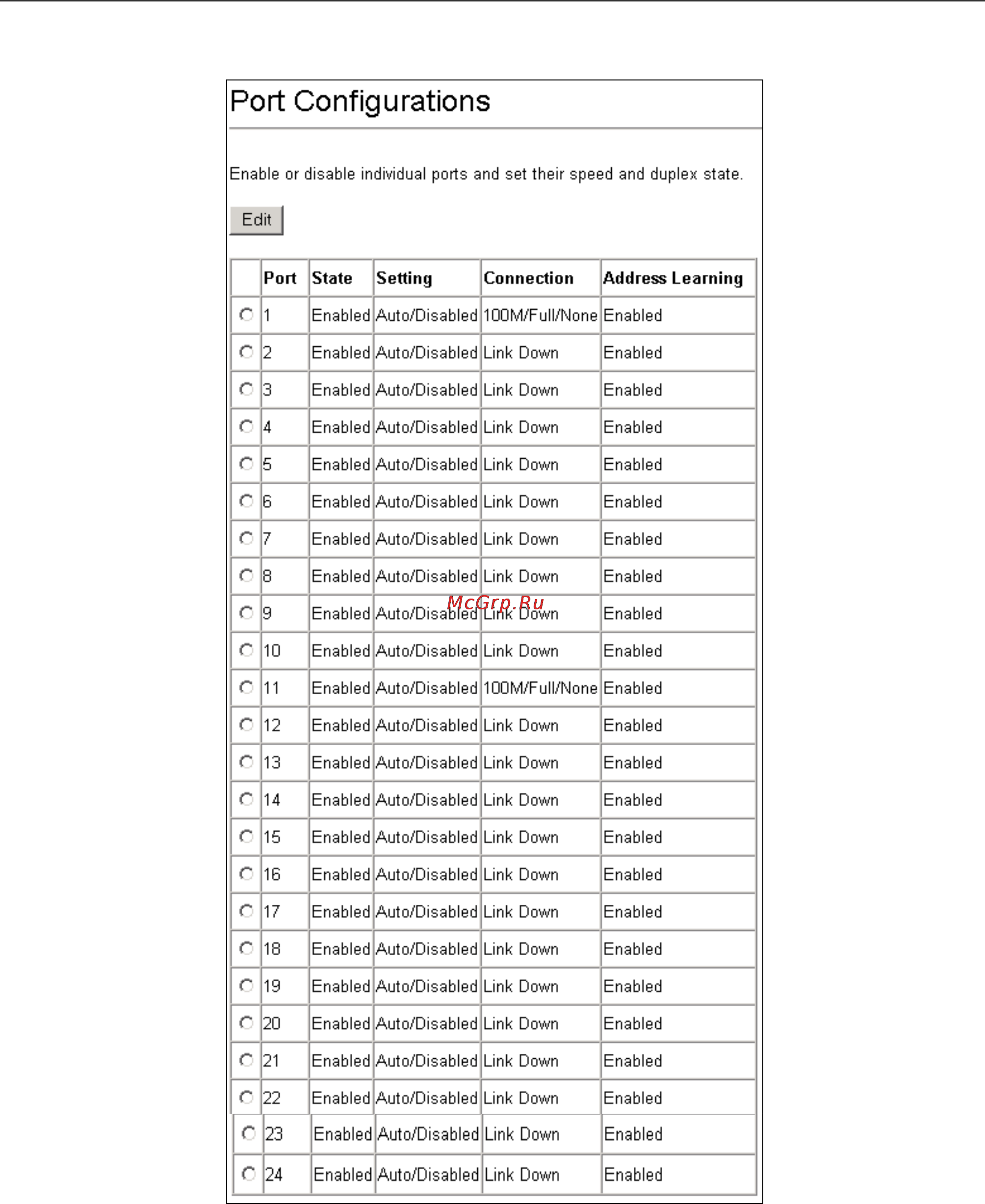

Figure 6- 4. first Port Configurations window

To make changes to port configurations, select a port and click Edit. The following Port Configurations window will

open:
