D-Link DES-3326S Layer 3 Switch
802.1X Port Settings
Existing 802.1X port settings are displayed and can be con figured using the menu below.

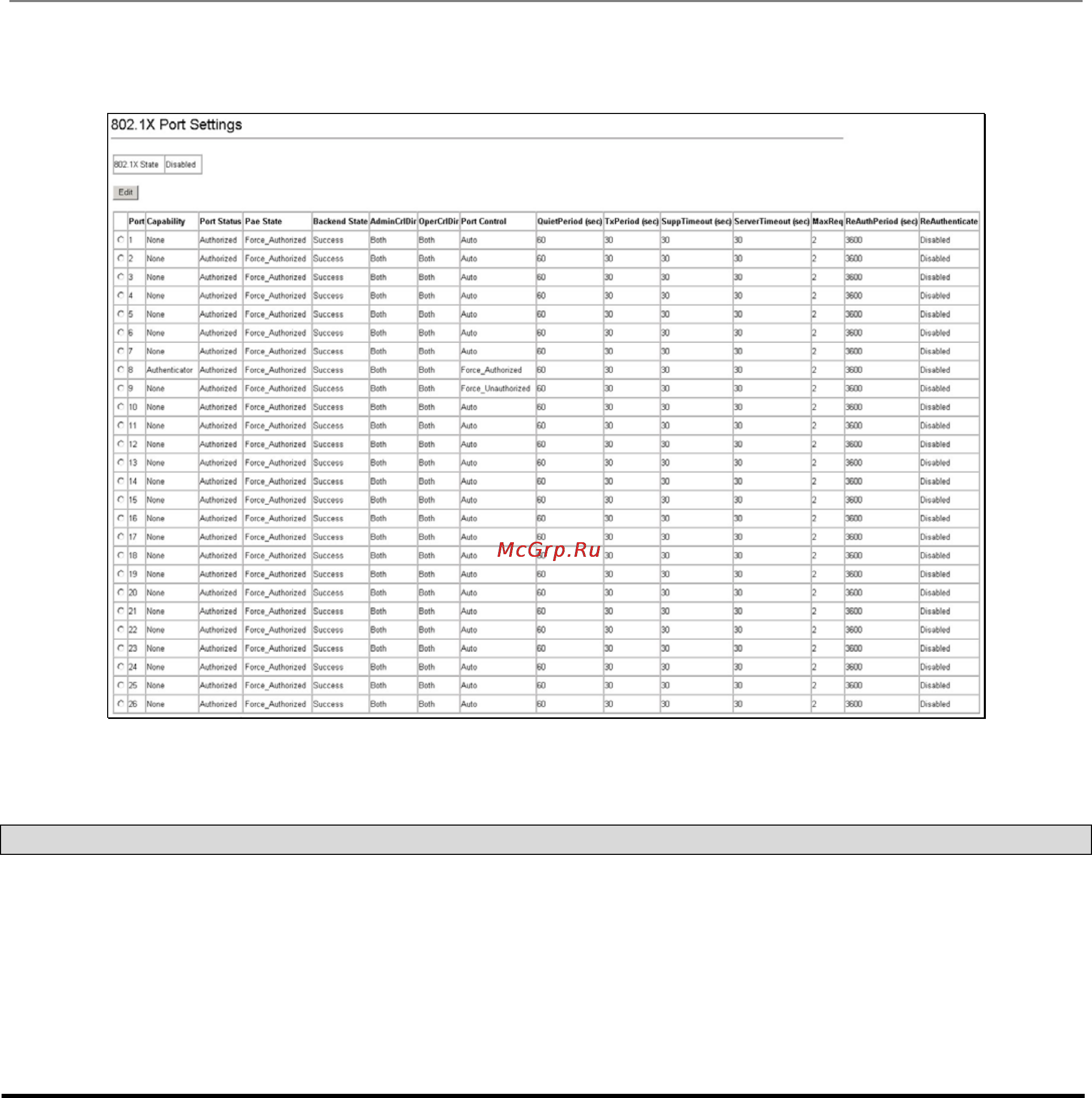

Figure 14- 18. 802.1X Port Settings
Click the selection button on the far left that corresponds to the port you want to configure and click the Edit button, a separate
menu will appear.
Parameter Description
Port status
Lists the current status of port, Authorized or Unauthorized.
PAE State
Displays the administrative control over the port’s authorization status. Force Authorized
forces the Authenticator of the port to become Authorized. Force Unauthorized forces
the port to become Unauthorized.
Backend State
Shows the current state of the Backend Authenticator.
OperCtlState
This displays whether a controlled Port that is unauthorized will exert control over
communication in both receiving and transmitting directions, or just the receiving
direction.
94
