D-Link DES-3326S Layer 3 Switch

Parameter Description

IP Address <0.0.0.0>

Allows the entry of an IP address that will be a static entry into the Switch’s

Routing Table.

Subnet Mask <0.0.0.0> Allows the entry of a subnet mask corresponding to the IP address above.

Gateway IP <0.0.0.0> Allows the entry of an IP address of a gateway for the IP address above.

Metric <1 >

Allows the entry of a routing protocol metric representing the number of routers

between the Switch and the IP address above.

Backup Status

Specify the route as Primary or Backup. If a single IP route is used, it is

unnecessary to change this. Designate a backup route if an alternate route is

desired. A backup IP route is sometimes called ‘”floating static route”.

Configure Static ARP

To make a static ARP entry, click the IP Forwarding folder and then the Static ARP link:

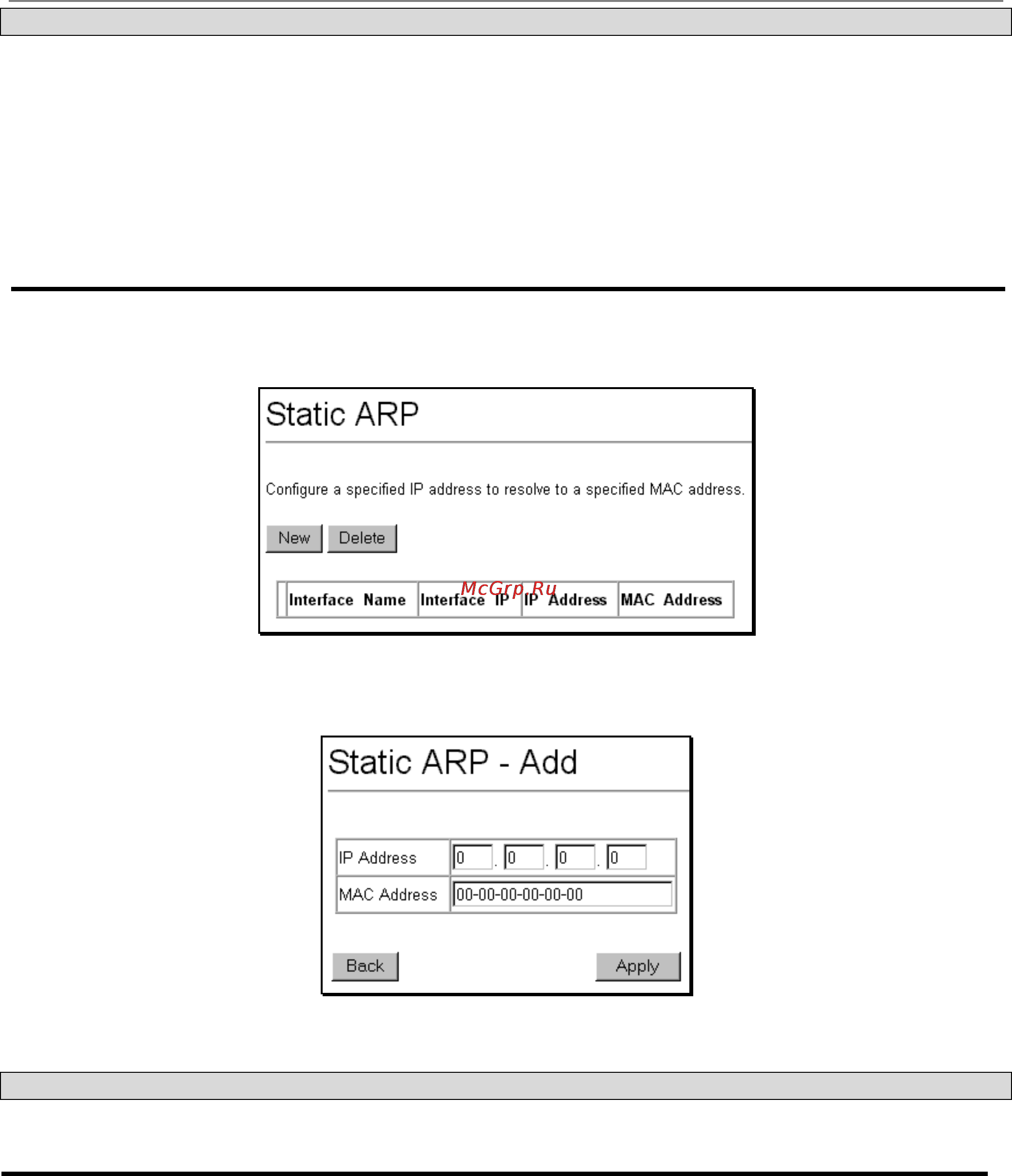

Figure 22- 3. Static ARP

To delete an existing static ARP entry, click corresponding click-box and then click the Delete button.

To add a new static ARP entry, click the New button:

Figure 22- 4. Static ARP – Add

The following fields can be set:

Parameter Description

IP Address The IP address of the ARP entry.

MAC Address The MAC address of the ARP entry.

154
