D-Link DES-3326S Layer 3 Switch
Router Ports
This displays which of the switch’s ports are currently configured as router ports. A router port configured by a user (using the
console or Web-based management interfaces) is displayed as a static router port, designated by S. A router port that is
dynamically configured by the switch is designated by D.
To browse the Router Ports, open the Network Monitoring folder and the Status subdirectory. Click on the Router Ports link
to see the following menu:

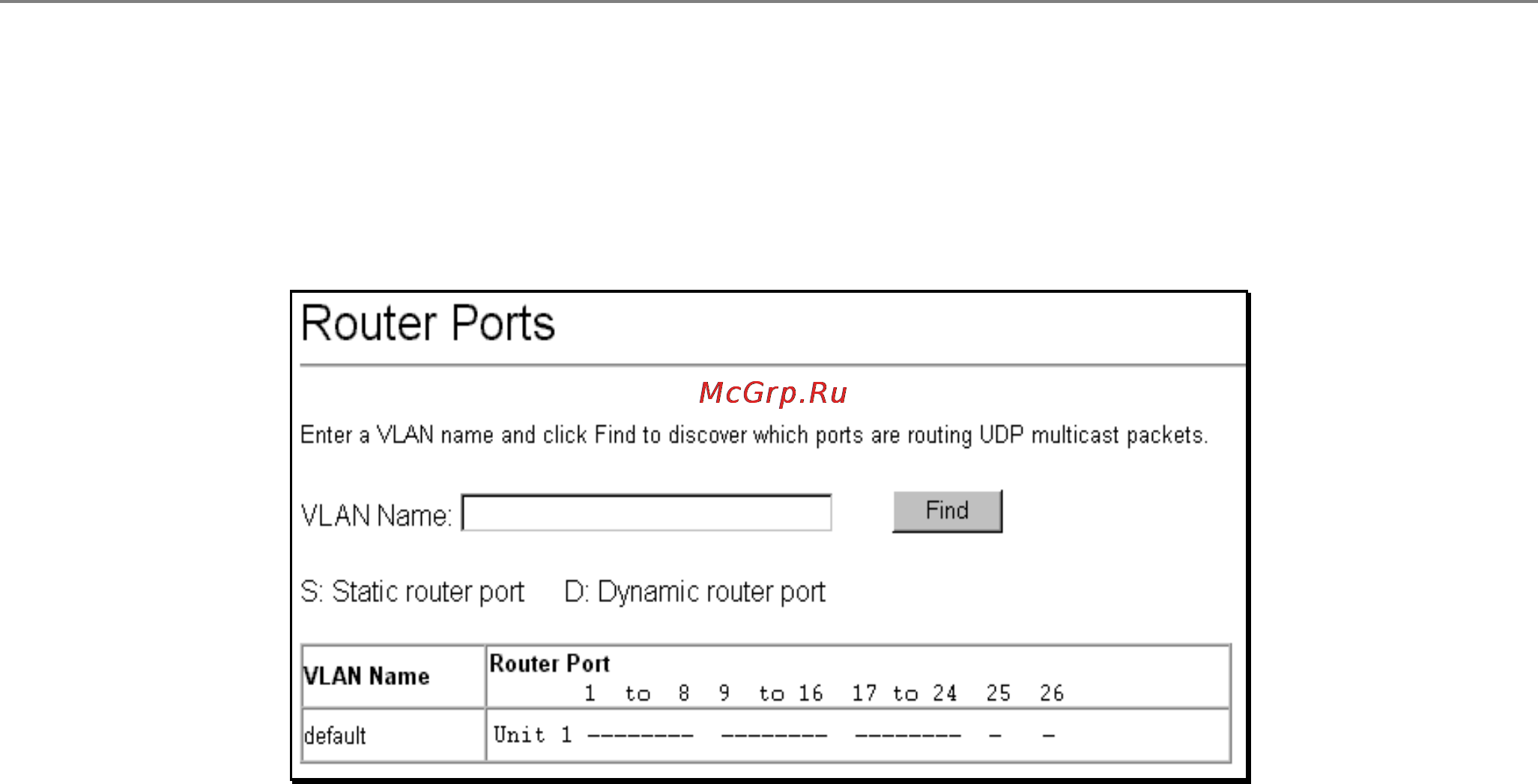

Figure 16- 16. Browse Router Port
S signifies a static router port, configured by the user.
D signifies a dynamically assigned router port, configured by the switch.
121
