D-Link DES-3326S Layer 3 Switch
Installing the Switch in a Rack
You can install the Switch in most standard 19-inch (48.3-cm) racks. Refer to the illustrations below.
1. Use the supplied screws to attach a mounting bracket to each side of the Switch.
2. Align the holes in the mounting bracket with the holes in the rack.
3. Insert and tighten two screws through each of the mounting brackets.

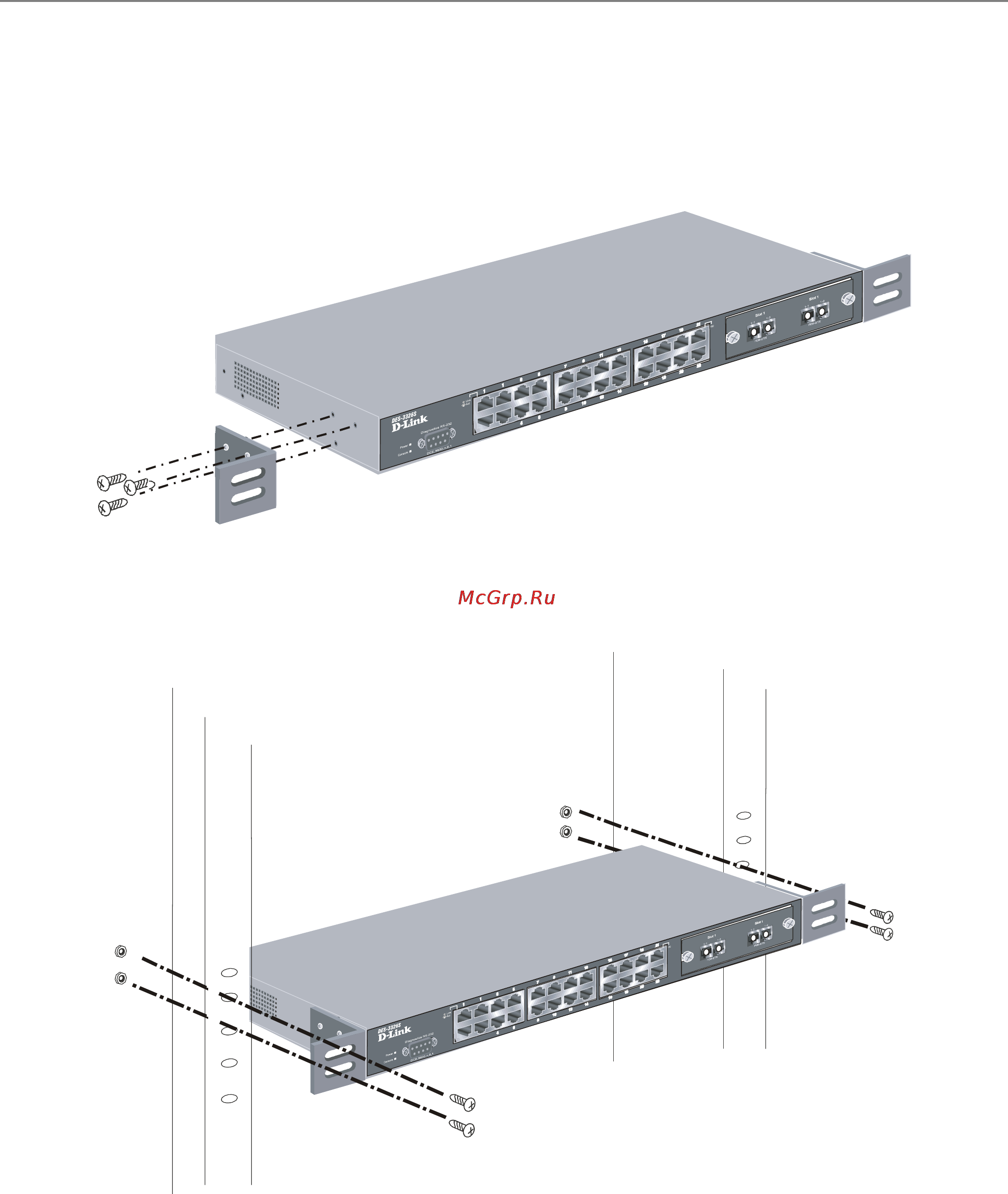

Figure 2-5. Attach mounting brackets
Figure 2-6. Install Switch in equipment rack
