D-Link DES-3326S Layer 3 Switch
Configure Ports
Click the Port Configurations link in the Basic Setup folder:
For stacked switch installations, it will be necessary to select the Unit (switch) according to its logical position in the stack.

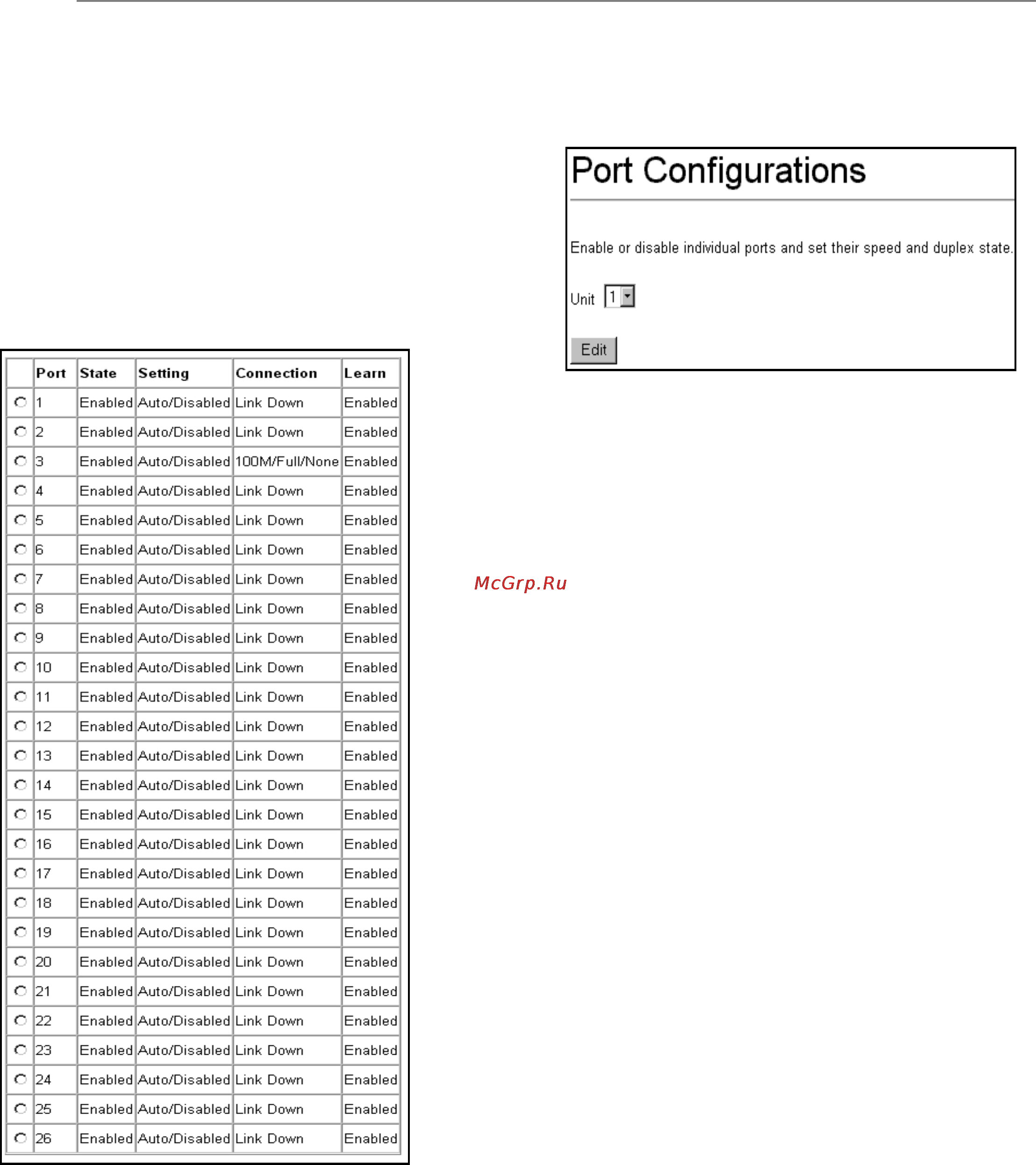

Figure 5- 1. Choose switch from stack
Click the radio button on the far left to select the port you want to configure and
click the Edit button. The basic settings for the Switch ports are summarized in
the table below.
Figure 5- 2. Port Configurations
46
