D-Link DES-3326S Layer 3 Switch

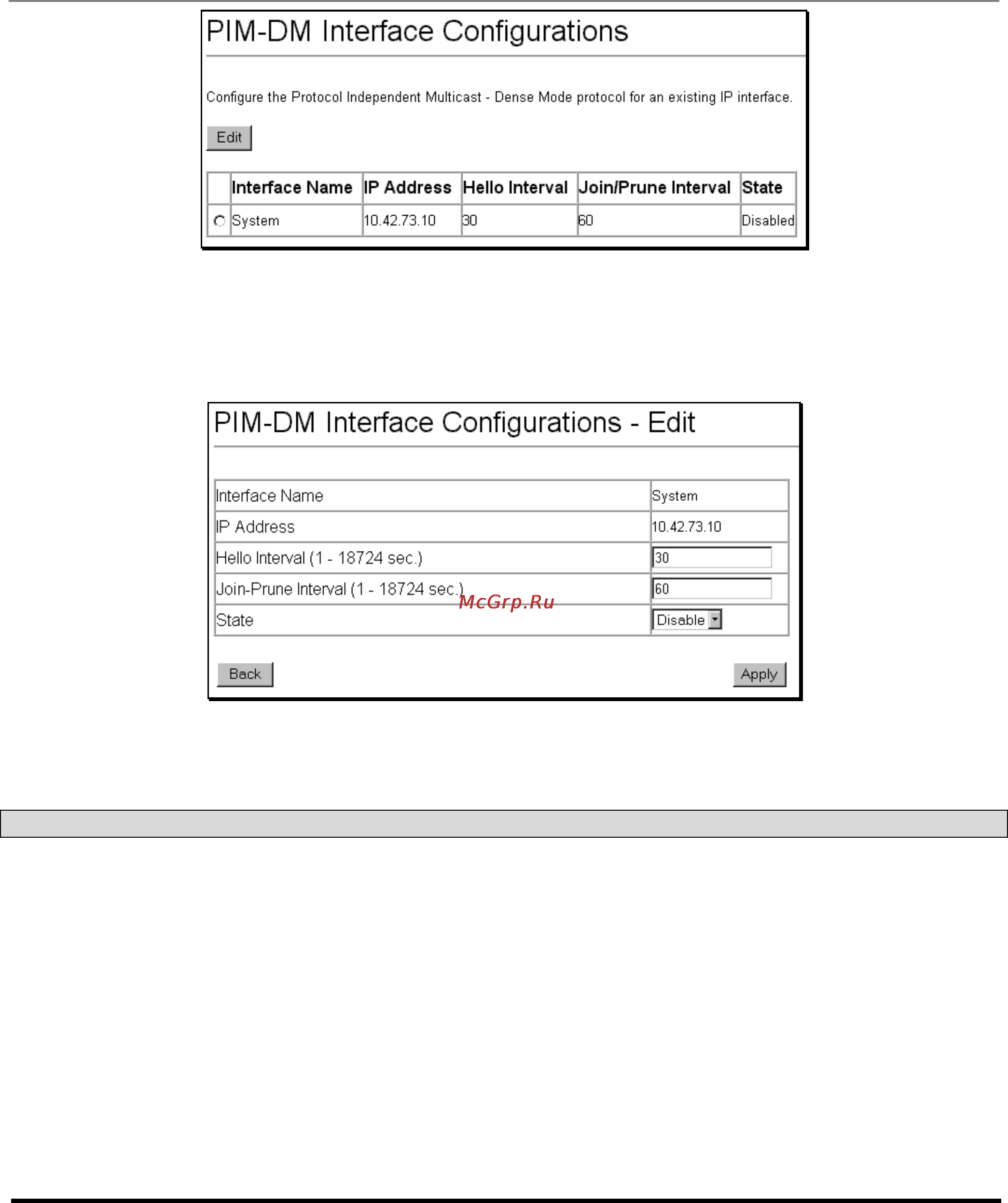

Figure 21- 8. PIM-DM Interface Configuration
The Protocol Independent Multicast − Dense Mode (PIM-DM) protocol can be individually configured for each IP interface on
the switch. The PIM-DM Interface Configurations dialog box will display all of the IP interfaces currently configured on
the switch.
To configure PIM-DM for a given IP Interface, click the corresponding click-box and then click the Edit button:
Figure 21- 9. PIM-DM Interface Configuration − Edit
Configure these parameters for PIM-DM interfaces:
Parameter Description
Interface Name
Allows the entry of the name of the IP interface for which PIM-DM is to be
configured. This must be a previously defined IP interface.
IP Address
Displays the IP address for the IP interface named above.
Hello Interval <30>
This field allows an entry of between 0 and 18724 seconds and determines the
interval between sending Hello packets to other routers on the network. The
default is 30 seconds.
Join/Prune Interval <60 >
This field allows an entry of between 0 and 18724 seconds. This interval also
determines the time interval the router uses to automatically remove prune
information from a branch of a multicast delivery tree and begin to flood
multicast messages to all branches of that delivery tree. These two actions are
equivalent. The default is 60 seconds.
State <Disabled>
This field can be toggled between Enabled and Disabled using the pull-down
menu, and is used to enable or disable PIM-DM for the IP interface. The default
is Disabled.
152
