D-Link DES-3326S Layer 3 Switch

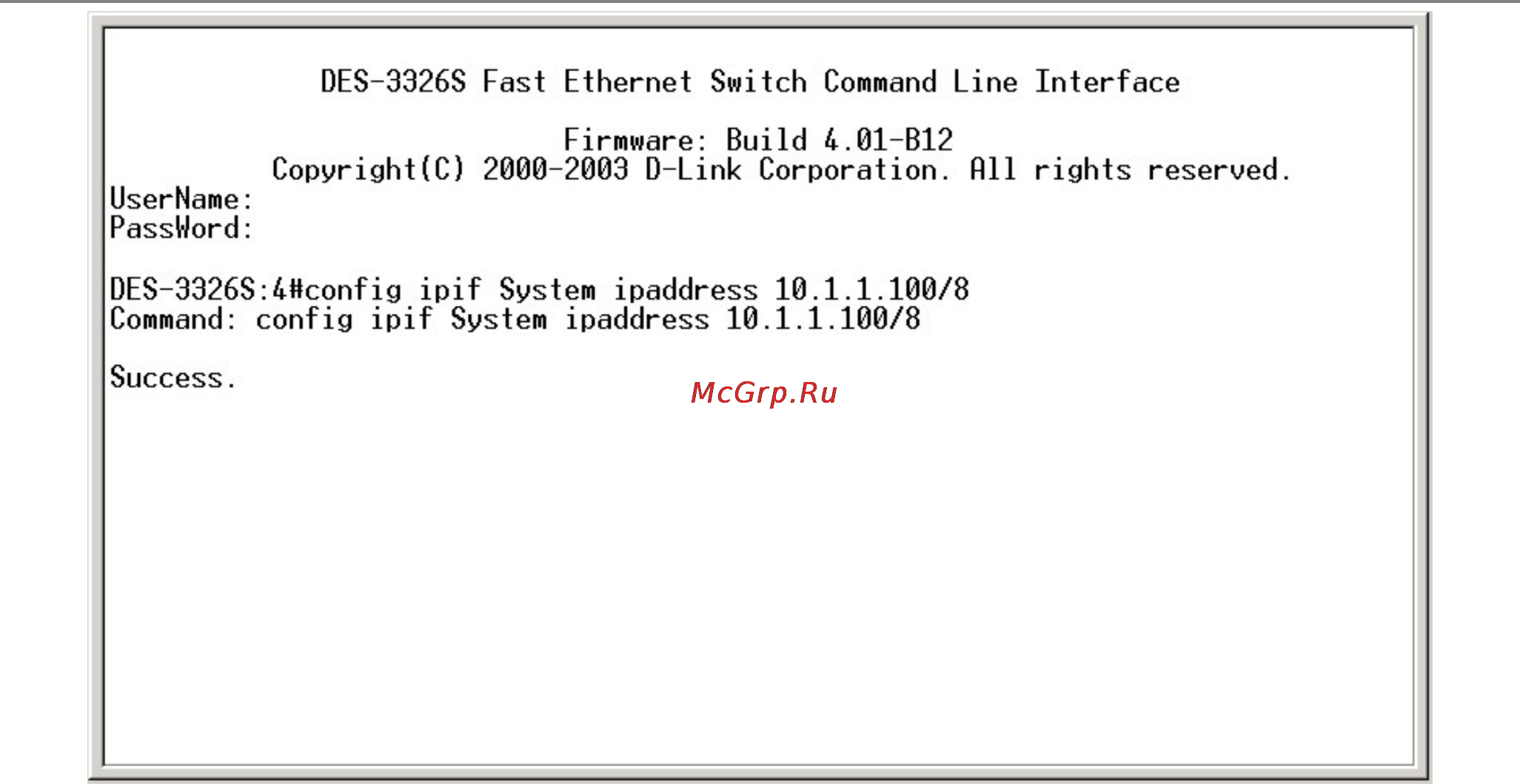

Figure 2 - 3. Assigning the Switch an IP Address
In the above example, the Switch was assigned an IP address of 10.10.1.100 with a subnet mask of 255.0.0.0. The system
message Success indicates that the command was executed successfully. The Switch can now be configured and managed via
Telnet and the CLI or via the Web-based management.
20
