D-Link DES-3326S Layer 3 Switch

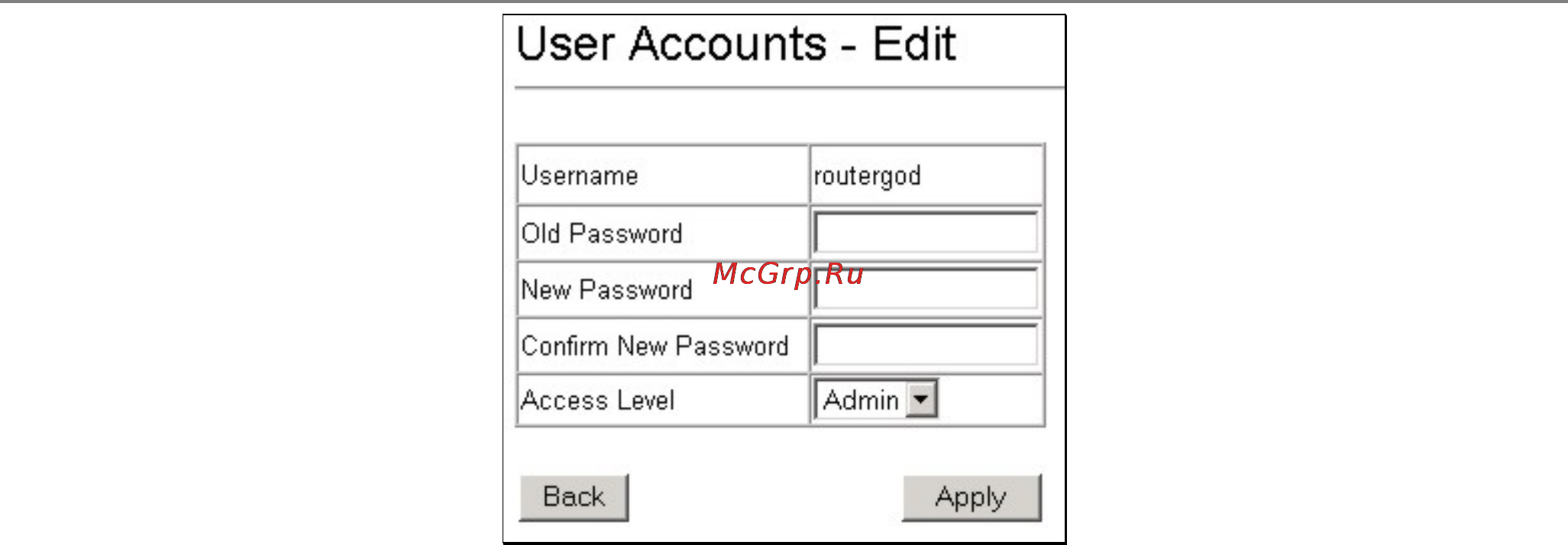

Figure 3- 6. User Accounts - Edit
To change the password, type in the New Password and retype it in the Confirm New Password entry field. Choose the level
of privilege (Admin or User) from the Access Level drop-down menu.
38
