D-Link DWL-2000AP [2/12] Connecting the dwl 2000ap wireless access point to your network

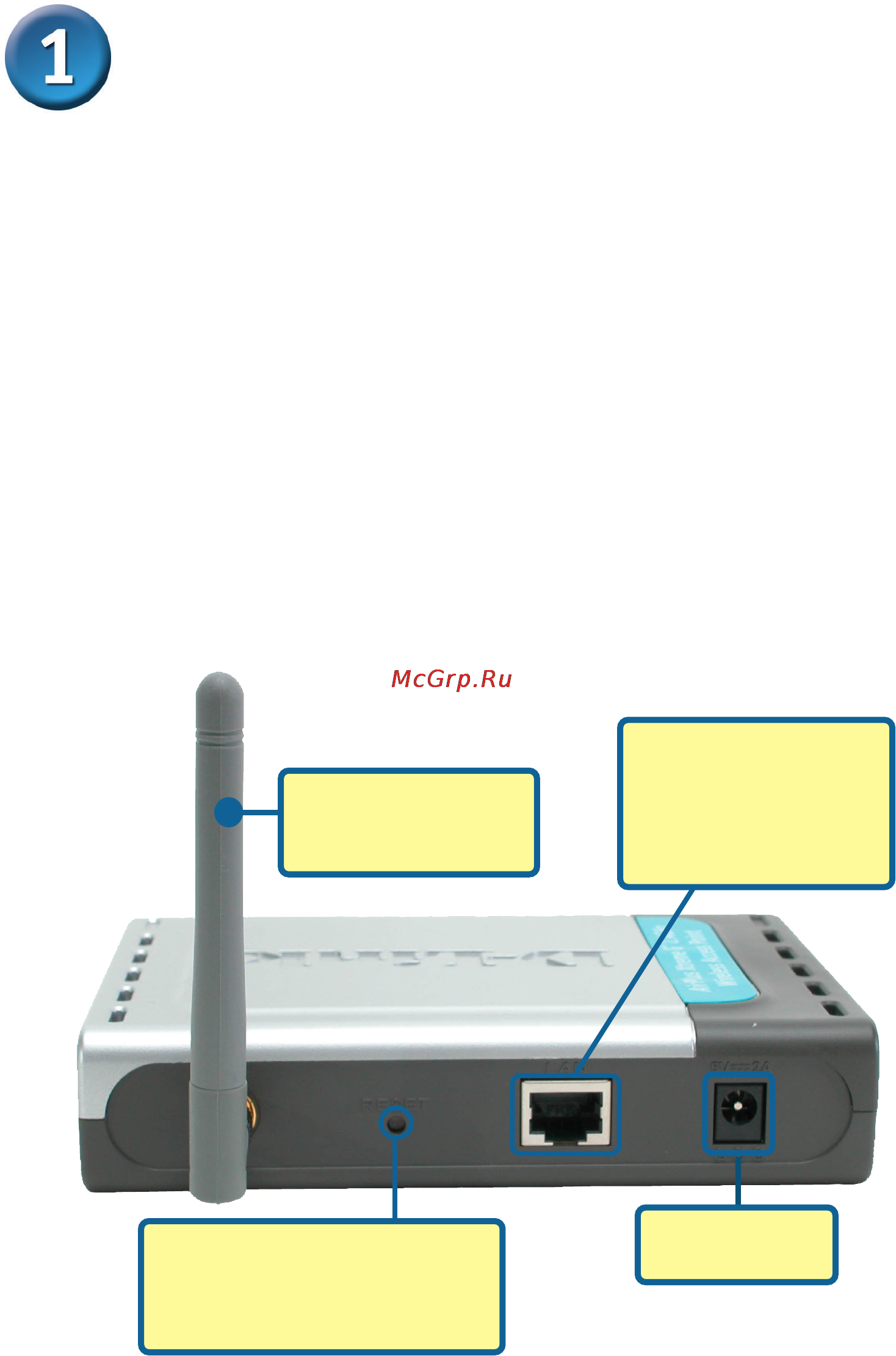

A. Receptor for

Power Adapter.

Reset Button

Pressing this button restores

the Access Point to its original

factory default settings.

B. LAN PORT 1 for

connecting the access

point to a switch on the

local network with an

ethernet cable

First, connect the power adapter to the receptor at the back panel of the

DWL-2000AP and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED will turn ON to indicate proper operation.

B. Insert one end of the cable to the Ethernet port on the back panel of the

DWL-2000AP and the other end of the cable to an Ethernet Broadband Router

(i.e., D-Link DI-604) or Switch (i.e., D-Link DSS-5+). Note: You also have the option

of connecting the DWL-2000AP directly to the computer that will be used for

configuration. The Link LED light will illuminate to indicate a proper Ethernet

connection. (Note: The Ethernet Port on the DWL-2000AP is Auto-MDI/MDIX.

Meaning you can use a straight-through or crossover-Ethernet cable to connect to

the Ethernet port on the DWL-2000AP.)

C. The DWL-G650 AirPlus Xtreme G Wireless Cardbus Adapter and the DWL-G520

AirPlus Xtreme G Wireless PCI Adapter will connect, out of the box , with the

DWL-2000AP, using their default wireless settings. Computers with 802.11b wireless

adapters can also connect to the DWL-2000AP.

Connecting the DWL-2000AP Wireless

Access Point to Your Network

C. Antennas Used to

wirelessly connect to

802.11b adapters.
