TL-WA730RE 150Mbps Wireless Range Extender User Guide

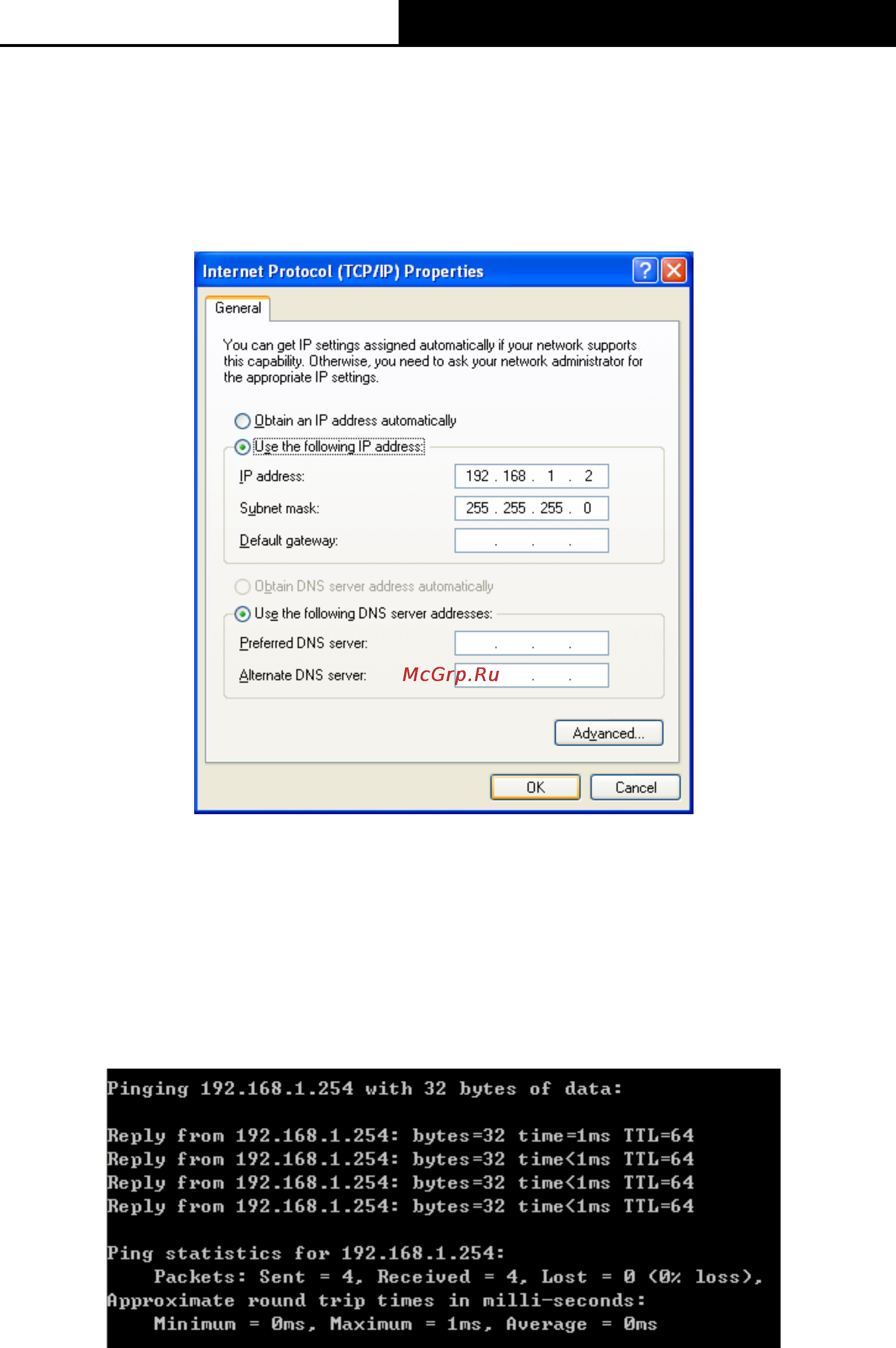

4. Configure the IP address manually.

1) Select Use the following IP address.

2) Enter 192.168.1.* (* is any integer between 1 to 253) into the IP address filed,

255.255.255.0 into the Subnet mask filed.

3) Click OK to keep your settings.

Figure 3-4

5. Verify the network connection between your PC and the AP via the Ping command. The

following example is in Windows XP Operating System.

1) Click Start > Run tab. Enter cmd in the filed and click OK.

2) Type ping 192.168.1.254 on the screen that displays and then press Enter.

If the result displayed is similar to that shown in Figure 3-5 below, the connection

between your PC and the AP has been successfully established.

Figure 3-5
