TL-WA730RE 150Mbps Wireless Range Extender User Guide

wireless network security, the default SSID is set to be TP-LINK_XXXXXX (XXXXXX

indicates the last unique six numbers of each Router’s MAC address). This value is

case-sensitive. For example, TEST is NOT the same as test.

¾ Region - Specifies the region where the wireless function of the AP can be used. Select your

region from the drop-down list. If your country or region is not listed, please contact your local

government agency for assistance.

) Note:

Restricted by local law regulations, version for North America does not have region selection

option.

¾ Channel - This field determines which operating frequency will be used. The default channel

is set to Auto, so the AP will choose the best channel automatically. It is not necessary to

change the wireless channel unless you notice interference problems with another nearby

access point.

¾ Mode - This field determines the wireless mode which the AP works on.

These settings are only for basic wireless parameters, for advanced settings, please refer to

Section 4.5: "Wireless."

4. Click the Next button. You will then see the Finish page.

Because there are something changed on the Wireless page, you will see the Finish page as

shown in Figure 3-14. Click the Reboot button to make your wireless configuration to take

effect and finish the Quick Setup.

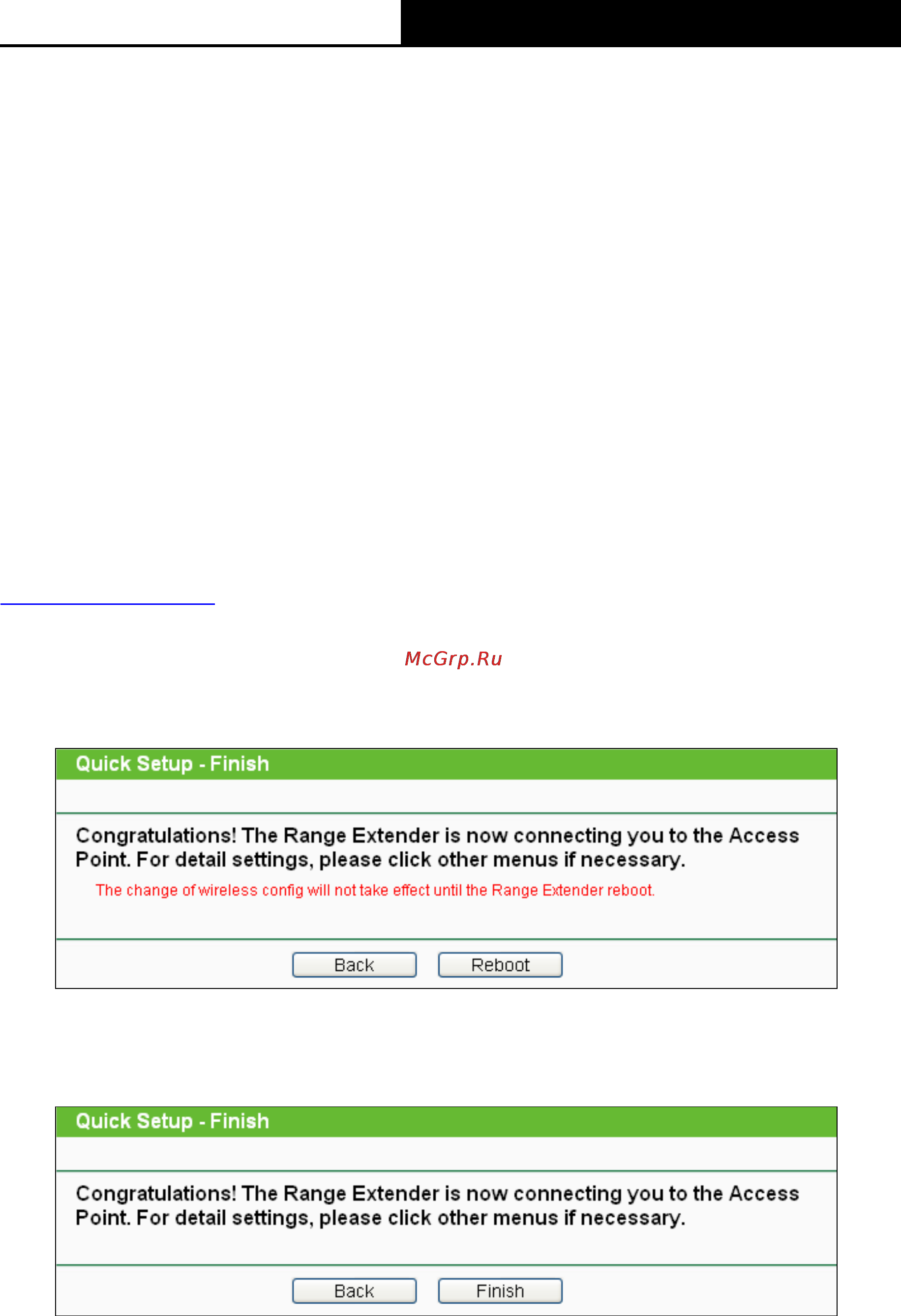

Figure 3-14 Quick Setup – Finish

If you don’t make any changes on the Wireless page, you will see the Finish page as shown

in Figure 3-15. Click the Finish button to finish the Quick Setup.

Figure 3-15 Quick Setup - Finish
