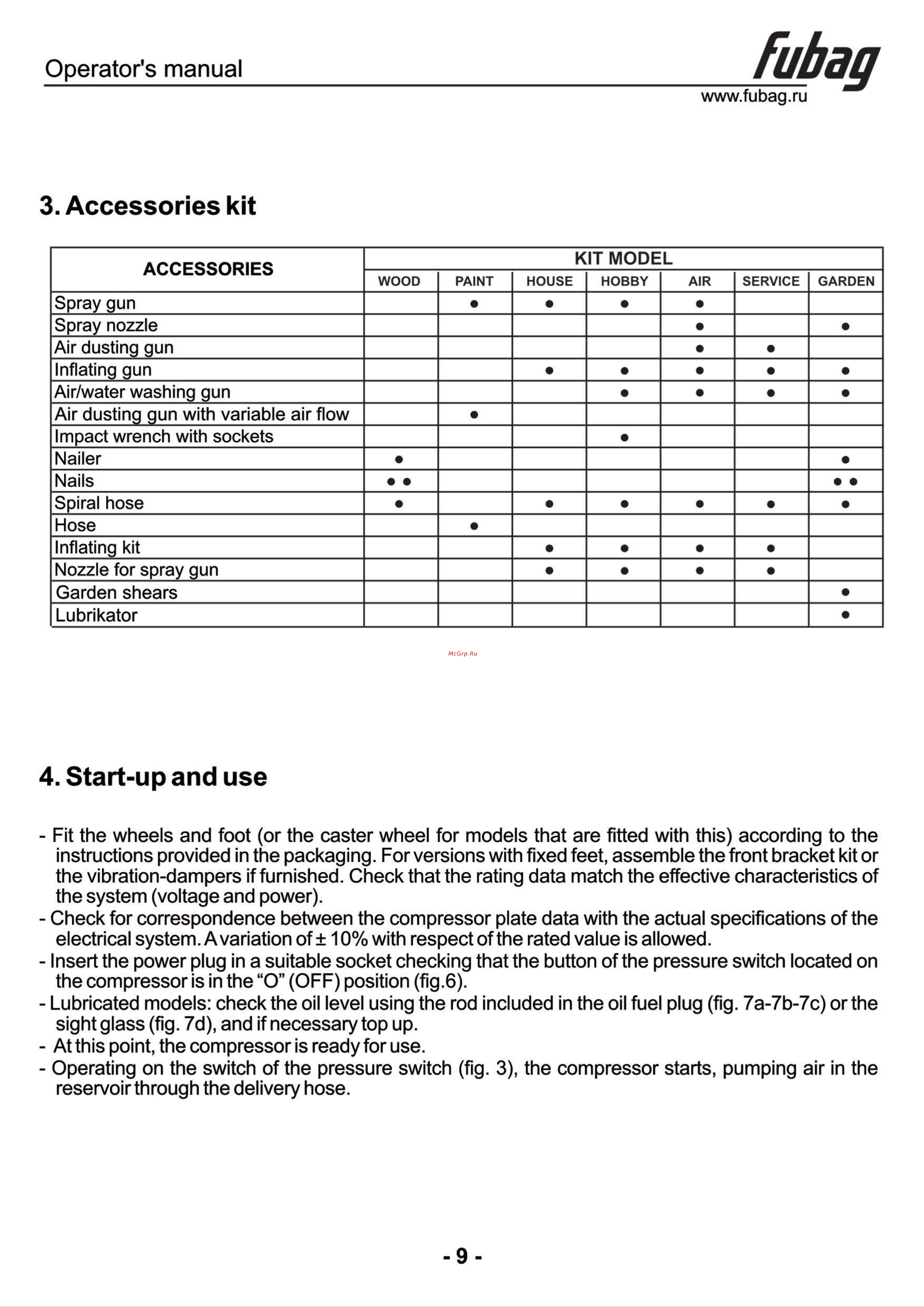

Fubag HOUSE MASTER KIT+ 5 предметов [10/21] Accessories kit
![Fubag HOUSE MASTER KIT+ 5 предметов [10/21] Accessories kit](/views2/1167653/page10/bga.png)
Содержание
- Operator s manual 1
- Инструкция по эксплуатации 1
- Operator s manual 2
- Page01 2
- Page02 3
- Page03 4
- Page04 5
- Operator s manual 6
- Page05 6
- Operator s manual 7
- Page06 7
- Safety operation 7
- Caution 8
- Not to do 8
- Operator s manual 8
- Page07 8
- Carefully ready these instructions before using the equipment and refer to this manual in case of doubts on its operation store all the documentation in place that can be handy for any user the employer undertakes to make sure users read and understand the entire manual before using the tool however during installation and use of the equipment the operator should use all of his experience and knowledge in order to avoid damages observe safety requirements and law regulations protecting your ears when using the equipment is mandatory since a long exposure to noise sources can cause serious sight and breathing damages to protect yourself from any foreign body moved by the airstream wear safety gloves if necessary wear safety gear and shoes suitable to the job to be performed do not wear loose clothes or with moving parts which can get cogged in the pneumatic tools moving parts tie back long hair since this manual refers to international standards we recommend to previously obtain informa 9
- Caution 9
- Operator s manual 9
- Page08 9
- Technical specifications 9
- Accessories kit 10
- Operator s manual 10
- Page09 10
- Start up and use 10
- Operator s manual 11
- Page10 11
- Tool operation and connection 11
- Maintenance 12
- Operator s manual 12
- Page11 12
- Operator s manual 13
- Page12 13
- Troubleshooting 13
- Warranty 13
- Warranty refer to defects of materials and components and do not refer to components subject to natural wear and maintenance work only machines cleaned from dust and dirt in original factory packing fully completed provided with instruction manual warranty card with fixed sales date with a shop stamp factory serial number and originals of sales and ware receipt issued by salesman are subjects of warranty within the warranty period the service center eliminate free of charge all detected production defects the manufacturer disclaims warranty and legal responsibilities if nonobservance of the instruction manual by user unqualified disassembling repair or maintenance of the machine as well does not bear responsibility for caused injury to persons or damages 13
- Page13 14
- Гиьад 14
- Инструкция по эксплуатации 14
- Правила безопасности 14
- Page14 15
- Важно 15
- Гиьад 15
- Запрещается 15
- Инструкция по эксплуатации 15
- Page15 16
- Важно 16
- Инструкция по эксплуатации 16
- Ключайте подачу сжатого воздуха только после подсоединения инструмента 16
- Технические характеристики 16
- Шрад 16
- Page16 17
- Инструкция по эксплуатации 17
- Комплектация 17
- Пуск и эксплуатация 17
- Page17 18
- Инструкция по эксплуатации 18
- Подключение и эксплуатация пневмоинструмента 18
- Page18 19
- Инструкция по эксплуатации 19
- Техническое обслуживание 19
- Page19 20
- Гарантийные обязательства 20
- Инструкция по эксплуатации 20
- Ирад 20
- Неисправности и способы их устранения 20
- Cover 2 21
Похожие устройства
- Fubag INTIG 200 AC/DC PULSE + горелка FB TIG 26 5P 4m Инструкция по эксплуатации
- Fubag AIR MASTER KIT + 6 предметов Инструкция по эксплуатации
- Fubag IW680 234л/мин 680н/м 6,3 бар 1/2 Инструкция по эксплуатации
- Fubag IW900 1/2u0022 880Нм 6,3бар Инструкция по эксплуатации
- Fubag WHS 210 DC Honda_220В Инструкция по эксплуатации
- Fubag WHS 210 DDC Honda_380-220В Инструкция по эксплуатации
- Fubag WS 230 DC ES 220В Инструкция по эксплуатации
- Fubag IW900 880Нм 6,3бар 1/2u0022 + набор головок кейс Инструкция по эксплуатации
- Fubag IW680 234л/мин 680н/м 6,3 бар 1/2 + набор кейс Инструкция по эксплуатации
- Fubag pws312 158л/мин 312н/м 6,3бар 1/2u0022 + набор кейс Инструкция по эксплуатации
- Uniel U-STR-1000/1 Инструкция по эксплуатации
- Uniel U-ARS-1500/1 09623 Инструкция по эксплуатации
- Electrolux ETB-16 BASIC Инструкция по эксплуатации
- Rexant RX-527 H белый Инструкция по эксплуатации
- Ballu S2 BHC-L 10-S06 Инструкция по эксплуатации
- Timberk AERO II TCH WS3 5MS Инструкция по эксплуатации
- Timberk AERO II TCH WS3 3M Инструкция по эксплуатации
- Ballu BHC-H10T12-PS Инструкция по эксплуатации
- Ballu BHC-M15T09-PS Инструкция по эксплуатации
- Ballu BHC-M20T24-PS Инструкция по эксплуатации
rubai Operator s manual www fubag ru 3 Accessories kit ACCESSORIES Spray gun Spray nozzle Air dusting gun Inflating gun Air water washing gun Air dusting gun with variable air flow Impact wrench with sockets Nailer Nails Spiral hose Hose Inflating kit________________________ Nozzle for spray gun Garden shears Lubrikator KIT MODEL WOOD PAINT HOUSE HOBBY AIR SERVICE GARDEN 4 Start up and use Fit the wheels and foot or the caster wheel for models that are fitted with this according to the instructions provided in the packaging For versions with fixed feet assemble the front bracket kit or the vibration dampers if furnished Check that the rating data match the effective characteristics of the system voltage and power Check for correspondence between the compressor plate data with the actual specifications of the electrical system A variation of 10 with respect of the rated value is allowed Insert the power plug in a suitable socket checking that the button of the pressure switch located on the compressor is in the O OFF position fig 6 Lubricated models check the oil level using the rod included in the oil fuel plug fig 7a 7b 7c or the sight glass fig 7d and if necessary top up At this point the compressor is ready for use Operating on the switch of the pressure switch fig 3 the compressor starts pumping air in the reservoir through the delivery hose 9
