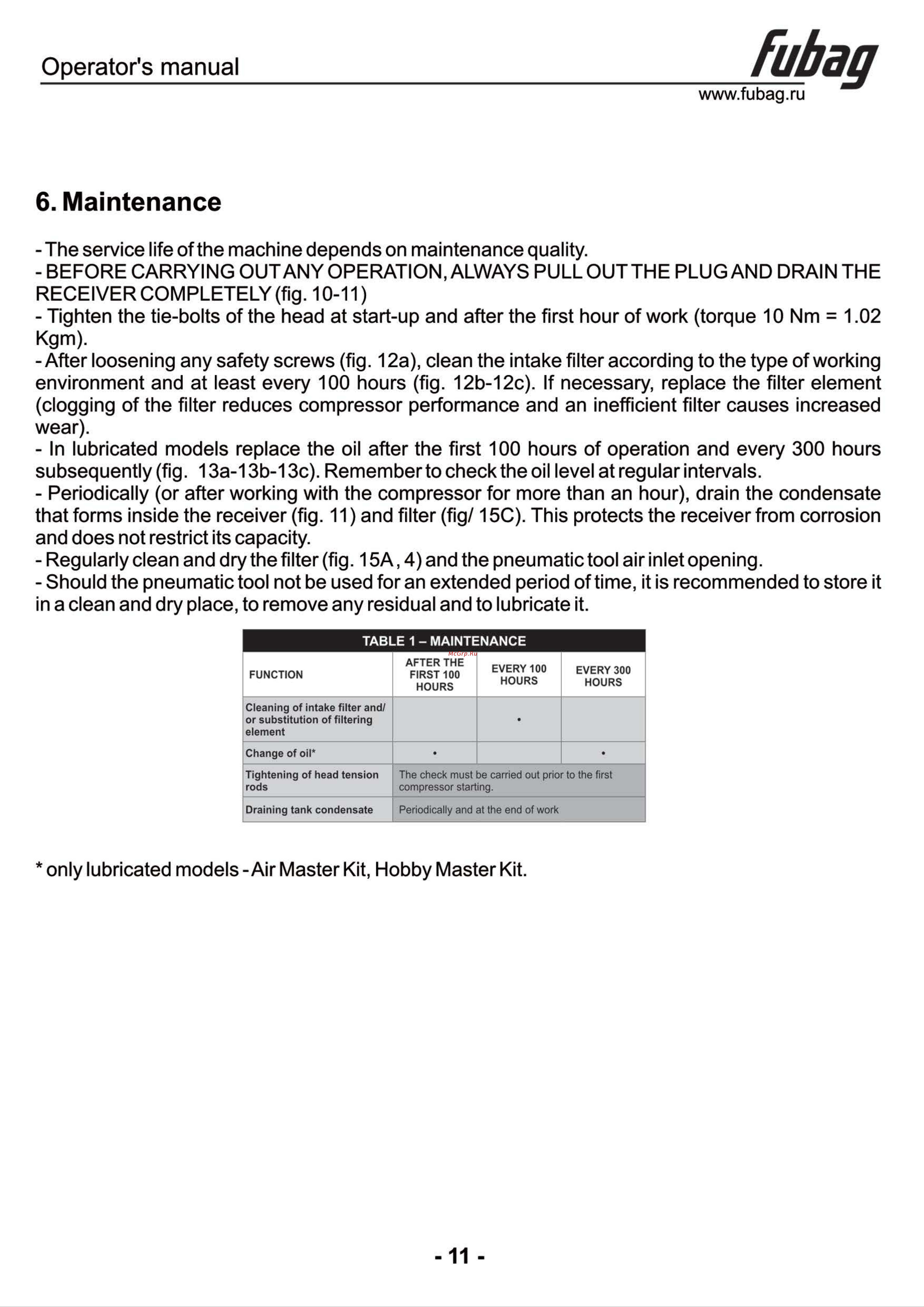

rubaq Operator s manual www fubag ru 6 Maintenance The service life of the machine depends on maintenance quality BEFORE CARRYING OUTANY OPERATION ALWAYS PULL OUT THE PLUG AND DRAIN THE RECEIVER COMPLETELY fig 10 11 Tighten the tie bolts of the head at start up and after the first hour of work torque 10 Nm 1 02 Kgm After loosening any safety screws fig 12a clean the intake filter according to the type of working environment and at least every 100 hours fig 12b 12c If necessary replace the filter element clogging of the filter reduces compressor performance and an inefficient filter causes increased wear In lubricated models replace the oil after the first 100 hours of operation and every 300 hours subsequently fig 13a 13b 13c Remember to check the oil level at regular intervals Periodically or after working with the compressor for more than an hour drain the condensate that forms inside the receiver fig 11 and filter fig 15C This protects the receiver from corrosion and does not restrict its capacity Regularly clean and dry the filter fig 15A 4 and the pneumatic tool air inlet opening Should the pneumatic tool not be used for an extended period of time it is recommended to store it in a clean and dry place to remove any residual and to lubricate it TABLE 1 MAINTENANCE FUNCTION AFTER THE FIRST 100 HOURS EVERY 100 HOURS EVERY 300 HOURS Cleaning of intake filter and or substitution of filtering element Change of oil Tightening of head tension rods The check must be carried out prior to the first compressor starting Draining tank condensate Periodically and at the end of work only lubricated models Air Master Kit Hobby Master Kit 11
