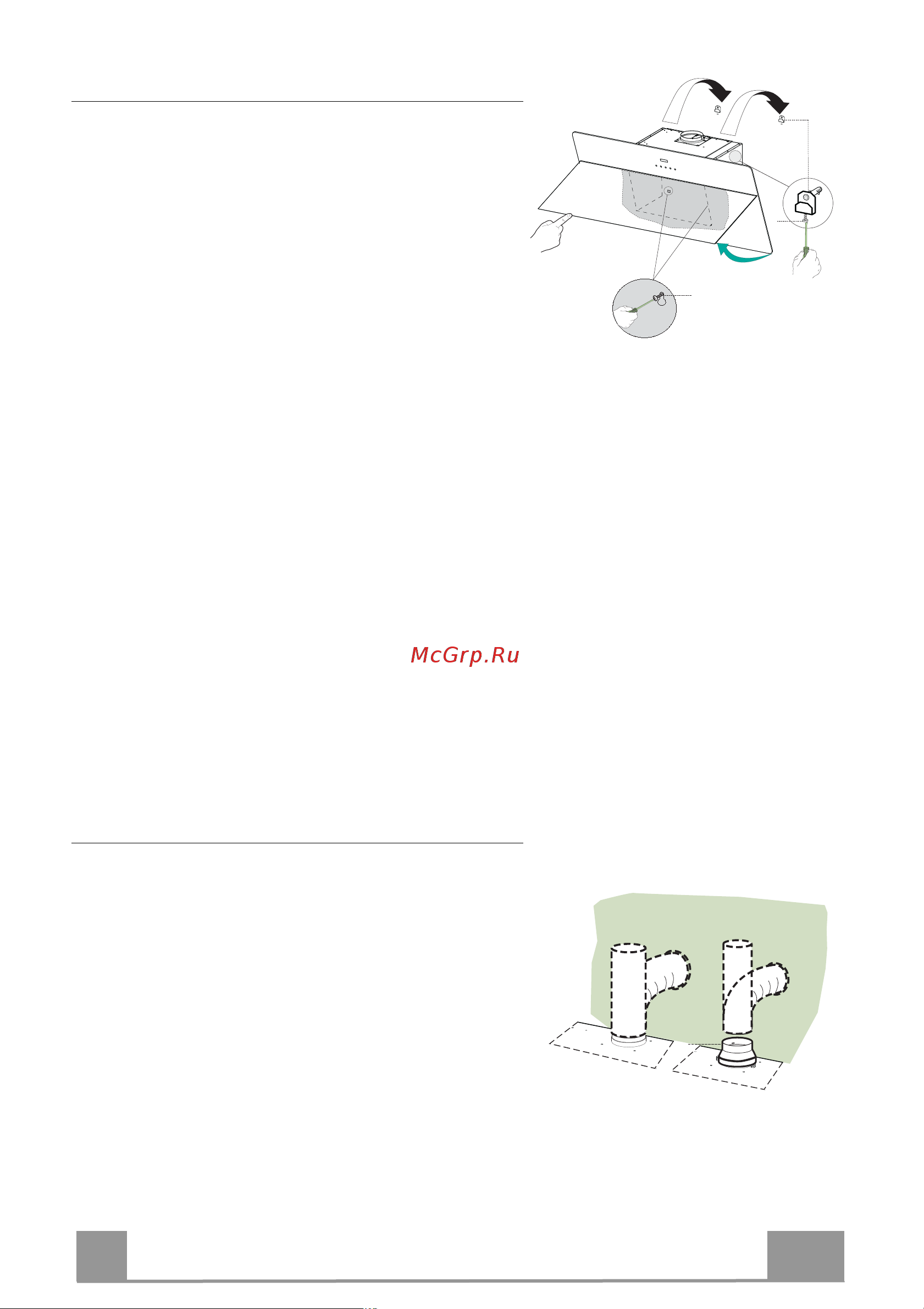

Fitting the hood body

• Open the doors/the door (See section Open Panels).

• Remove the Metal grease filters using the handles

provided.

• Adjust the two screws Vr, in the brackets 11a, so that

they are at the start of their travel.

• Hook the hood body to the two brackets 11a.

• From the inside of the hood body, turn screws Vr to

level the hood body itself.

• Fasten the safety screw 12a.

• Close the doors/the door again.

12a

11a

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to

the chimney using either a flexible or rigid pipe ø 150

or 120 mm, the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert

the reducer flange 9 on the hood body outlet.

• Fix the pipe in position using sufficient pipe clamps

(not supplied).

• Remove possible charcoal filters.

ø 150

ø 120
