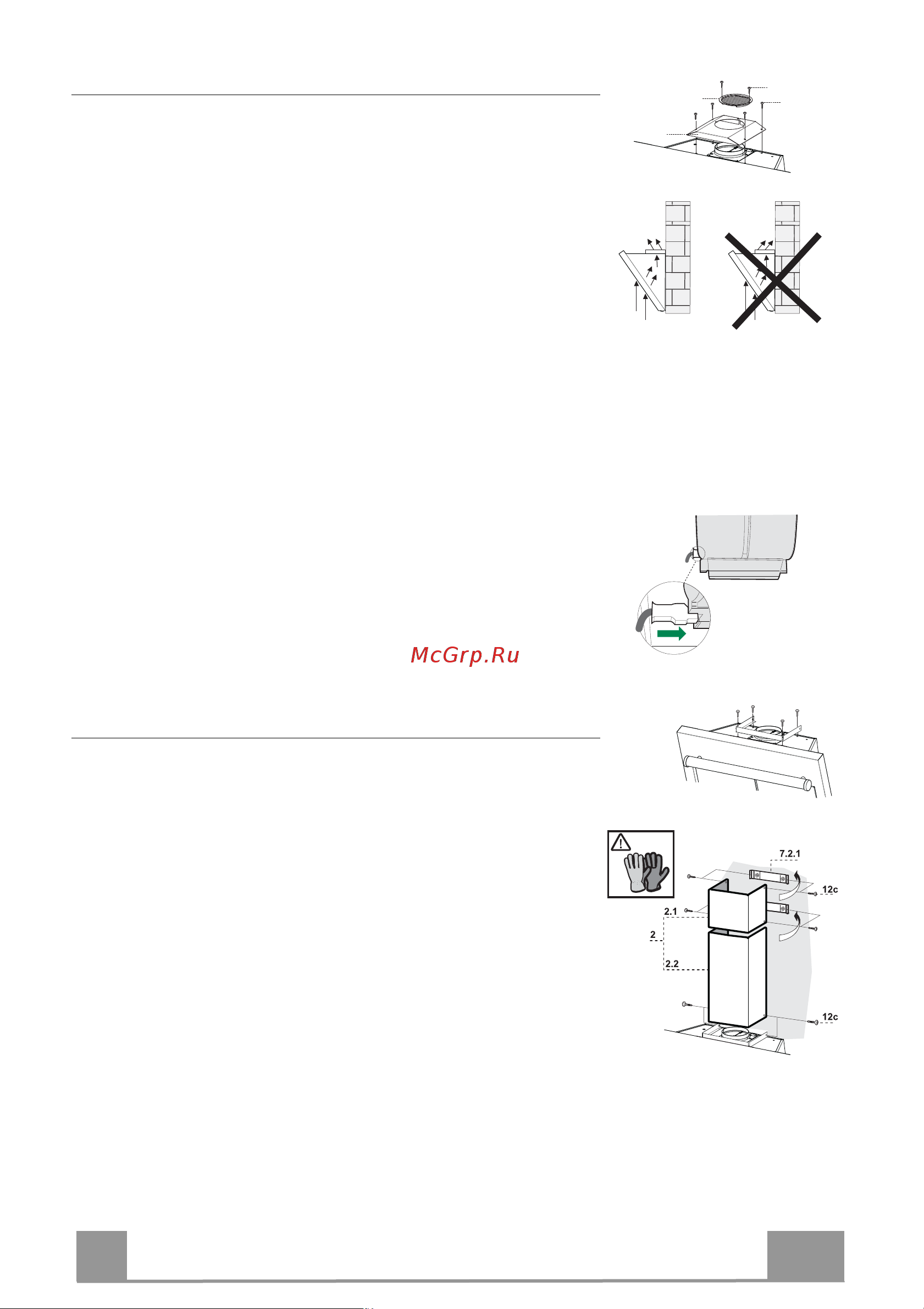

RECIRCULATION VERSION AIR OUTLET

To install the Recirculation Version of the hood, the optional Ac-

tivated charcoal cartridge kit must be purchased.

• Screw the filter cover onto the air outlet, using four screws 12c

(2.9 x 12.5).

• Fix the directional grille 8 on the recirculation air outlet using

the 2 screws 12d (2,9 x 9,5) provided.

12c

12d

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch hav-

ing a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Maintenance) being

sure that the connector of the feeding cable is correctly inserted

in the socket placed on the side of the fan.

Flue assembly

The chimney can only be installed with exhausting hood

• Fasten the angle iron 15 to the hood canopy using the screws

12d (2,9 x 9,5) provided.

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them

behind the brackets 7.2.1, making sure that they are well

seated.

• Secure the sides to the brackets using the 4 screws 12c (2,9 x

6,5) supplied.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them be-

tween the upper flue and the wall, making sure that they are

well seated.

• Fix the lower part laterally to the hood body using the 2 screws

12c (2,9 x 6,5) supplied.
