3.2.1.1.2 Setting the SNMP Community String
Type the known Read/Write Community string in the Community field (the default
string is public for read and private for read/write) and click the button to
confirm.
3.2.1.1.3 Assigning and Editing IP Addresses Manually (based on MAC
addresses)
1. Click the Set IP button. The Set IP dialog box appears.

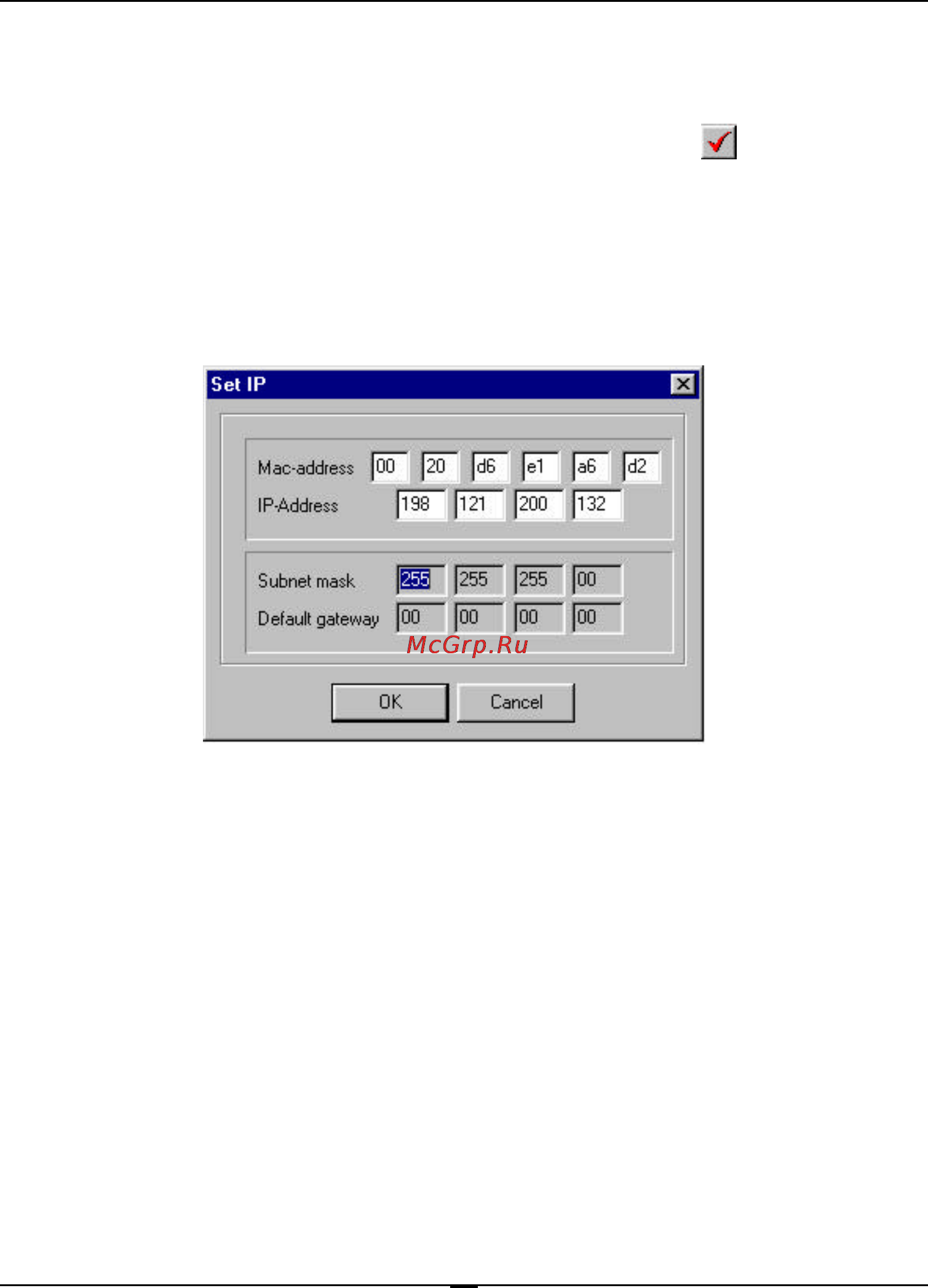

Figure 10: The Set IP Dialog Box
2. Type the parameters in the appropriate fields and click OK; the MAC
address is shown on the bottom label of the Indoor and Outdoor units. A
message box is displayed notifying you when the changes are to take
affect. This feature can be used only if the D-Link AirPremier
DWL-1800 Configuration Utility is on the same Ethernet segment as the
unit and not behind the router.
