39
indicating the progress of the operation. If both DWL-1800B and
DWL-1800R devices are selected, the program will upgrade
DWL-1800R units first.

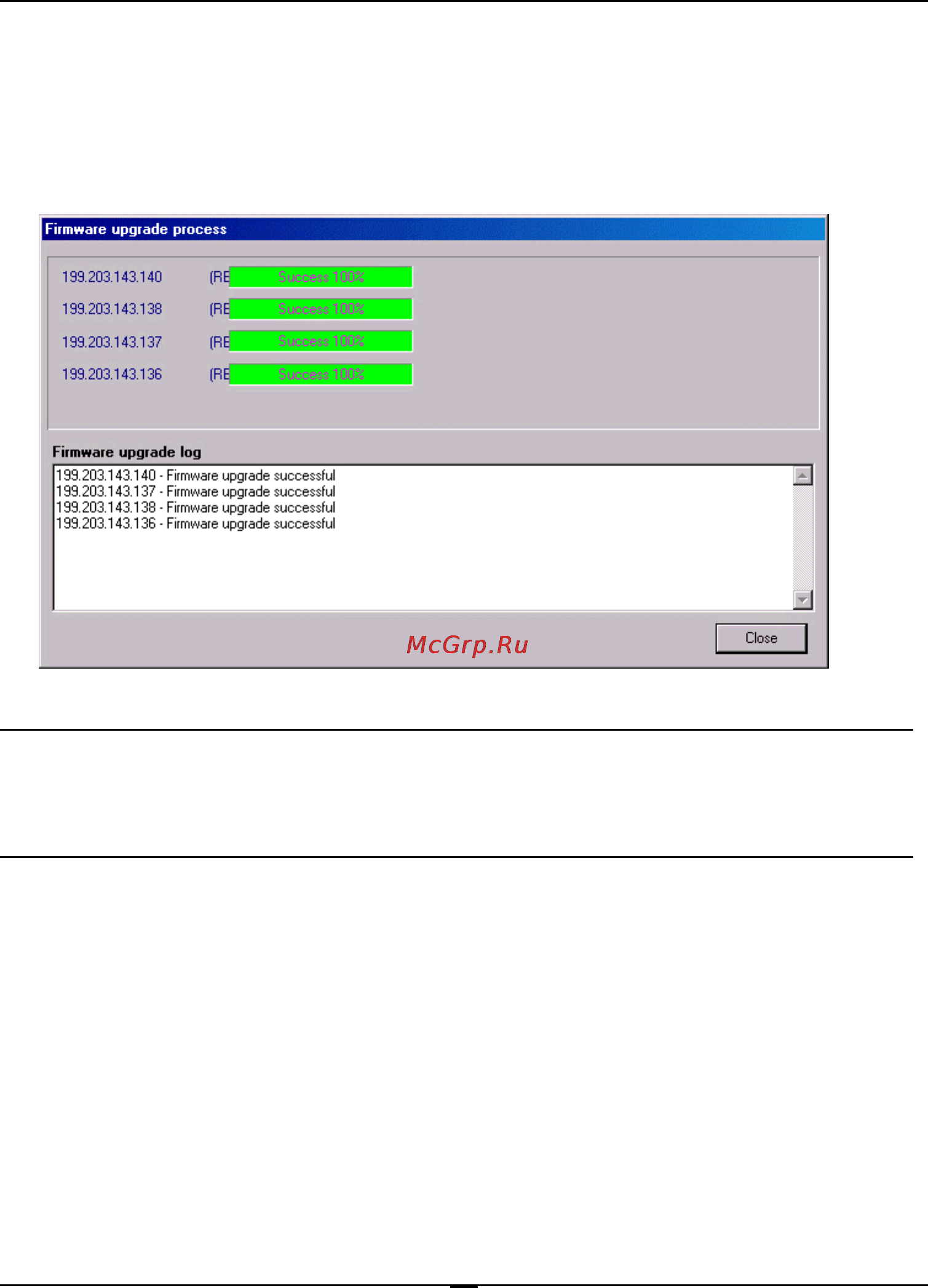

At the end of the upgrade session, the following window is displayed
indicating that the operation was successful.
Figure 23: Firmware Upgrade Process
NOTE: Do not disconnect any cables or try to stop the process before downloading is
completed.
All configured parameters are saved during the upgrade/download procedure.
