30

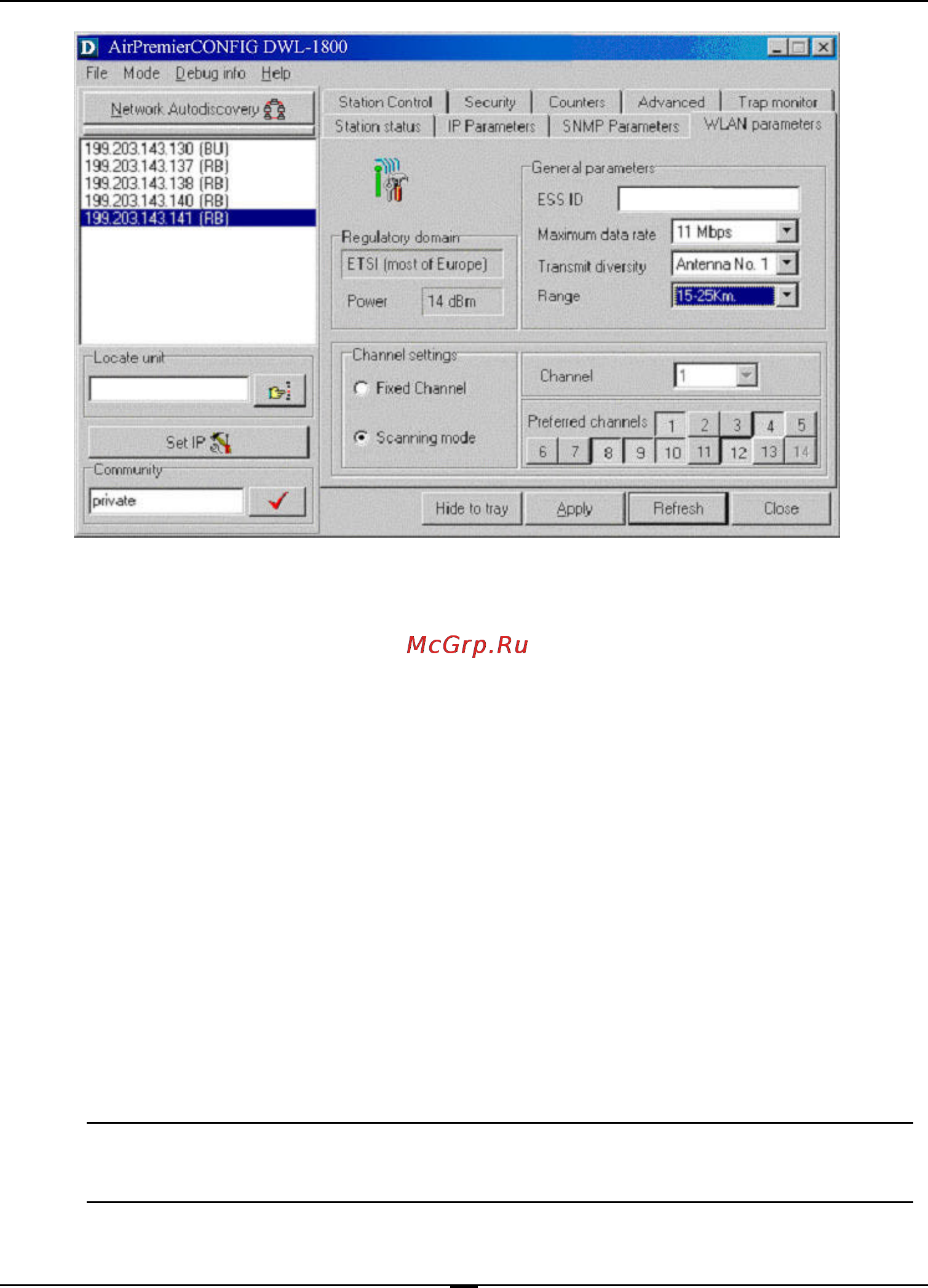

Figure 17: WLAN Parameters Tab (RB/DWL-1800R)
?? Regulatory Domain - Displays the regulatory authorities in the relevant
country of use (e.g., Canada, ETSI, FCC, Japan).
?? Power - Displays the current output power level at the antenna port.
?? ESSID - An ASCII string of up to 32 characters used to identify a
WLAN that prevents the unintentional merging of two co-located
WLANs. It is essential that the ESSID is set to the same value in all
Remote Bridges and Base Units that should communicate with each
other. The ESSID field is case-sensitive.
?? Maximum data rate - By default, the unit adaptively selects the highest
possible rate for transmission. Under certain conditions (for range/speed
trade-off) you may decide not to use the higher rates. Possible values are
2, 5.5 or 11 Mbps. The default value is 11 Mbps.
?? Transmit diversity - The antenna diversity option, which must be set to
Antenna No. 1.
NOTE: In the present product release, antenna diversity is not supported;
therefore, always select Antenna No. 1.
