Appendix - 84 -

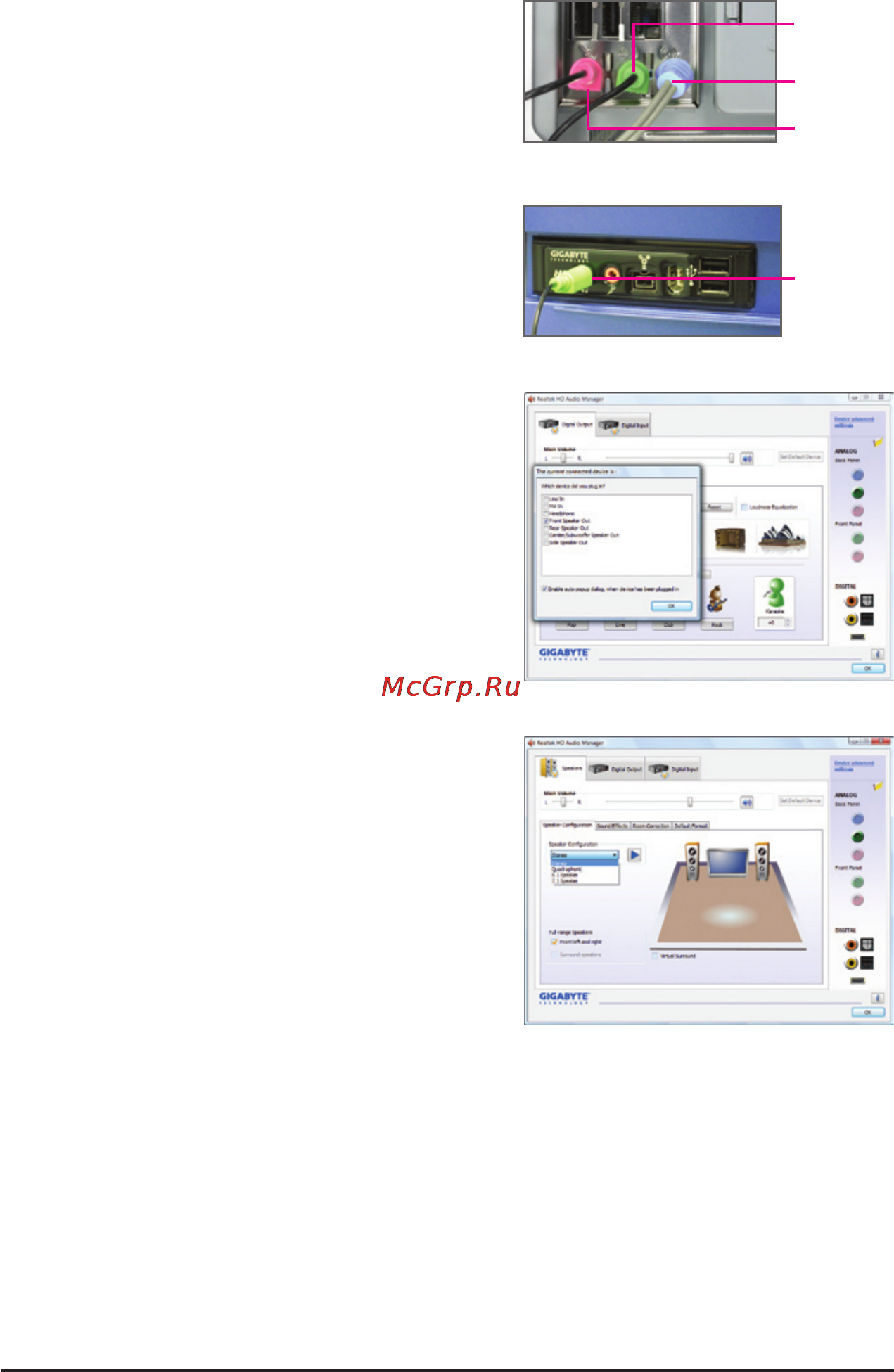

Step 2:
Connect an audio device to an audio jack. The The cur-
rent connected device is dialog box appears. Select the
device according to the type of device you connect. Then
click OK.
Step 3:
On the Speakers screen, click the Speaker Congura-
tion tab. In the Speaker Conguration list, select Stereo,
Quadraphonic, 5.1 Speaker, or 7.1 Speaker according to
thetypeofspeakercongurationyouwishtosetup.Then
the speaker setup is completed.
B. Conguring Sound Effect
YoumaycongureanaudioenvironmentontheSound Effects tab.
The pictures to the right show the 7.1-channel speaker
congurations.
7.1-Channel Speakers:
Center/Sub-
woofer
Speaker Out
Front Speaker
Out
Rear Speaker
Out
Side Speaker
Out
