21
Chapter 2. Device setup
-P1- -P1- -P2- -P2-
Male
type
Rx 3
1 Tx STEREO
Tx 2
2 Rx PLUG
Gnd 5 — 3 GND (3.5ø)

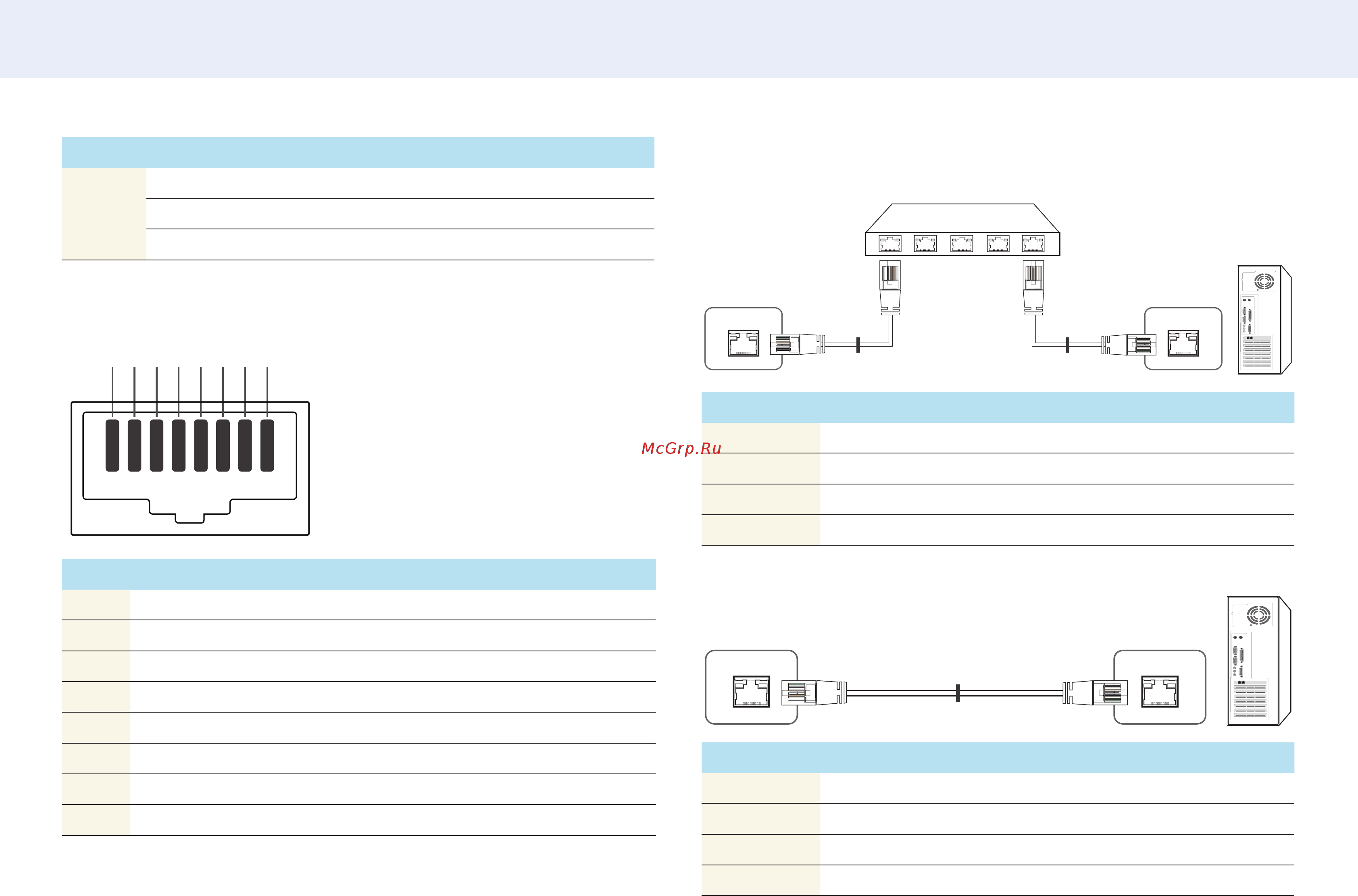

LAN Cable
Pin assignment
1 2 3 4 5 6 7 8
Pin No Standard Colour Signal
1 White and orange TX+
2 Orange TX-
3 White and green RX+
4 Blue NC
5 White and blue NC
6 Green RX-
7 White and brown NC
8 Brown NC
Direct LAN cable (PC to HUB)
• Connector: RJ45
RJ45 MDC
HUB
P2
P1
P2
P1
RJ45
Signal P1 P2 Signal
TX+ 1
1 TX+
TX- 2
2 TX-
RX+ 3
3 RX+
RX- 6
6 RX-
Cross LAN cable (PC to PC)
RJ45
P1
P2
Signal P1 P2 Signal
TX+ 1
3 RX+
TX- 2
6 RX-
RX+ 3
1 TX+
RX- 6
2 TX-
