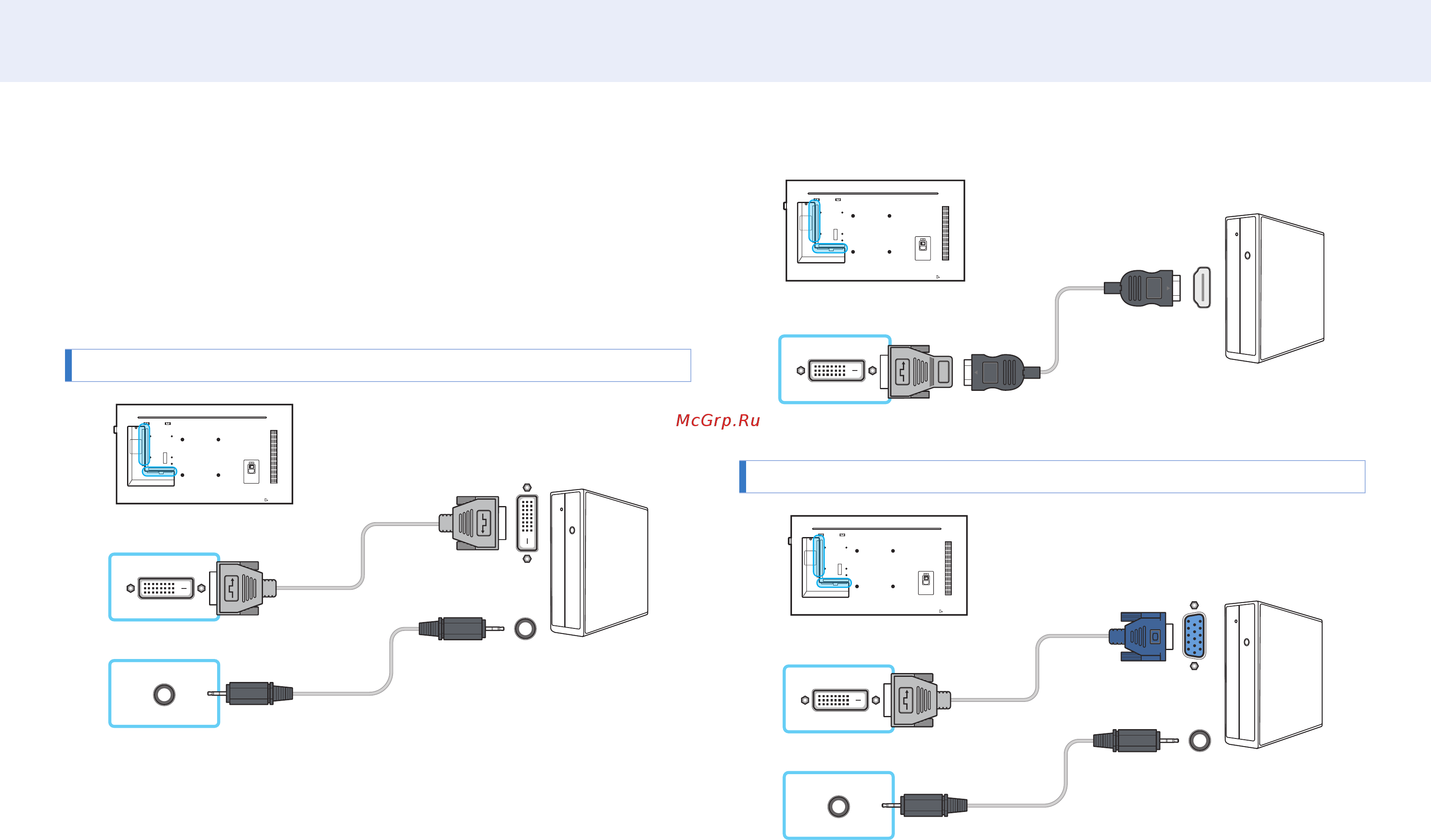

31
Chapter 2. Device setup
PC connection
• Do not connect the power cable before connecting all other cables.
Ensure you connect a source device rst before connecting the power cable.
• A PC can be connected to the product in a variety of ways.
Select a connection method suitable for your PC.
• Connecting parts may differ in different products.
Connection using a DVI cable (Digital type)
The appearance may differ depending on the product.
DVI / PC / MAGICINFO IN
AUDIO IN
You can use the DVI port on the product as an HDMI port by using a DVI-HDMI adapter.
HDMI
DVI / PC / MAGICINFO IN
Connection using a D-SUB cable (Analog type)
The appearance may differ depending on the product.
DVI / PC / MAGICINFO IN
AUDIO IN
