D-Link DI-704P [13/53] Setup wizard
![D-Link DI-704P [13/53] Setup wizard](/views2/1045333/page13/bgd.png)

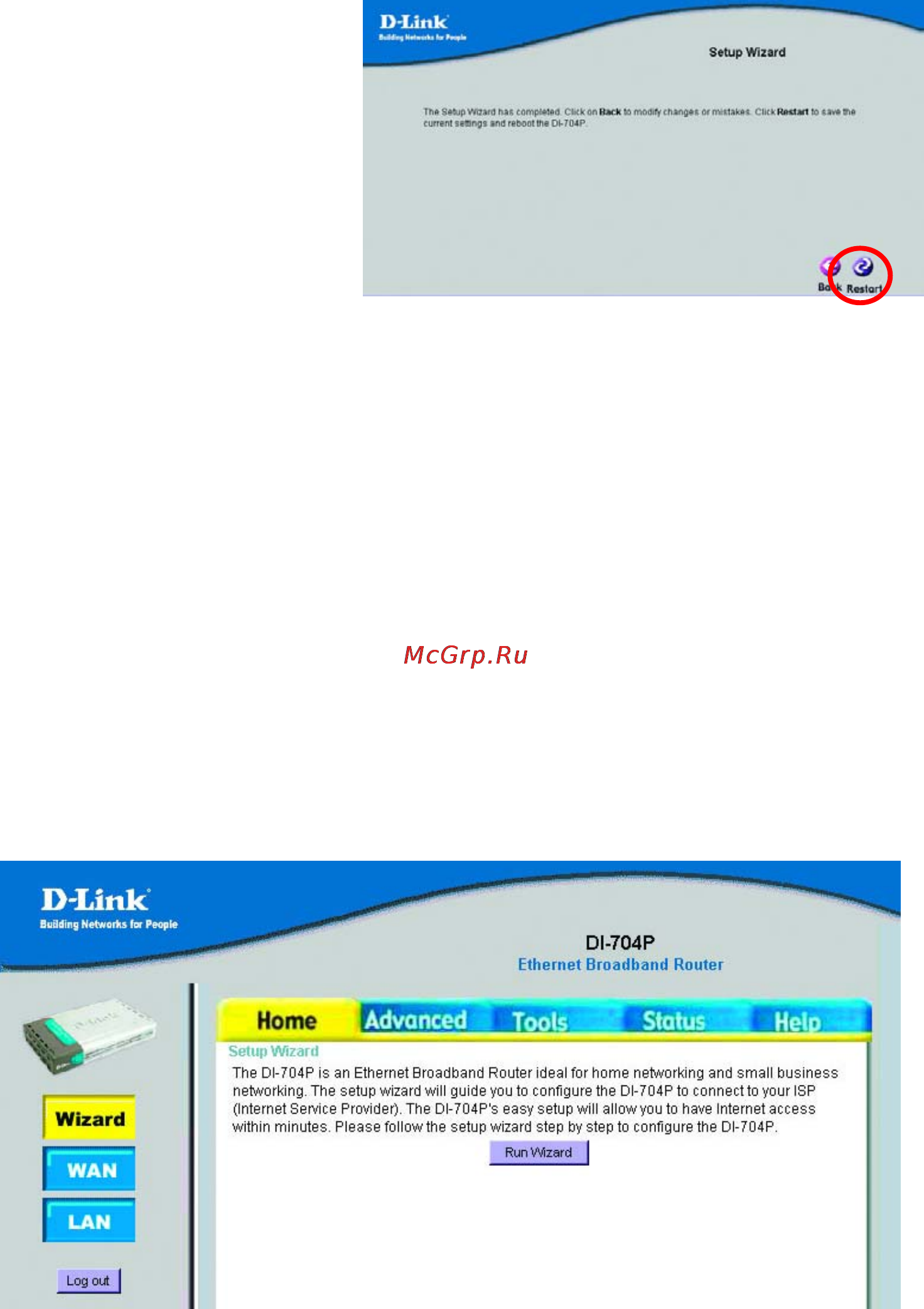

At this point, the Setup
Wizard has completed. Click
Restart to save the settings
and reboot the DI-704P.
The DI-704P will save the
changes and reboot.
You have completed the Setup Wizard.
You can now access the Internet.
Whenever you choose to make changes or additions to the configuration of
the DI-704P, you can access the Configuration menu by typing the IP
Address of the DI-704P into the address line of your web browser and
pressing “enter.” Read more about the Configuration menu in the following
chapter.
Using the Configuration Menu
Setup Wizard
The Setup Wizard page is the first page that appears when logging into the
web-based management interface. The Setup Wizard is a utility used to
quickly configure the DI-704P. It will guide you through three quick and basic
steps to help you connect to your ISP. You will be connected to your ISP
(Internet Service Provider) and have Internet access within minutes.
