D-Link DI-704P [39/53] Networking basics
![D-Link DI-704P [39/53] Networking basics](/views2/1045333/page39/bg27.png)
Networking Basics

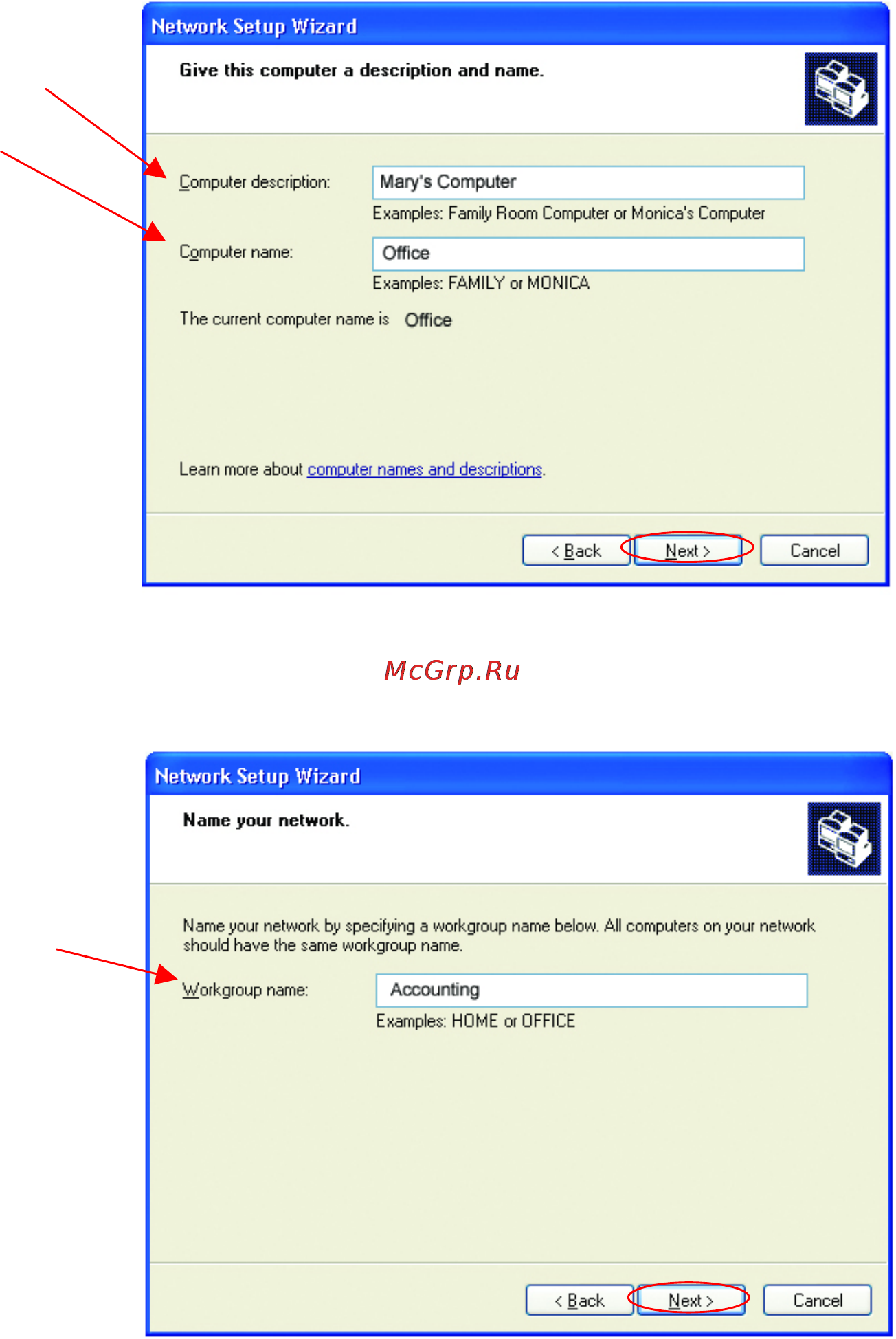

Enter a Computer description and a Computer name (optional.)
Click Next
Enter a Workgroup name. All computers on your network should have the
same Workgroup name.
Click Next
