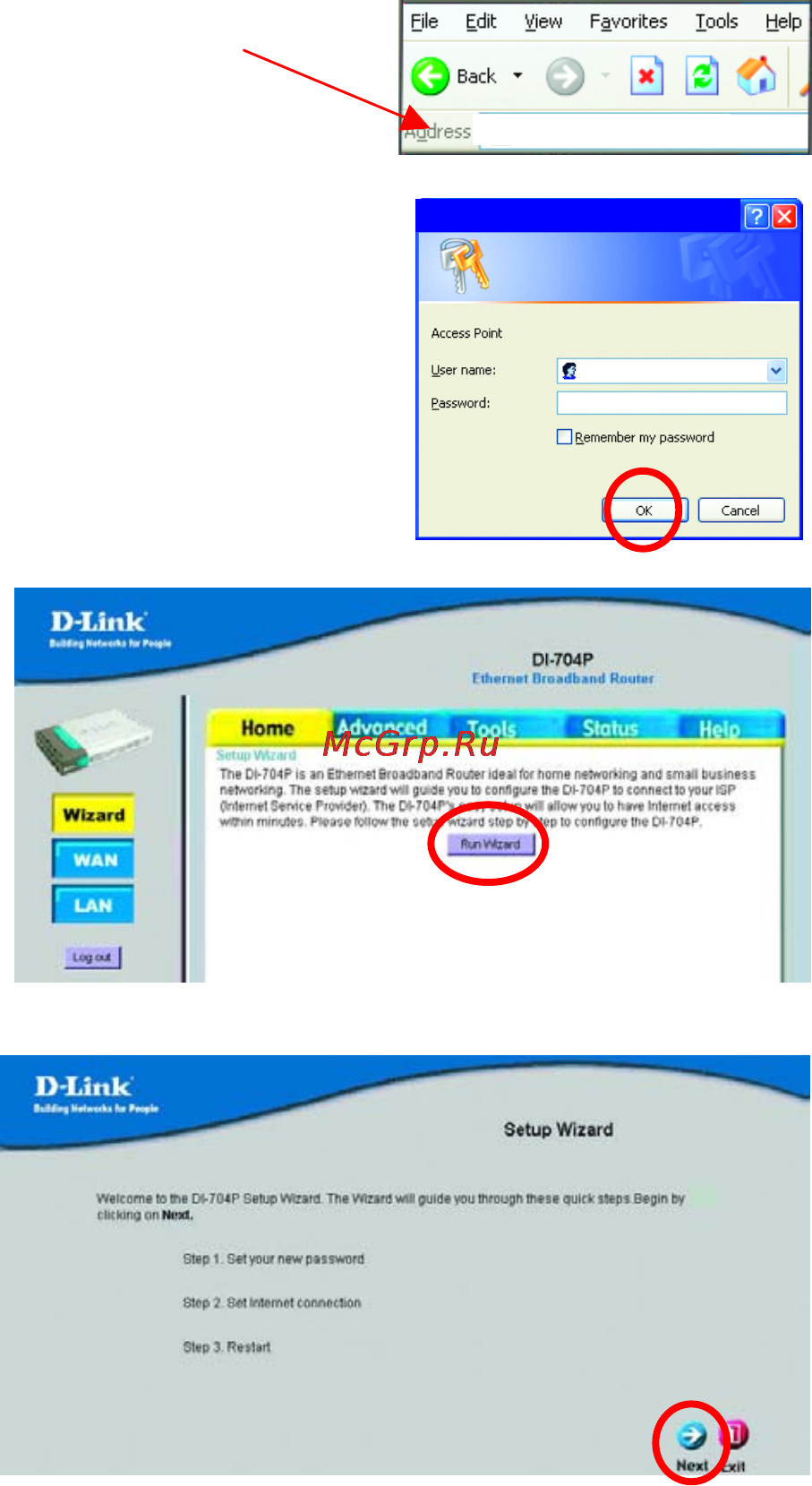

Using the Configuration Wizard
The DI-704P provides Web based configuration. You can configure your
DI-704P through your Netscape Communicator or Internet Explorer
browser in MS Windows, Macintosh or UNIX based platforms.
Activate your browser. Then type the IP address of the DI-704P into the
Location (for Netscape) or Address (for IE) field and press “Enter.” For
example: http://192.168.0.1.
(The IP Address shown in the example above is the default
setting. If you have changed the IP Address of the DI-704P to
conform to a network, then input that IP Address in the web
browser, instead of the default IP Address shown.)
This screen will appear.
Click Run Wizard.
The Setup Wizard screen
will appear. Follow the
Wizard step by step to
quickly configure the
DI-704P.
Click Next
• Open the web browser
• Type in the IP Address of
the DI-704P
• Type admin in the User Name field
(lower case)
• Leave the Password blank
• Click OK
http://192.168.0.1
Connect to 192.168.0.1
admin
