30

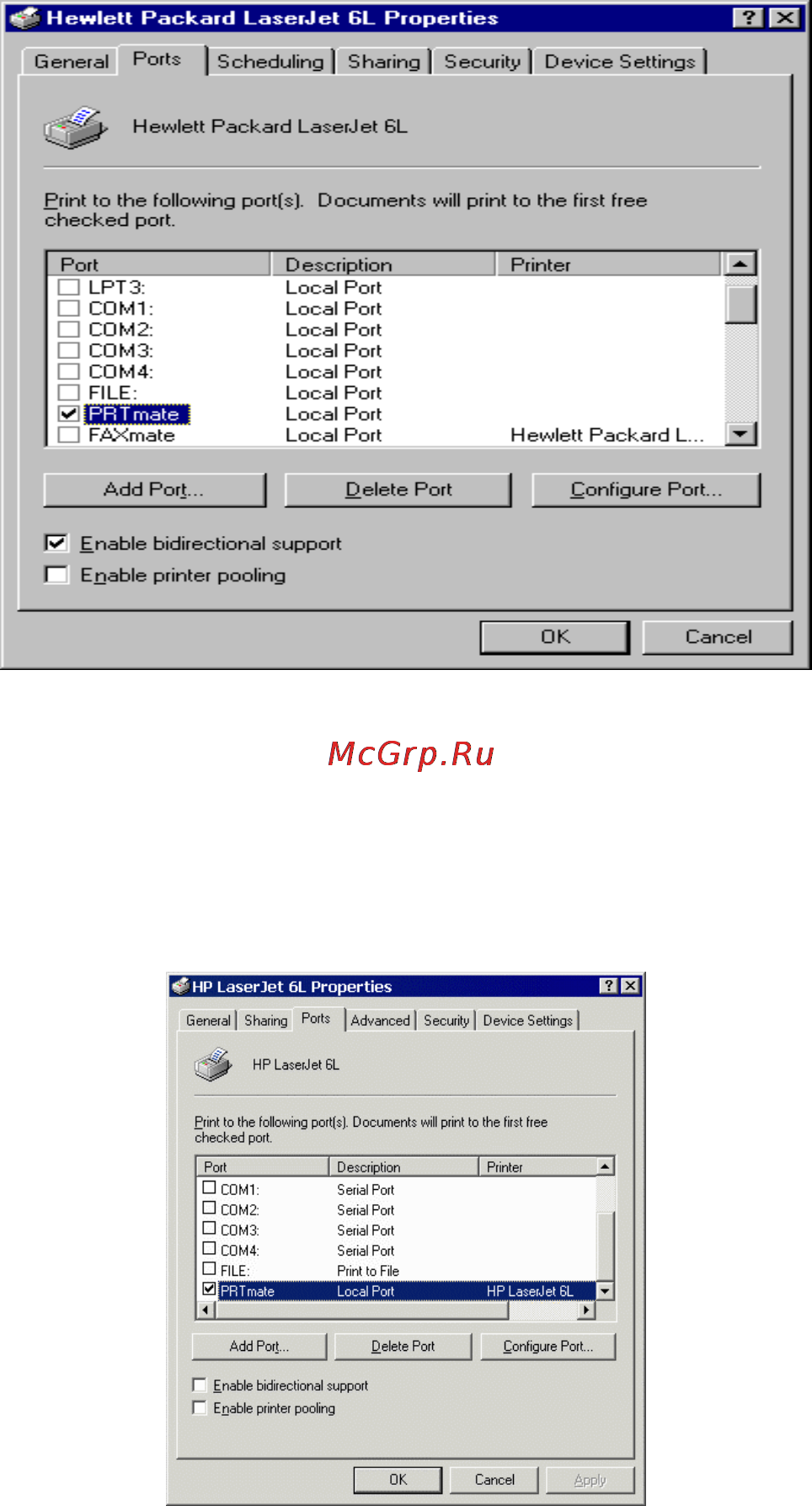

Configuring on Windows NT Platforms
The configuration procedure for a Windows NT platform is similar to that of
Windows 95/98 except the screen of printer Properties:
Compared to the procedure in last section, the selection of Details is equivalent
to the selection of Ports, and Port Settings is equivalent to Configure Port.
Configuring on Windows 2000/XP Platforms
The configuration procedure for a Windows 2000/XP platform is similar to that of
Windows 95/98 except the screen of printer Properties:
Compared to the procedure in last section, the selection of Details is equivalent to
the selection of Ports, and Port Settings is equivalent to Configure Port.
(Note: Screen shots are taken in Windows 2000, similar screens will appear in Windows XP.)
