Select Use the following IP address in the Internet Protocol (TCP/IP)
Properties window.

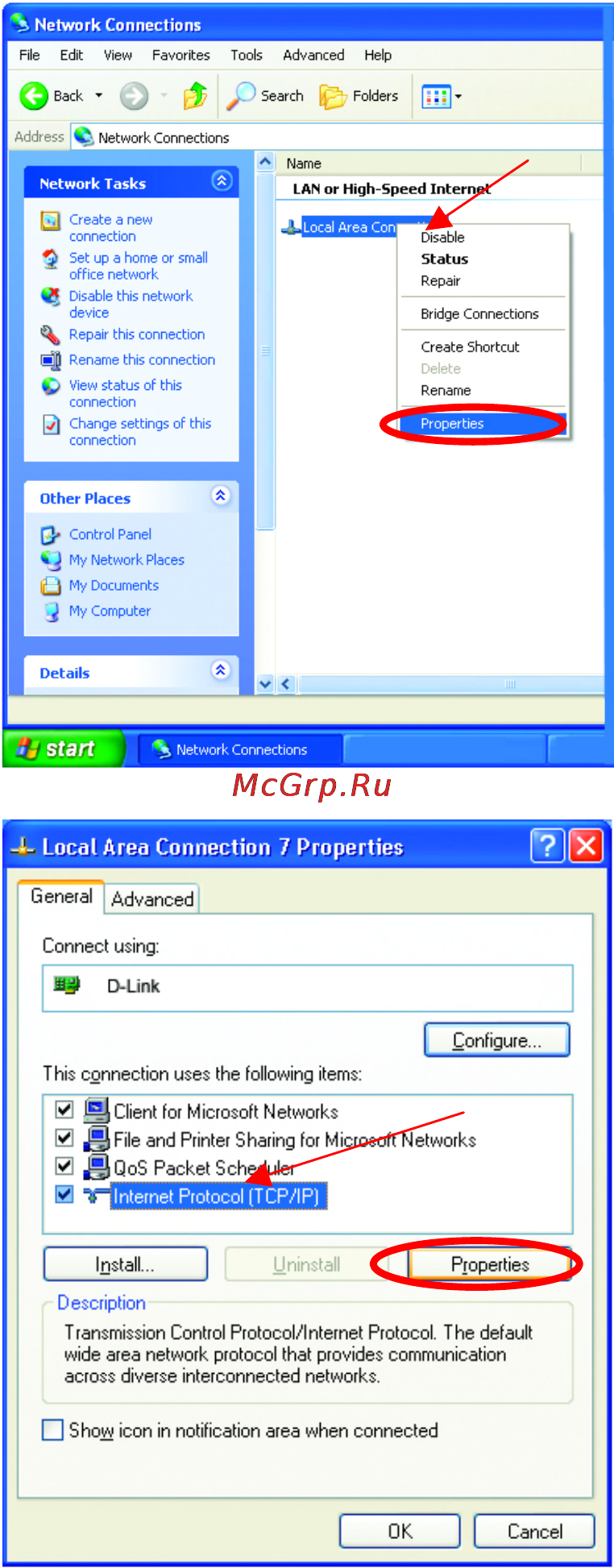

Right-click on Local Area
Connections.
Click Properties
Highlight Internet Protocol
(TCP/IP)
Click Properties
DFE-530TX+
