- 21 - Hardware Installation

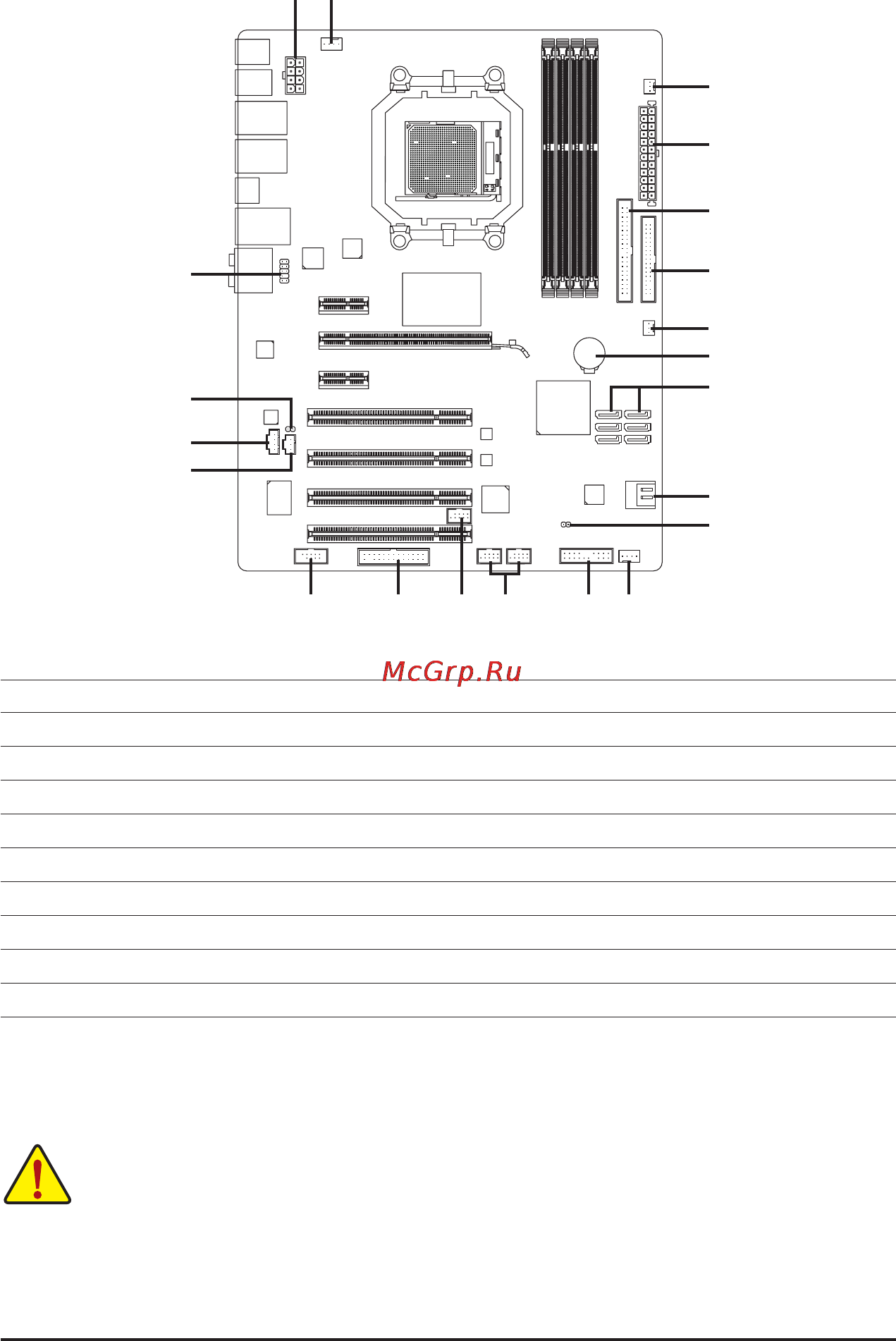

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1
2
3
5
8
1617 18 15
11
14
13
12
4
7
19
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2
5) PWR_FAN
6) FDD
7) IDE
8) SATA2_0/1/2/3/4/5
9) GSATA3_6/7
10) F_PANEL
11) F_AUDIO
12) CD_IN
13) SPDIF_IN
14) SPDIF_OUT
15) F_USB1/F_USB2
16) F_1394
17) COMA
18) LPT
19) BAT
20) CLR_CMOS
4
9
6
10
20
