- 25 - Hardware Installation
A RAID 0 or RAID 1 conguration requires at least two hard drives. If more than two hard drives
are to be used, the total number of hard drives must be an even number.

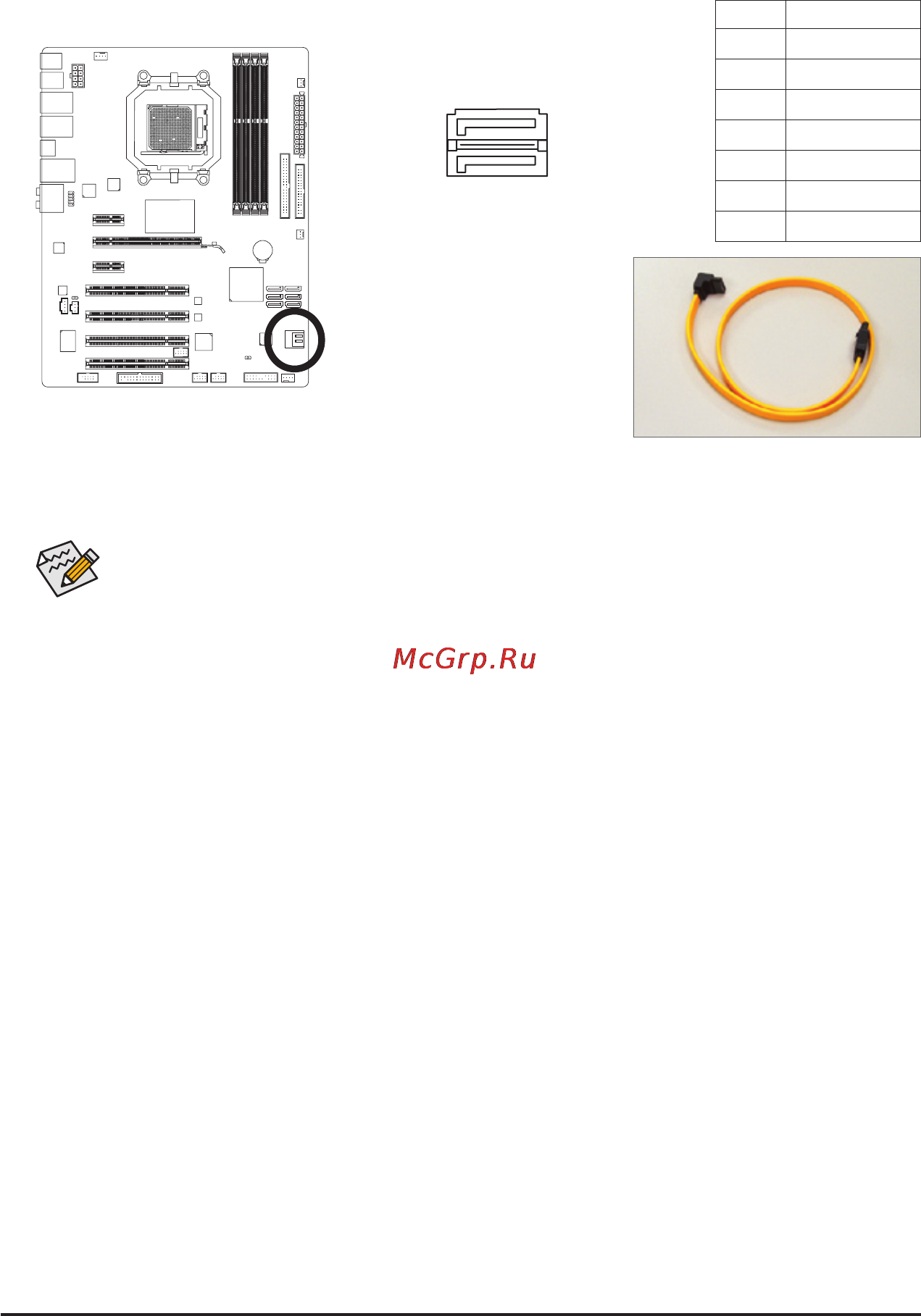

9) GSATA3_6/7 (SATA 6Gb/s Connectors, Controlled by Marvell 9128)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standards. Each SATA connector supports a single SATA device.
The Marvell 9128 supports
RAID 0 and RAID 1. Refer to Chapter 5, "Conguring SATA Hard Drive(s)," for instructions on conguring a
RAID array.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Please connect the L-shaped end of
the SATA 3Gb/s cable to your SATA
hard drive.
7 1
7 1
G.QBOFM
GSATA3_6
GSATA3_7
