DFL-2100/DFL-2400 Intrusion Detection System User Manual
5

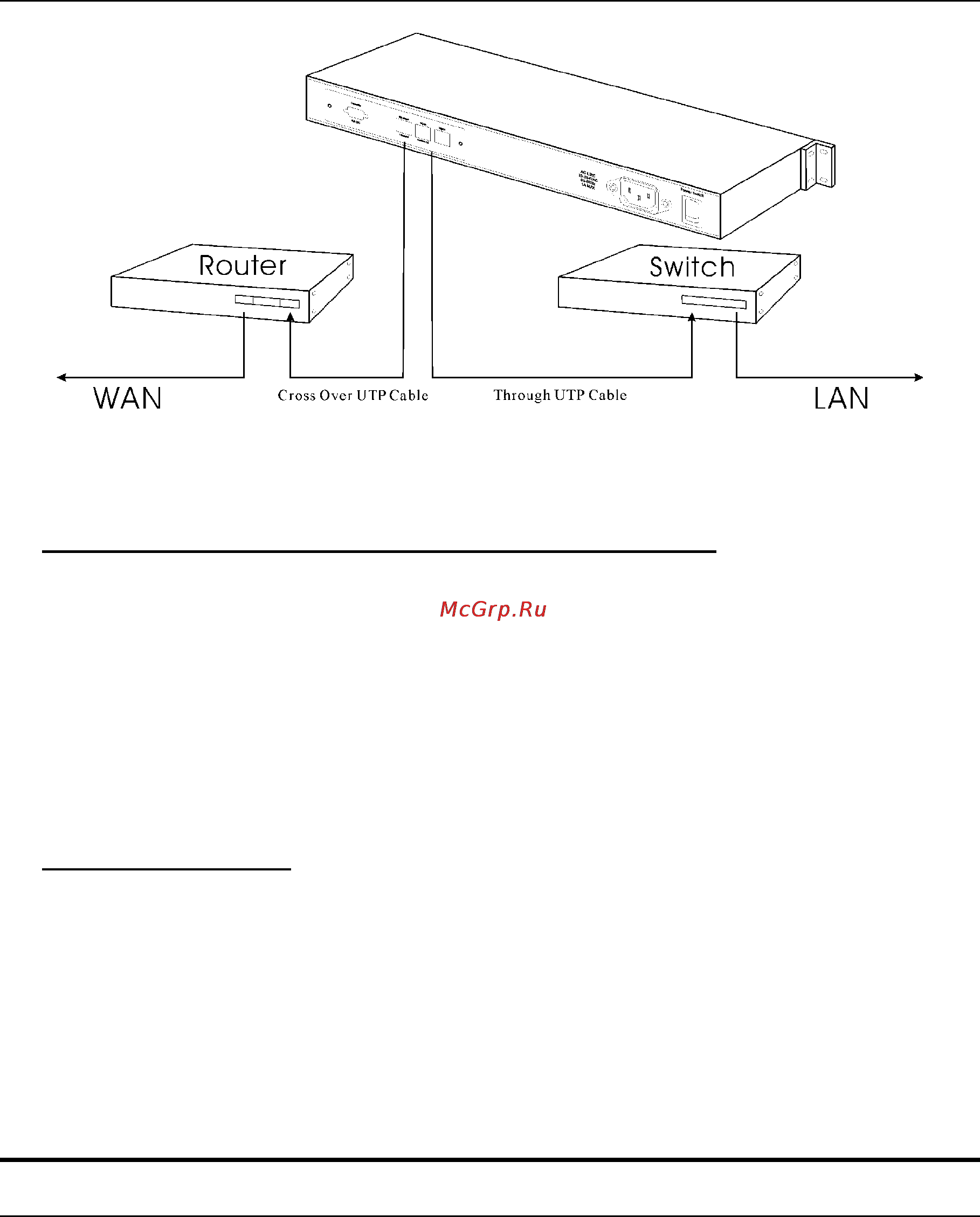

Figure 2-2：Cable Connection
Install Policy Server Software
Policy Server Hardware and Operating System Requirement
Before install the DFL-2100/DFL-2400 Policy Server, we must understand a few points
about the DFL-2100/DFL-2400 Policy Server.
♦ The Operation System should be Windows 2000, Windows XP or Windows NT with
service pack 6.0 and above.
♦ The host can support Internet access.
♦ DFL-2100/DFL-2400 will send log data to Policy Server and Policy Server will save it in
hard disk. Therefore, your hard disk may have 30G free space.
♦ We suggest that your CPU would be Pentium III 1000 and memory would be 256 MB
or more.
Installation Procedure
Step 0. Install NT service pack 6.0
Step 1. Install Policy Server
Step 1-1 Install Java Run Time Environment（JRE）
Step 1-2 Install MySQL database server
Step 1-3 Install Apache Web server for Win32
Step 1-4 Install Policy Server software
Step 2. Auto Configuration
Step 3. Close and reboot
Note: The detail installation describe can refer to “Quick Installation Guide”
Configure the DFL-2100/DFL-2400
Before you can begin to manage the DFL-2100/DFL-2400 device (i.e. protect your
network and servers), it must first be initialized. This procedure is accomplished through the
DFL-2100/DFL-2400 Command Shell, which resides in the DFL-2100/DFL-2400 device.
Access to the Command Shell can be made either through SSH or from a terminal (or
terminal emulator) connected directly to the DFL-2100/DFL-2400 device. These methods are
described below.
