D-Link DFL-2100 [22/112] Summary of steps

DFL-2100/DFL-2400 Intrusion Detection System User Manual

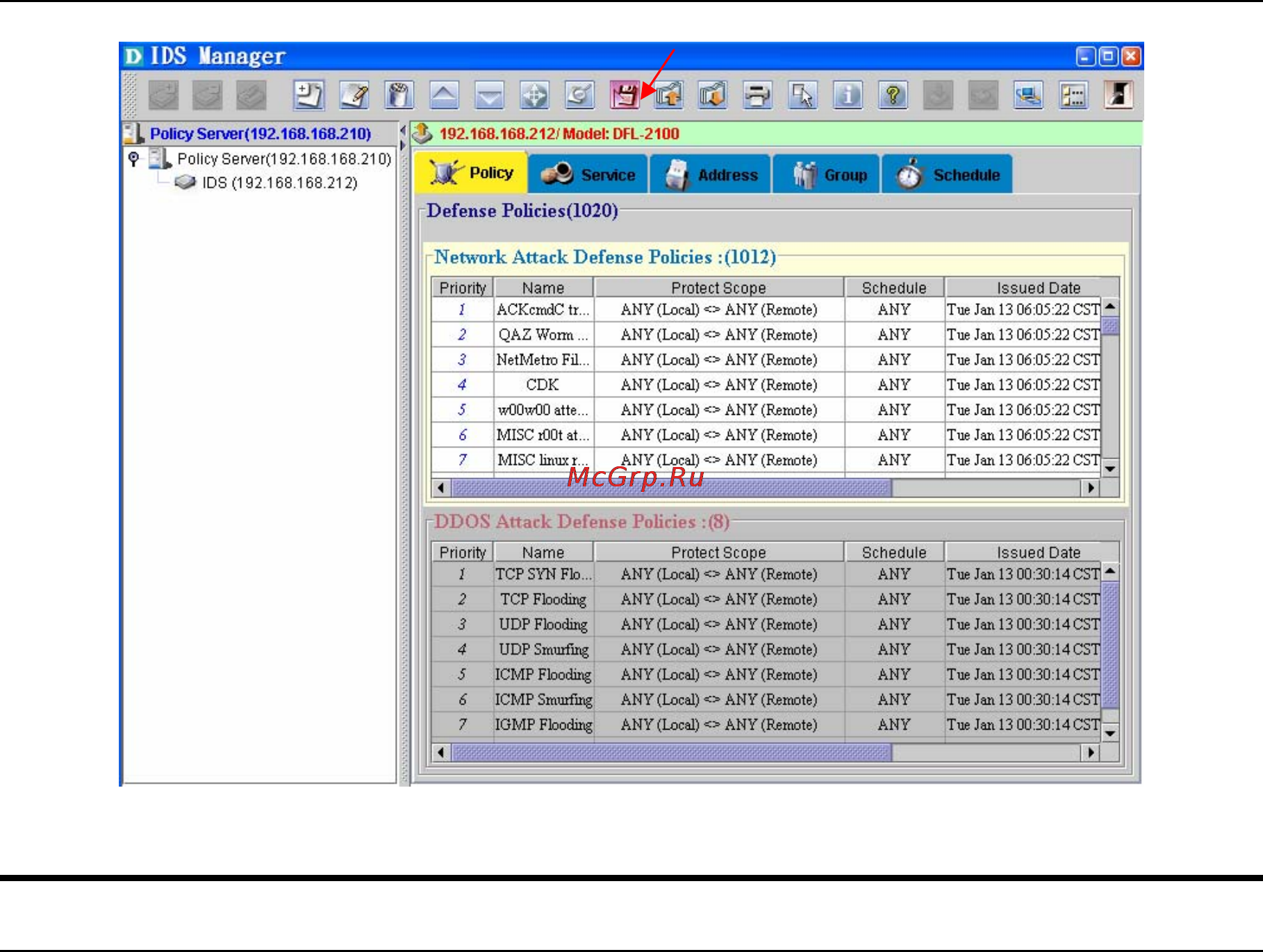

Figure 2-11: make sure the defense policies to take effect

Summary of Steps

In summary, you can make sure your DFL-2100/DFL-2400 have protected your servers and

networks.

1. Connecting your DFL-2100/ DFL-2400 Policy Server via your browser.

2. Manage your DFL-2100/DFL-2400 via your Policy Server management windows.

3. Download the latest attack pattern and make sure the defense policies to take effect.
