D-Link DFL-2100 [72/112] The udp tab

DFL-2100/DFL-2400 Intrusion Detection System User Manual

The UDP Tab

The UDP tab consists parameters for UDP packet header field value settings:

1. Source, Destination Port: Source and Destination port number

2. Length: UDP packet total size.

3. Checksum: UDP checksum field.

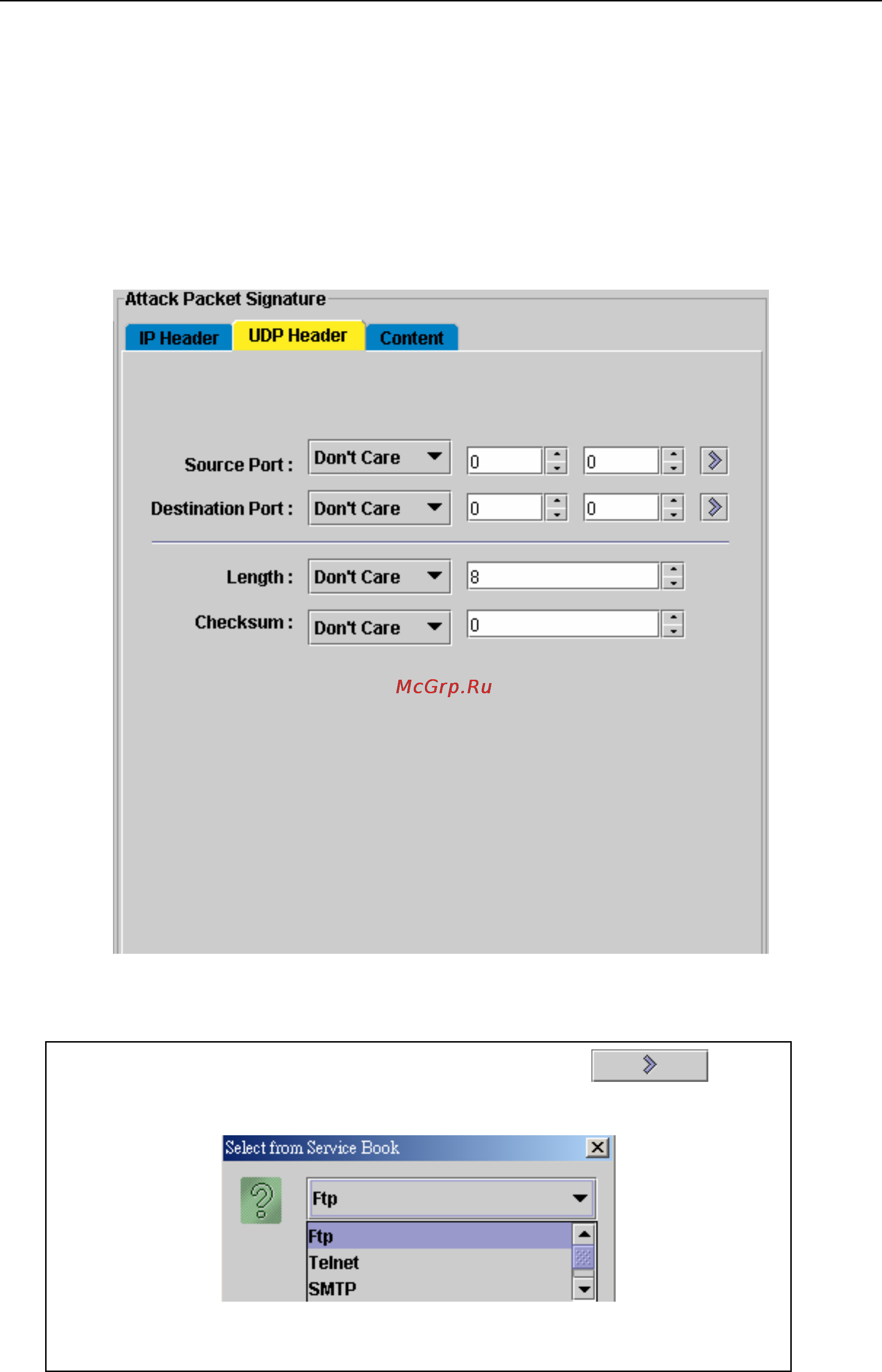

Figure 6-11: The ”UDP Tab”

Note The port number can be chosen by the button . It will

show the service name that defined in the service.

Figure 6-12: The ”Select from Service Book”
