D-Link DIS-100G-5SW [3/13] Hardware installation

Off No link or SFP port 100 Mbps connection is detected.

Table 2

DIP-switches

Pin № State Description

Pin 1 ON To enable the power alarm.

OFF To disable the power alarm.

Pin 2 ON To enable broadcast storm rate limit.

OFF To disable broadcast storm rate limit.

Pin 3-6 ON Not used.

OFF Not used.

Table 3

Hardware Installation

DIN-Rail Mounting

Mounting steps:

1. Screw the DIN-Rail bracket on with the bracket and screws in the accessory kit.

2. Hook the unit over the DIN-Rail.

3. Push the bottom of the unit towards the DIN-Rail until it snaps into place.

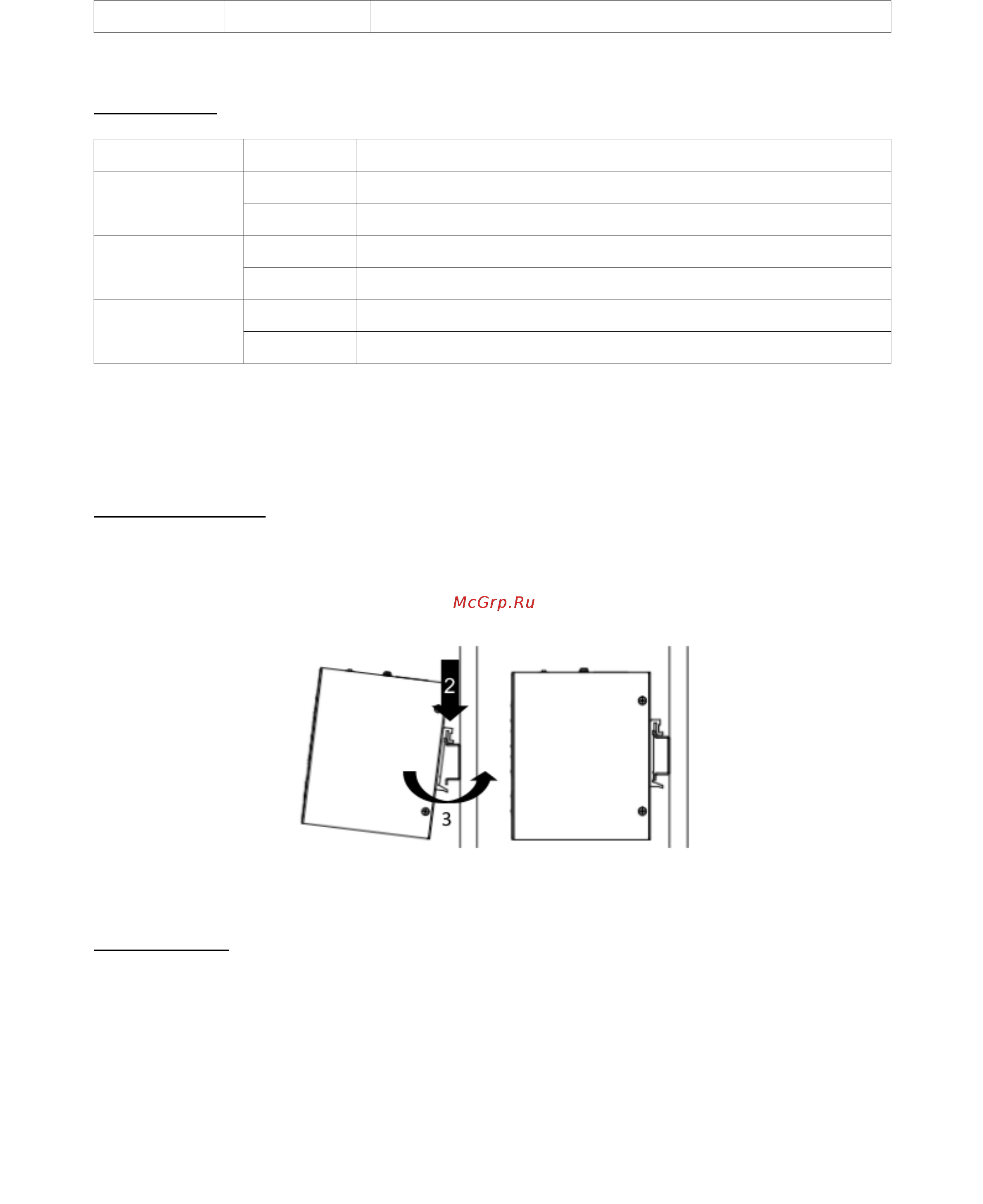

Figure 1 — Mounting the switch on a DIN-Rail

Wall Mounting

Screw on the wall-mount plate on with the plate and M4 screws in the accessory kit.
