D-Link DIS-100G-5SW [4/13] Grounding the switch

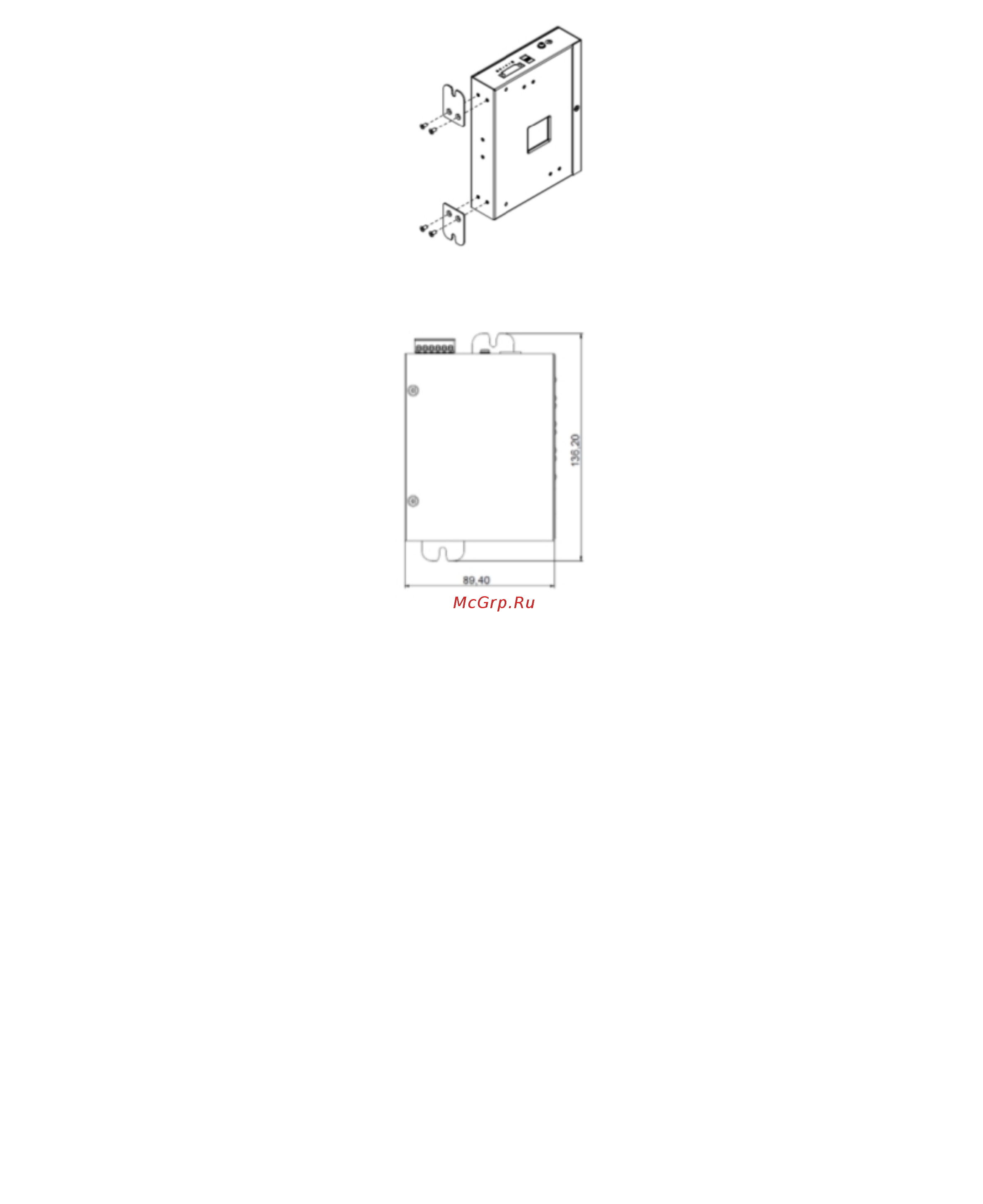

Figure 2 — Attaching brackets to the switch

Figure 3 — The switch with the attached wall mounting brackets

Grounding the Switch

Use the following instructions to ground the switch. Please complete these steps before

powering on the switch.

1. Remove the grounding screw from the switch and place the grounding cable lug ring on

top of the grounding screw opening.

2. Insert the grounding screw back into the grounding screw opening and use a

screwdriver to tighten the grounding screw, securing the grounding cable to the switch.

3. Attach the terminal lug ring at the other end of the grounding cable to an appropriate

grounding source.

4. Verify that the connection between the grounding connector on the switch and the

grounding source is secure.
