D-Link Web Smart Switch User Manual

Fundamentals



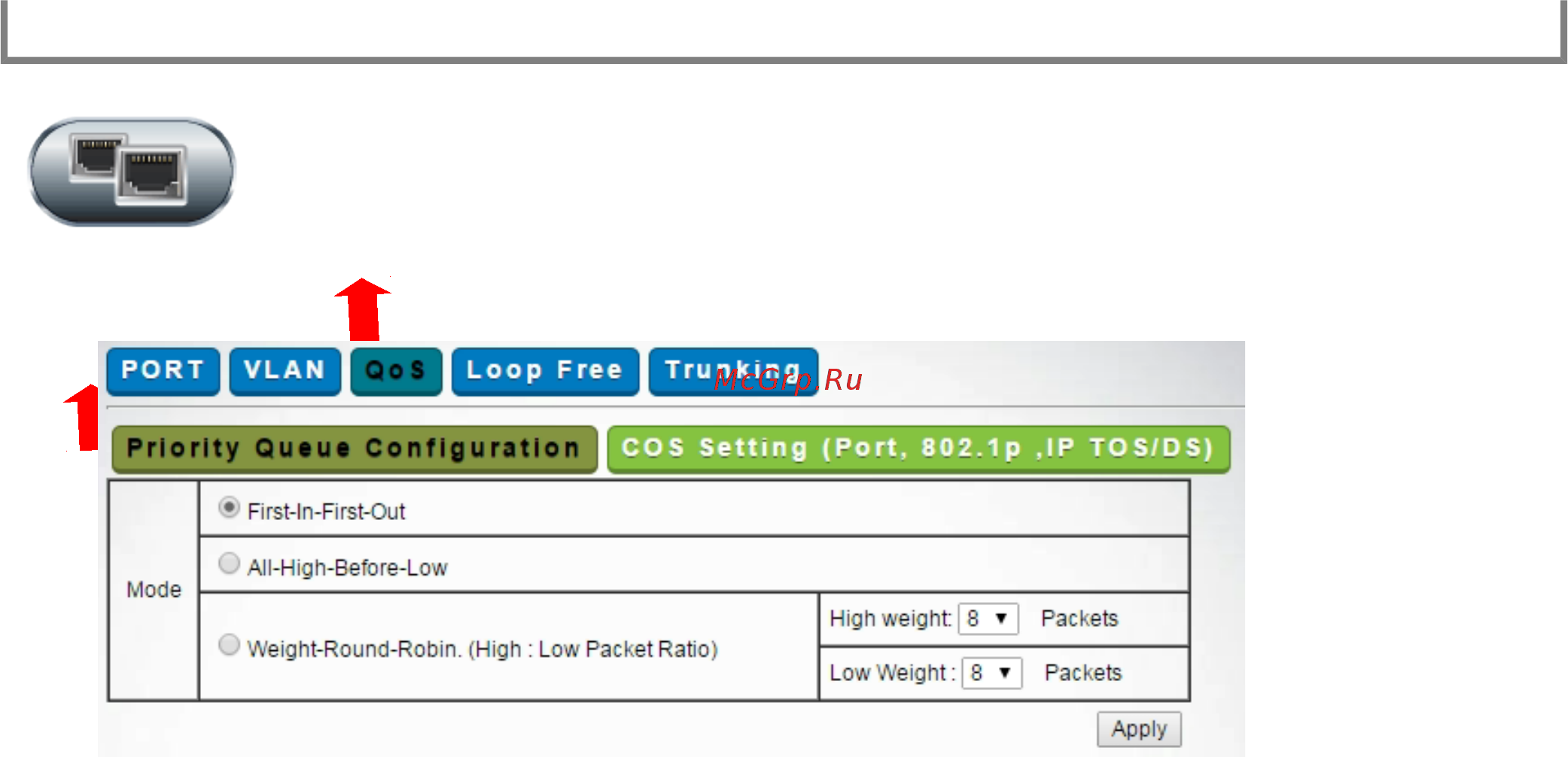

“Fundamentals” -> “QoS” ->”Priority Queue Con(guration” -> ”First-In-

First-Out”:

The !rst packet put into the queue will be !rstly switched out.



“Fundamentals” -> “QoS” ->”Priority Queue Con(guration” -> “All-High-

Before-Low”

After all packets in the high-priority queue are switched out, packet in the low-

queue can be then processed. No packet in the low-queue can be processed until

high-queue is cleaned.



“Fundamentals” -> “QoS” ->”Priority Queue Con(guration” -> “Weight-

Round-Robin”

Packet processing will be conducted in the manner like, for instance, process 8

packets of high queue, then, process 8 packets in the low queue. And then, back

to processing packets in the high queue….it’s so called round-robin. User can set

weight (processed packet counts) to high and low queues.
