D-Link DES-1100-10P [3/31] Getting started

D-Link Web Smart Switch User Manual

Getting Started

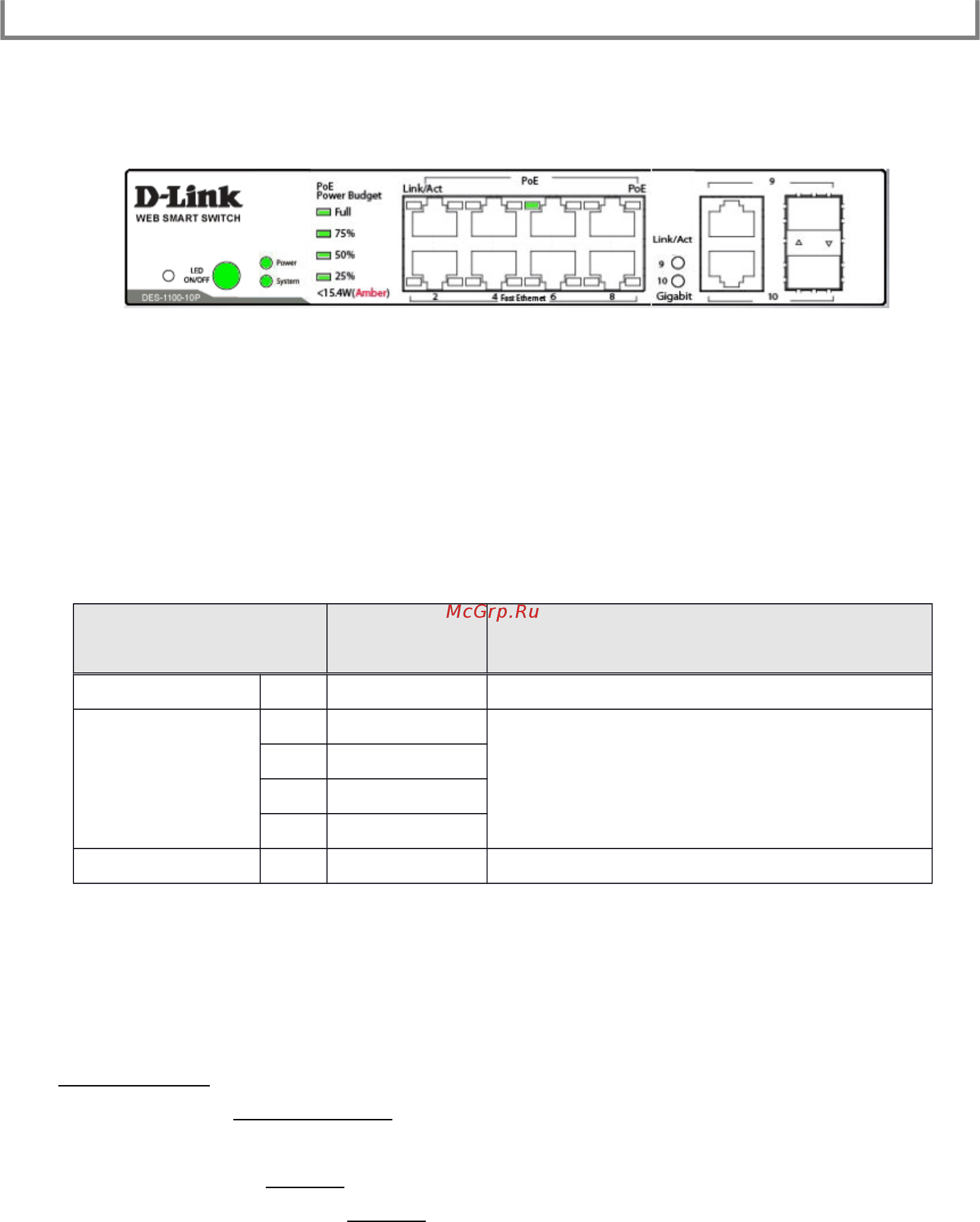

Fig. Front panel of DES-1100-10P



Power on the Switch:

Power on the Switch before plug in any Ethernet cable, system will go through

Power-On-Self-Test (POST) with LEDs lighting in Green or Amber. Then, after

completing the POST, LEDs will stay at the state as the table below..

LED Indication Color /

State

Description

Power Green On The device is powered on.

PoE Power Budget Full Green On Power for POE is full, not been consumed yet.

75% Green On

50% Green On

25% Green On

System Amber On Device passed POST and ready for login.



Log into the Switch:

Connect PC to any port of the Switch via Ethernet cable. Make sure the LAN

setting of PC

is set to work in the same subnet as Switch device which the default IP address is

10.90.90.90.

Type IP address 10.90.90.90 in the WEB Browser of PC, you will then be asked to

enter ID and Password so that you can log into the Switch device.

The default ID is “admin”.

The default Password is “admin”.

Press “OK”, you will log in and see the welcome page for “Home”.
