Fundamentals



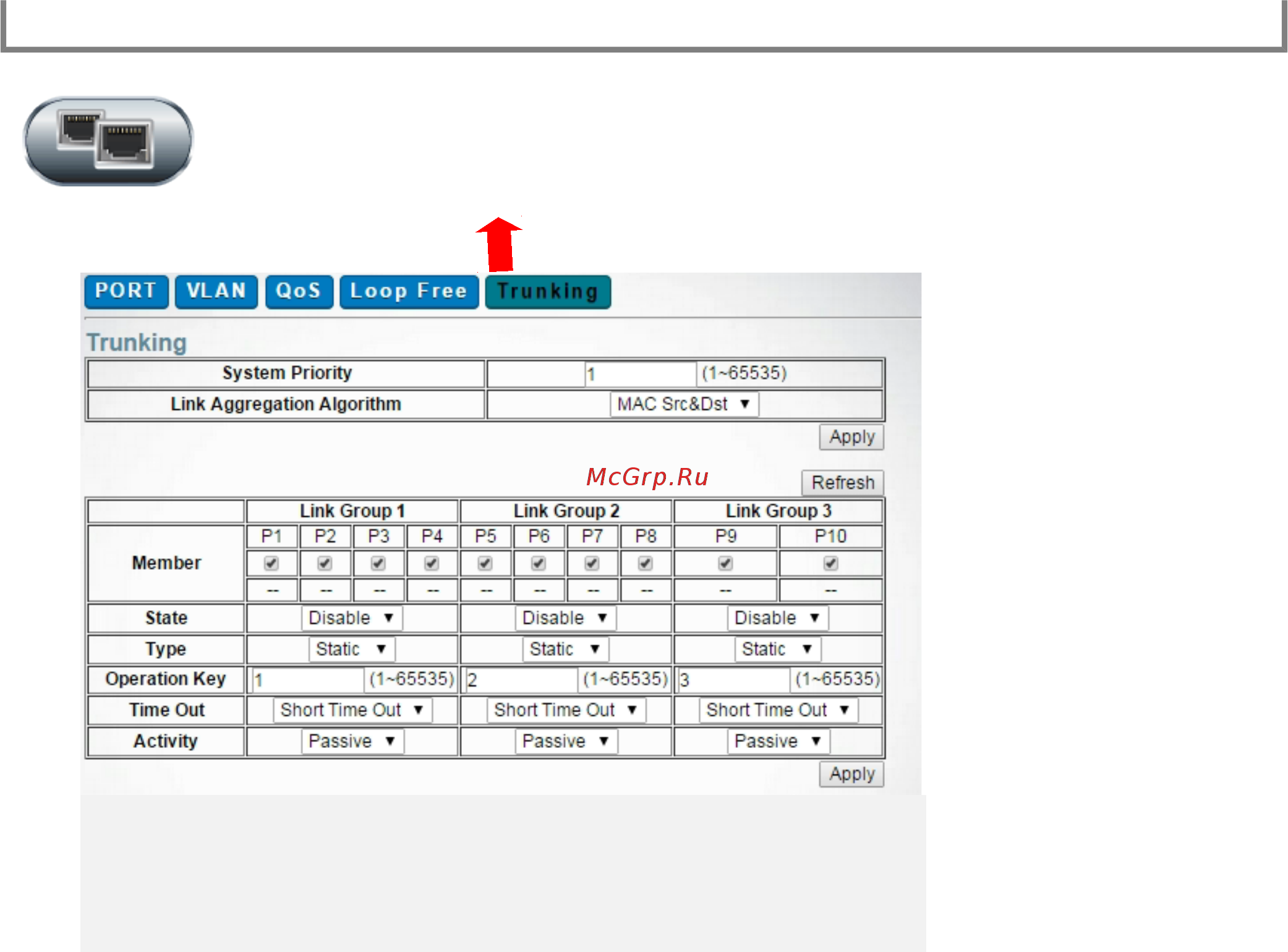

“Fundamentals” -> “Trunking” -> “Link Aggregation Algorithm”

TraKc may be distributed over the member ports of the Trunking Group. The

algorithm to distribute

traKc can be based on “MAC Source Address” or “MAC Source & Destination

Address”.



“Fundamentals” -> “Trunking” -> “Member”

User can set totally 3 trunks. However, member of Trunk Group 1 must come from

port 1 ~ port 4;

member of Trunk Group 2 must come from port 5 ~ port 8; member of Trunk

Group 3 must come from port 9 ~ port 10.



“Fundamentals” -> “Trunking” -> “Type”

Select “Static” or “LACP” protocol to create the truck group.

LACP allows for the automatic detection of links in a Port Trunking Group. Note

that, in one Link Group, if any counter port of link partner does not support LACP,

or LACP handshake does not success on the speci!c member port, packet won’t

be transmitted or received at that port.



“Fundamentals” -> “Trunking” -> “Activity”

Note that, in one Link Group, if any counter port of link partner does

not support LACP, or LACP handshake does not success on the speci(c

member port, packet won’t be transmitted or received at that port.
