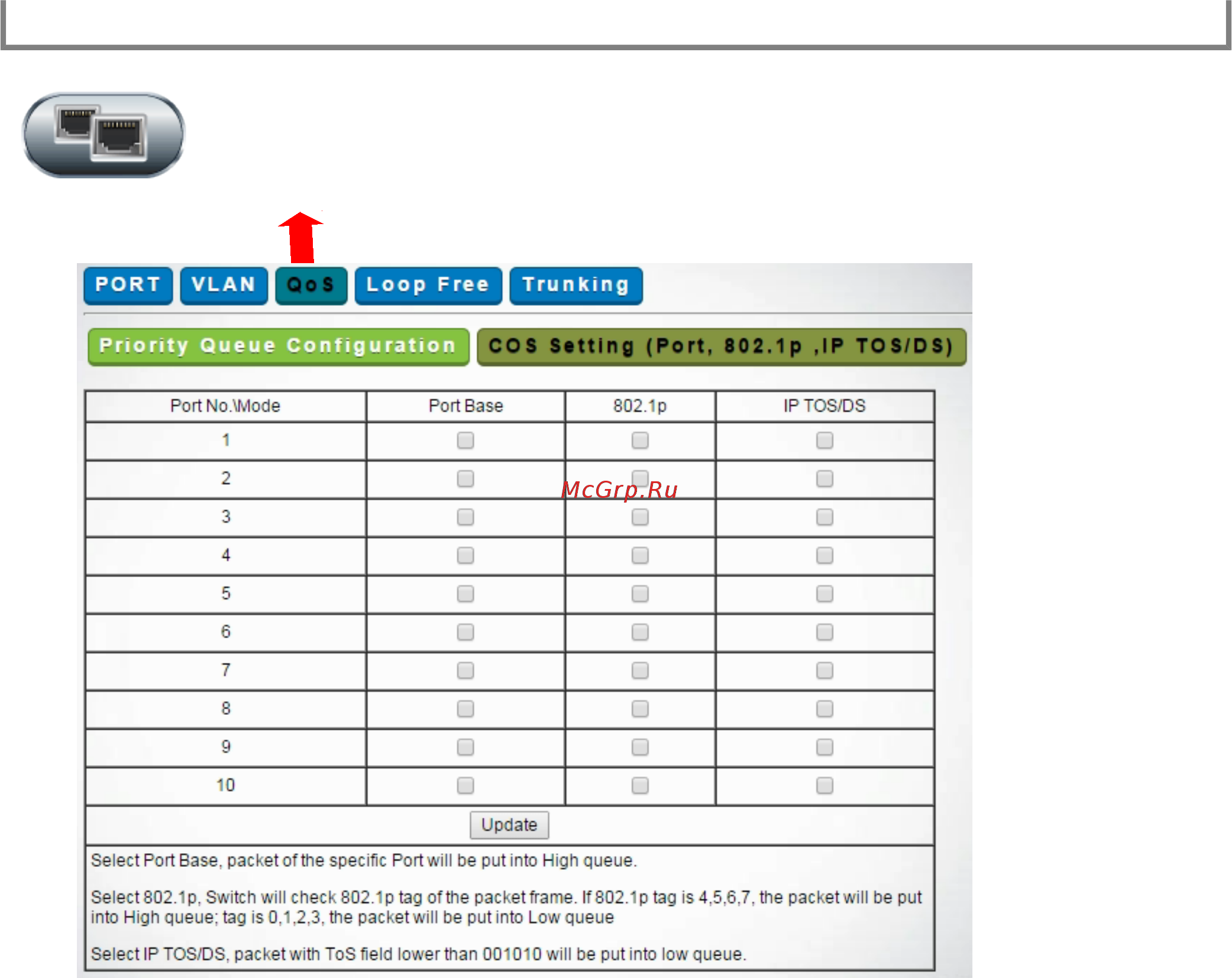

“Fundamentals” -> “QoS” -> “CoS Setting (Port, 802.1p, IP TOS/DS)”

This Switch provides 2 priority queues, High and Low, for packet store-and-

forward.

This Switch provides 3 types of Class of Service, Port based, 802.1p based, and IP

TOS/DS Based.

Check the CoS of a Port will enable the Switch to follow the CoS setting and put

the packet

into High or Low priority queue.

Select Port Base, packet of the speci!c Port will be put into High queue.

Select 802.1p, Switch will check 802.1p tag of the packet frame. If 802.1p tag is

4,5,6,7, the packet

will be put into High queue; tag is 0,1,2,3, the packet will be put into Low queue

Select IP TOS/DS, packet with ToS !eld lower than 001010 will be put into low

queue.
