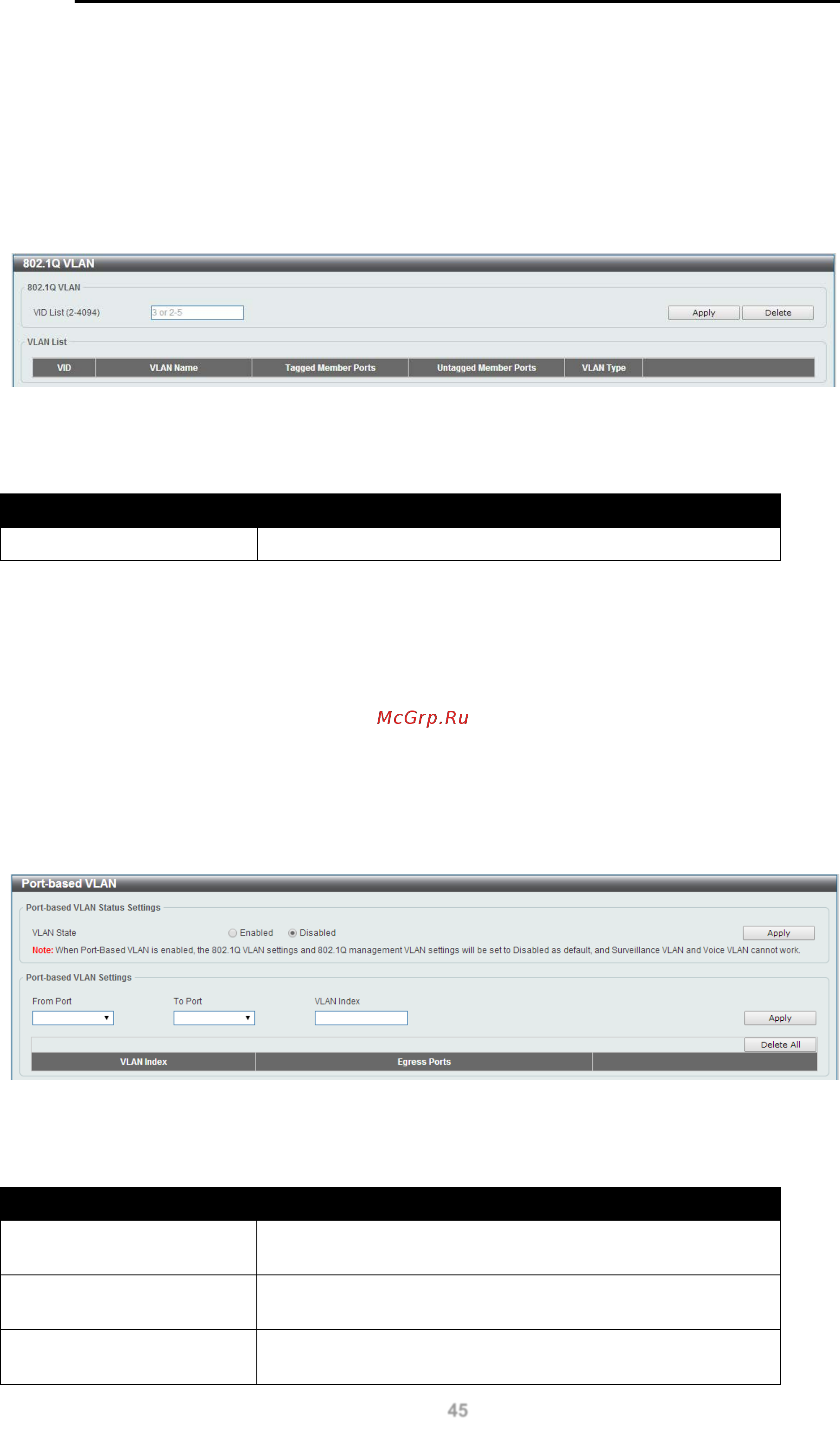

D-Link DGS-1100 MP/MPP Series Switch User Manual
45
VLAN
802.1Q VLAN
This window is used to view and configure the VLAN settings on this switch.
To view the following window, click L2 Features > VLAN > 802.1Q VLAN, as shown below:
Figure 8-6 802.1Q VLAN window
The fields that can be configured for 802.1Q VLAN are described below:
Parameter Description
VID List
Enter the VLAN ID list that will be created here.
Click the Apply button to accept the changes made.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages
exist.
Port-based VLAN
This window is used to configure the asymmetric VLAN function.
To view the following window, click L2 Features > VLAN > Port-based VLAN, as shown below:
Figure 8-7 Asymmetric VLAN window
The fields that can be configured are described below:
Parameter Description
VLAN State
Select this option to enable or disable the Port-based VLAN
function.
From Port / To Port
Select the range of ports that will be used for this
configuration here.
VLAN Index
VLAN Index is a unique number that identifies a particular
VLAN
