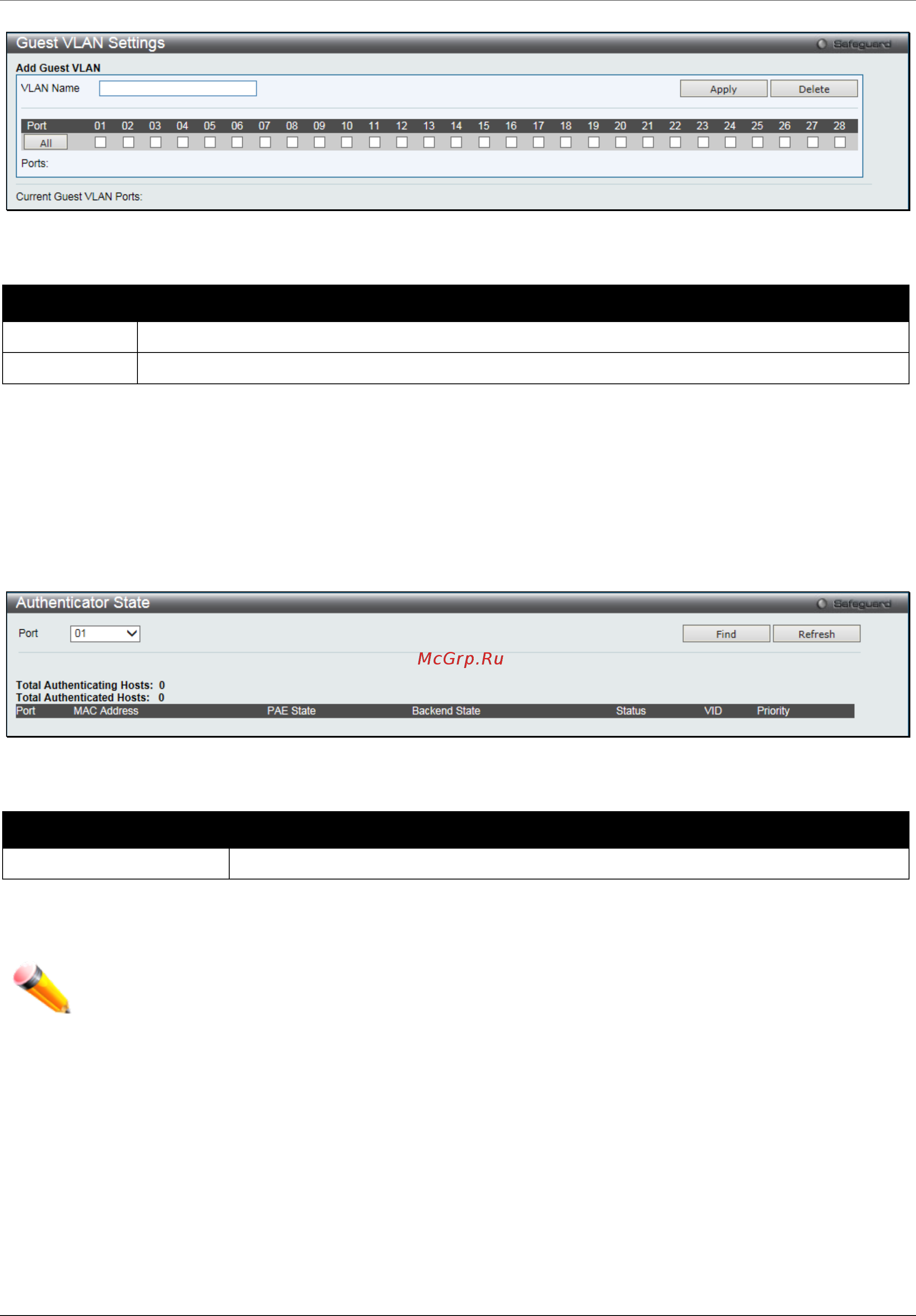

Figure 8-13 Guest VLAN Settings window

The fields that can be configured are described below:

Parameter Description

VLAN Name

Enter the pre-configured VLAN name to create as an 802.1X guest VLAN.

Port

Set the ports to be enabled for the 802.1X guest VLAN. Click the All button to select all the ports.

Click the Apply button to accept the changes made.

Click the Delete button to remove the specific entry based on the information entered.

Authenticator State

This window is used to display the authenticator state.

To view this window, click Security > 802.1X > Authenticator State as shown below:

Figure 8-14 Authenticator State window

The fields that can be configured are described below:

Parameter Description

Port

Select a port to be displayed.

Click the Find button to locate a specific entry based on the information entered.

Click the Refresh button to refresh the display table so that new entries will appear.

NOTE: The user must first globally enable Authentication Mode in the 802.1X Global Settings window

before initializing ports. Information in this window cannot be viewed before enabling the authentication

mode for either Port-based or MAC-based.

Authenticator Statistics

This window is used to display the authenticator statistics information.

To view this window, click Security > 802.1X > Authenticator Statistics as shown below:
