DGS-1510/ME Series Metro Ethernet Switch Web UI Reference Guide
259
DHCP Local Relay Settings
The DHCP local relay settings allows the user to add option 82 into DHCP request packets when the DHCP client gets
an IP address from the same VLAN. If the DHCP local relay settings are not configured, the Switch will flood the
packets to the VLAN. In order to add option 82 into the DHCP request packets, the DHCP local relay settings and the
state of the Global VLAN need to be enabled.
To view this window, click Network Application > DHCP > DHCP Local Relay Settings as shown below:

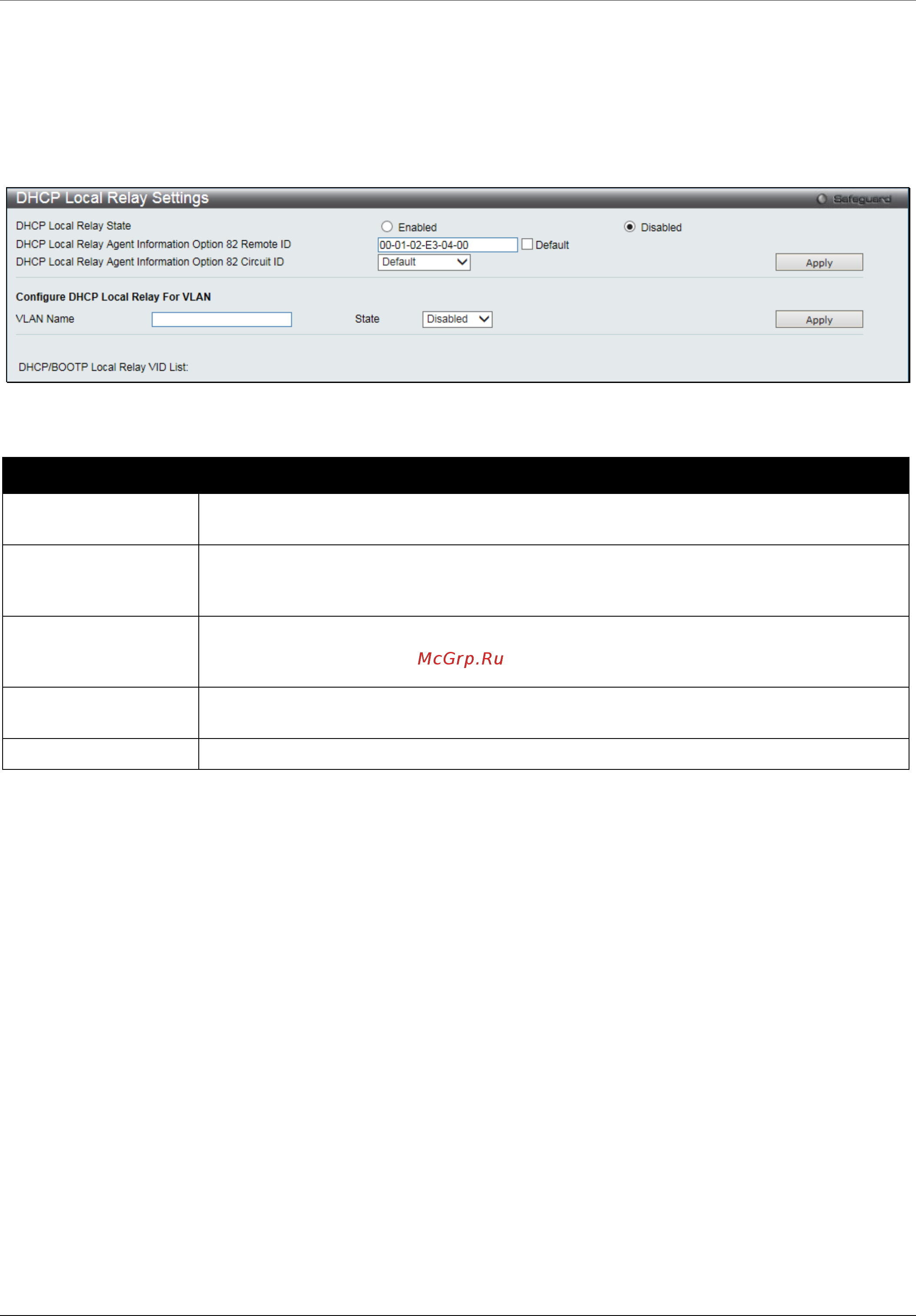

Figure 9-9 DHCP Local Relay Settings window
The fields that can be configured are described below:
Parameter Description
DHCP Local Relay
State
Enable or disable the DHCP Local Relay Global State. The default is Disabled.
DHCP Local Relay
Agent Information
Option 82 Remote ID
Enter a user-defined remote ID, or tick the Default check box to use the Switch’s system
MAC address as the remote ID.
DHCP Local Relay
Agent Information
Option 82 Circuit ID
Enter the DHCP Local Relay Agent Information Option 82 Circuit ID.
VLAN Name
This is the VLAN Name that identifies the VLAN the user wishes to apply the DHCP Local
Relay operation.
State
Enable or disable the configure DHCP Local Relay for VLAN state.
Click the Apply button to accept the changes made for each individual section.
DHCP Local Relay Option 82 Settings
This window is used to configure DHCP local relay each port processing option 82 policy.
To view this window, click Network Application > DHCP > DHCP Local Relay Option 82 Settings as shown below:
