EBS – Specify the Excess Burst Size. The unit is in kilobyte.
Action Conform – This field denotes the green packet flow. Green packet flows may have their
DSCP field rewritten to a value stated in this field. Users may also choose to count green
packets by using counter parameter.
Replace DSCP – Packets that are in the green flow may have their DSCP field rewritten
using this parameter and entering the DSCP value to replace.
Counter – Use this parameter to enable or disable the packet counter for the specified ACL
entry in the green flow.
Exceed – This field denotes the yellow packet flow. Yellow packet flows may have excess
packets permitted through or dropped. Users may replace the DSCP field of these packets by
checking its radio button and entering a new DSCP value in the allotted field.
Counter – Use this parameter to enable or disable the packet counter for the specified ACL
entry in the yellow flow.
Violate – This field denotes the red packet flow. Red packet flows may have excess packets
permitted through or dropped. Users may replace the DSCP field of these packets by
checking its radio button and entering a new DSCP value in the allotted field.
Counter – Use this parameter to enable or disable the packet counter for the specified ACL
entry in the red flow.
Click the <<Back button to discard the changes made and return to the previous page.
Click the Apply button to accept the changes made.
After clicking the View button, the following page will appear:

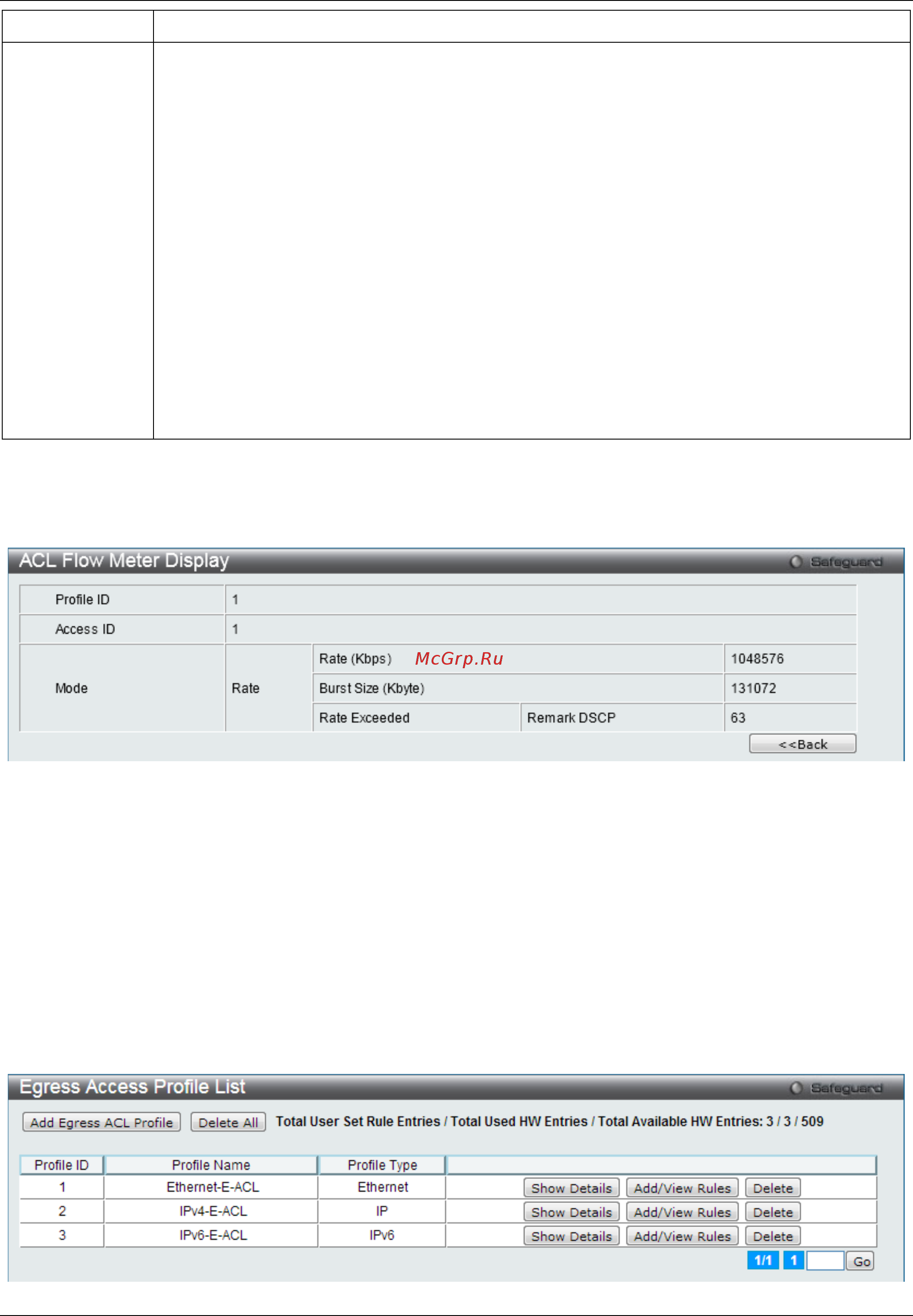

Figure 8-47 ACL Flow meter Display window
Click the <<Back button to return to the previous page.
Egress Access Profile List
Egress ACL performs per-flow processing of packets when they egress the Switch. The Switch supports three
Profile Types, Ethernet ACL, IPv4 ACL, and IPv6 ACL.
To view this window, click ACL > Egress Access Profile List as shown below:
Figure 8-48 Egress Access Profile List window
