Address
End Network
Address
Enter the ending IPv6 network address of the DHCPv6 pool.
Network Address
Enter the IPv6 network address of the DHCPv6 pool.
Assigned Len
Enter the assigned length value here.
Interface Name
Enter the interface name used here.
Domain Name
The domain name is used by client when resolving hostnames with DNS.
DNS Server
Enter the DNS server IPv6 address for this pool. Users may specify up to two DNS
server addresses.
Preferred Lifetime
(60-4294967295)
The amount of time (in seconds) that the IPv6 address, based on the specified pool,
remains in preferred state.
Valid Lifetime (60-
4294967295)
The amount of time (in seconds) that the IPv6 address, based on the specified pool,
remains in valid state.
Click the <<Back button to return to the previous window.
Click the Apply button to accept the changes made.
DHCPv6 Server Dynamic Binding
This window is used to show the DHCPv6 dynamic binding information.
To view this window, click Network Application > DHCP > DHCPv6 Server > DHCPv6 Server Dynamic Binding
as shown below:

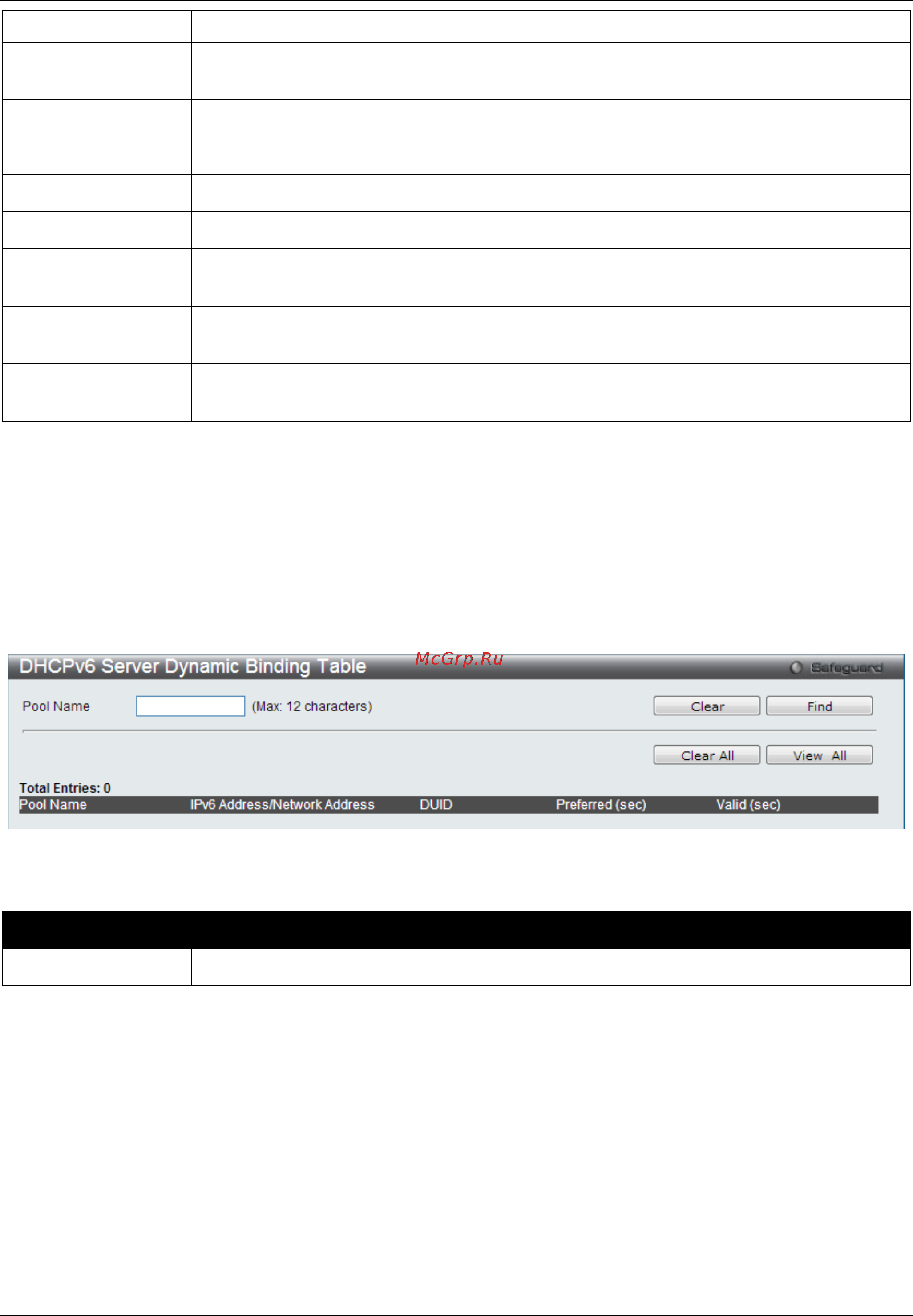

Figure 10-27 DHCPv6 Server Dynamic Binding Table window
The fields that can be configured are described below:
Parameter Description
Pool Name
Enter the name of the DHCPv6 pool for which to view dynamic binding information.
Click the Clear button to clear all the information entered in the fields.
Click the Find button to locate a specific entry based on the information entered.
Click the Clear All button to remove all the entries listed in the table.
Click the View All button to display all the existing entries.
DHCPv6 Server Interface Settings
This window is used to display and configure the DHCPv6 Server state per interface
To view this window, click Network Application > DHCP > DHCPv6 Server > DHCPv6 Server Interface Settings
as shown below:
