5.2 DPU 20 Printer Handling

The printer is driven and controlled automatically by the control unit,

while the autoclave performs a sterilization program.

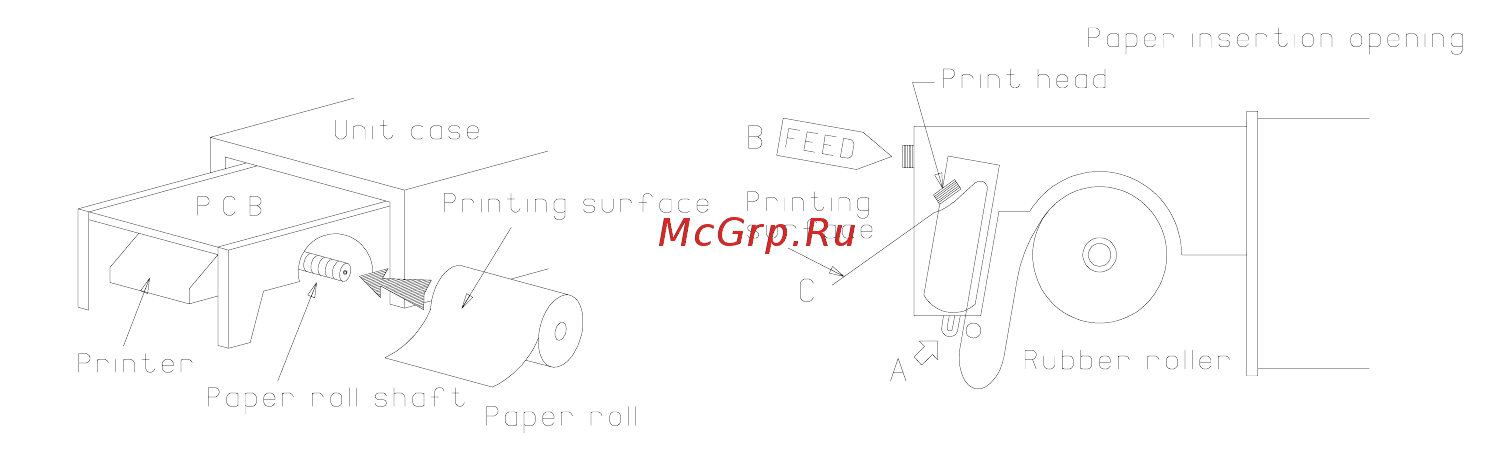

Figure 1 Figure 2

To set the paper roll in the printer perform the following steps:

5.2.1 Gently push the clips for removing the front panel, remove the

panel and pull out the printer gently.

5.2.2 Set the paper roll on the shaft (See Figure 1). Since the outer

and inner surfaces of the paper are different set the roll so that

the printing surface is the outer.

5.2.3 Gently push the paper face down into insertion opening (A) in

Figure 2. Keep pressing the feed switch (B) until the paper

comes out from the print head (C).

5.2.4 When the paper emerges from the print head, insert it in the

paper cutter (the slot in the front panel) and reassemble the

front panel on the unit.

The paper roll is set inside the unit and the printer is ready for use..

NOTE: If the paper is not pulled in by the rollers even when you press

the feed switch (B) push the paper in.

5.2.5 To ensure a reliable operation of the printer perform the

following:

5.2.5.1 Turn the main switch to the OFF position.

5.2.5.2 Turn the main switch to the ON position; press the

feed switch at the same time. Verify that the printer

performs an operation test by printing all the built-in

characters

The following precautions have to be taken ensuring the proper

operation of the printer:

♦ Avoid contact between the paper and the hot parts of the autoclave,

as the paper will be blackened.

♦ Do not pull out the paper roll from the paper insertion opening.

♦ Use only the 58mm. wide thermal paper rolls, supplied by your

dealer.
