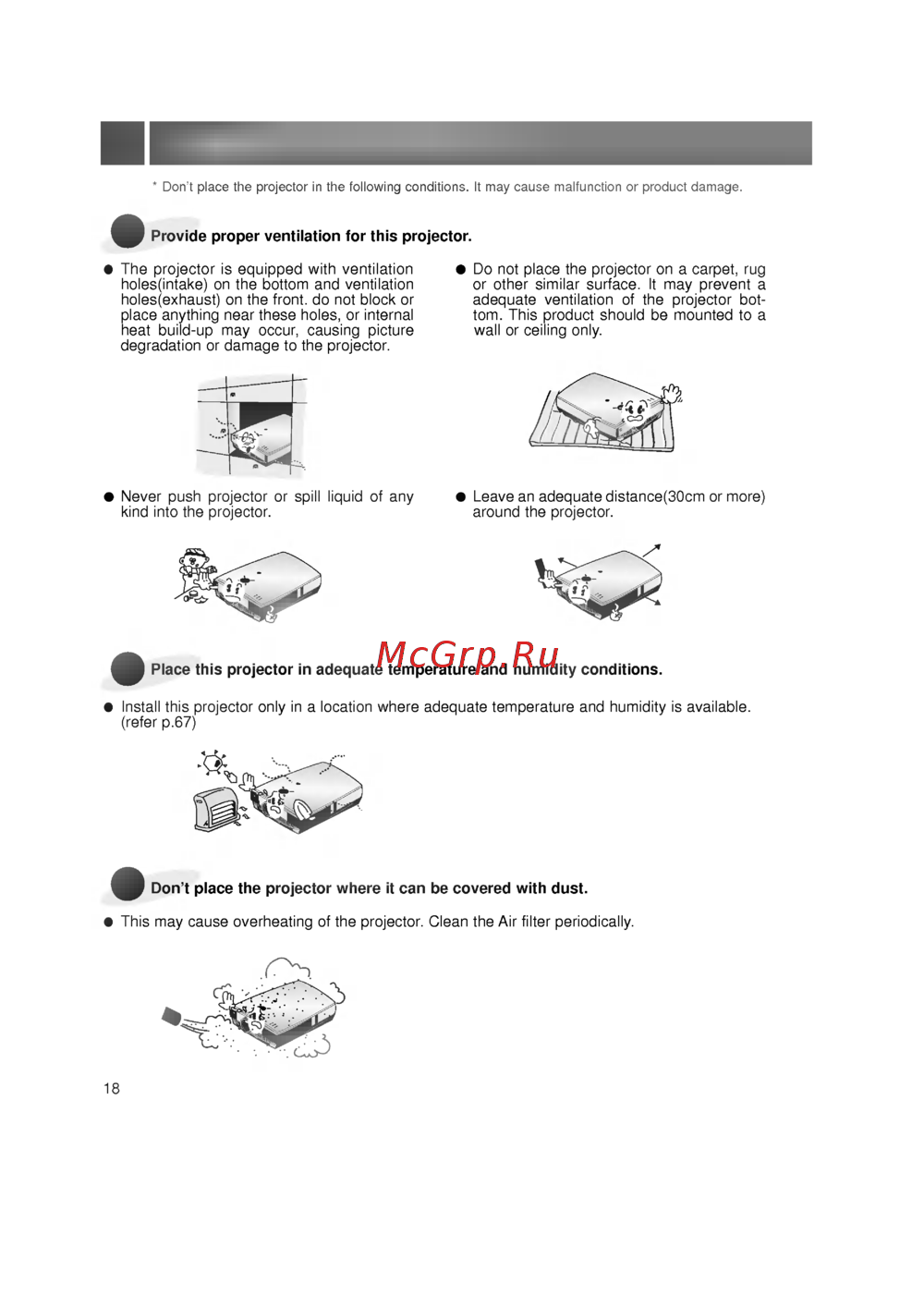

Don t place the projector in the following conditions It may cause malfunction or product damage Provide proper ventilation for this projector The projector is equipped with ventilation holes intake on the bottom and ventilation holes exhaust on the front do not block or place anything near these holes or internal heat build up may occur causing picture degradation or damage to the projector Never push projector or spill liquid of any kind into the projector Do not place the projector on a carpet rug or other similar surface It may prevent a adequate ventilation of the projector bot tom This product should be mounted to a wall or ceiling only Leave an adequate distance 30cm or more around the projector Place this projector in adequate temperature and humidity conditions Install this projector only in a location where adequate temperature and humidity is available refer p 67 Don t place the projector where it can be covered with dust This may cause overheating of the projector Clean the Air filter periodically 18
